• Model NO.：PHG-3081
• Origin：Shanghai
• HS Code：9027809900
• Production Capacity：1000piece,Month

Basic Info.

Model NO. PHG-3081 Origin Shanghai HS Code 9027809900 Production Capacity 1000piece/Month

Product Description

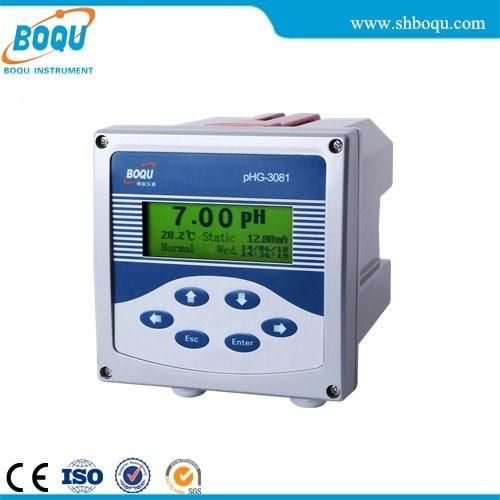

PHG-3081 Industrial PH Meter

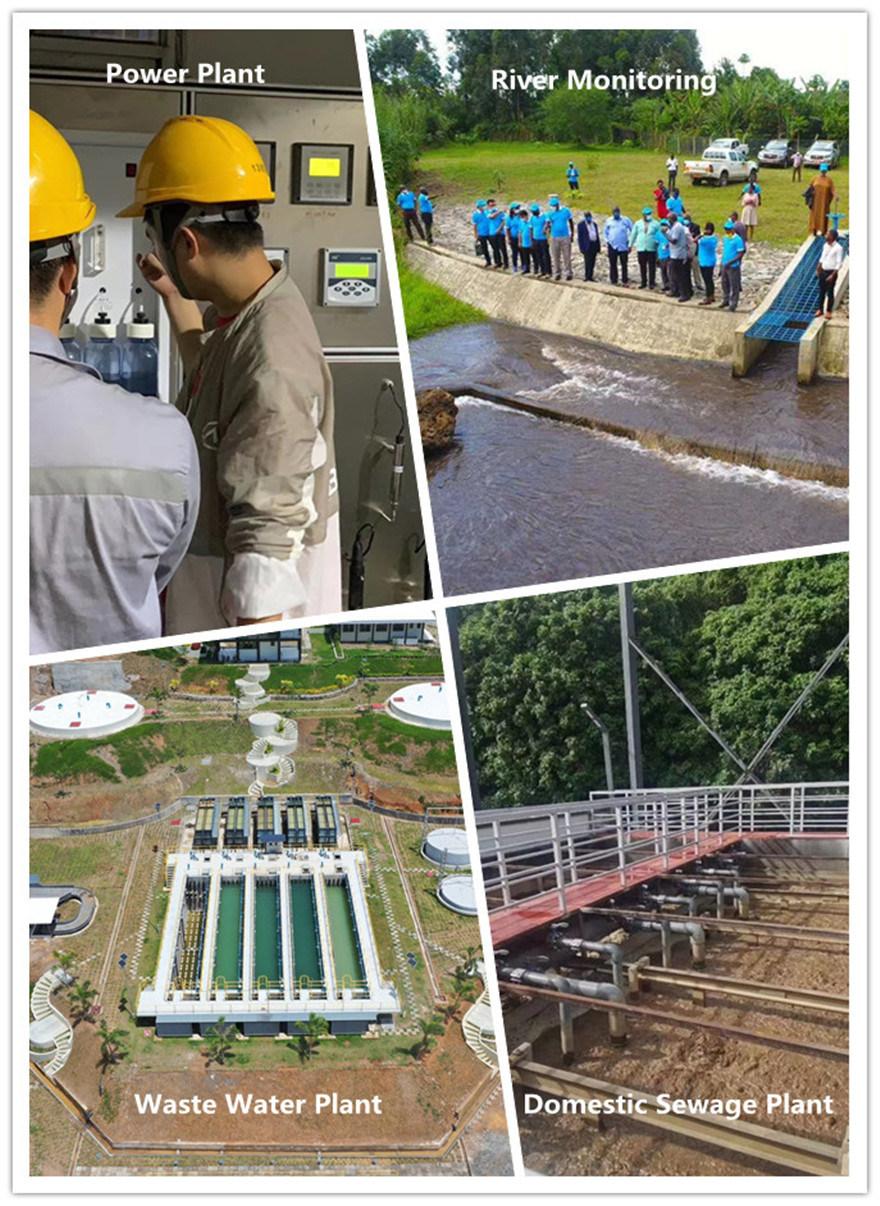

PHG-3081 industrial pH meter is our latest generation of microprocessor-based instrument, with English display, menu operation, a high intelligent, multi-function, high measurement performance, environmental adaptability and other characteristics. It is a highly intelligent online continuous monitoring instrument, integrate with the sensor and the second meter. Can be equipped with three composite or two composite electrodes to meet a variety of sites. Can be widely used for continuous monitoring of PH value for thermal power, chemical fertilizer, metallurgy, environmental protection, pharmaceutical, biochemical, food and water and other solution.

Features:

New design, Aluminium shell, Metal textureIntelligent: This industrial PH meter adopts high-precision AD conversion and single chip microcomputerprocessing technologies and can be used for the measurement of the PH values and temperature, automatic temperature compensation and self-checking.Reliability: All the components are arranged on one circuit board. No complicated functional switch, adjustingknob or potentiometer arranged on this instrument.Double high impedance input: The latest components are adopted; The impedance of the double high impedanceinput can reach as high as l012Ω. It has strong interference immunity.Solution grounding: This can eliminate all the disturbance of the ground circuit. Isolated current output: Optoelectronic isolating technology is adopted. This meter has strong interferenceimmunity and the capacity of long-distance transmission.  Communication interface: it can be easily connected to a computer to perform monitoring and communication. Automatic temperature compensation: It performs automatic temperature compensation when the temperature iswithin the range of 0~99.9ºC.Water proof and dust-proof design: Its protection grade is IP54. It is applicable for outdoor use. Display, menu and notepad: It adopts menu operation, which is like that in a computer. It can be easilyoperated only according to the prompts and without guidance of the operation manual. Multi-parameter display:
The PH values, input mV values (or output current values), temperature, time and statuscan be displayed on the screen at the same time.




Technical Indexes:

1. Measuring range: PH value: 0~14.00pH; division value: 0.01pH     Electric potential value: ± 1999.9mV; division value: 0.1mV Temperature: 0~99.9 º C; division value: 0.1º C 2. Range for automatic temperature compensation: 0~99.9 º C, with 25º C  as the reference temperature, (0~150º C   for Option) 3. Water sample tested: 0~99.9 º C, 0.6Mpa 4. Automatic temperature compensation error of the electronic unit: ± 0 03pH 5. Repeatability error of the electronic unit: ± 0.02pH 6. Stability: ± 0.02pH/24h 7. Input impedance: ≥ 1x1012Ω 8. Clock accuracy: ± 1 minute/month 9. Isolated current output: 0 ~ 10mA(load < 1 5kΩ ), 4 ~ 20mA(load < 750Ω ) 10. Output current error: ≤ ± l % FS 11. The data storage capacity: 1 month (1 point/5 minutes) 12. High and low alarm relays: AC 220V, 3A 13. Communication interface: RS485 or 232 (optional) 14. Power supply: AC 220V± 22V, 50Hz± 1Hz, 24VDC(optional) 15. Protection grade: IP54, Alluminium shell for outdoor use 16. Overall dimension: 146 (length) x 146 (width) x 150 (depth) mm; dimension of the hole: 138 x 138mm 17. Working conditions: ambient temperature: 0~60 º C; relative humidity < 85 % 18. It can be equipped with a 3-in-1 or 2-in-1 electrode.

FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: We cann't offer the sample

Q: What is your terms of payment ?
A: 100% T/T in advance ,balance before shippment.
