IEC 60112 Proof and Comparative Tracking Indices Test Instrument

Chongqing Advanced Technology Co., Ltd.
  • After-sales Service：Response in 12 Hours
  • Warranty：12 Months
  • Test Standard：IEC 60112, ASTM D3638-12,UL 746A
  • Material of Electrode Tip：Platinum Metal (Platinum)
  • Electrode Pressure：1.0 ±0.05n
  • Size of Combustion Chamber：1200mm * 600mm*1200mm

Base Info

  • Model NO.：AIC-60112
  • Electrode Distance：4.0mm ± 0.01mm
  • Electrode Voltage：100 ~ 600V (48 ~ 60Hz) Adjustable
  • Dropping Height：30 ~ 40mm Adjustable
  • Dropping Size：44 ~ 55 Drops , 1cm3 Adjustable
  • Delivery Time：30 Days
  • Test Object：Solid Insulating Materials
  • Control：PLC
  • Display：LCD
  • Color：White
  • Transport Package：Plywood Case
  • Specification：Stainless steel
  • Trademark：AI
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：20 Sets,Month

Description

1Electrode materialelectrode tip - platinum metal (platinum)2Electrode pressure1.0 ± 0.05N3Electrode distance4.0mm ± 0.01mm, the angle 60 ° ± 54Electrode voltage100 ~ 600V (48 ~ 60HZ) adjustable, short-circuit current 1.0 ± 0.1A of less than 10%5Dropping height30 ~ 40mm adjustable6Dropping size44 ~ 55 drops / 1cm3 adjustable7Dropping time30s ± 5s,8Dropping times0 ~ 9999 times available9Leakage judgmentwhen loop current is greater than 0.5A and maintaining for 2 seconds,the relay cut off the current and result indicates sample failed10Testing processautomatic control, independent ventilation11Applicatable standardIEC60112, ASTM D3638-12,UL746A12Inside Volume0.1 m³ (Can be customized 0.5 m³ or 0.75 m³)13Overal dimension630mm width x390mm depth x750mm height
Factory overview
IEC 60112 Proof and Comparative Tracking Indices Test Instrument
Customer Feedback

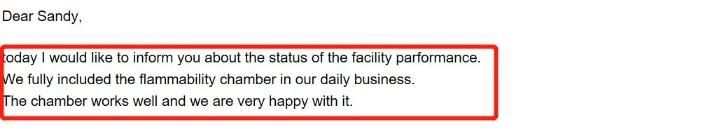

Germany
IEC 60112 Proof and Comparative Tracking Indices Test Instrument

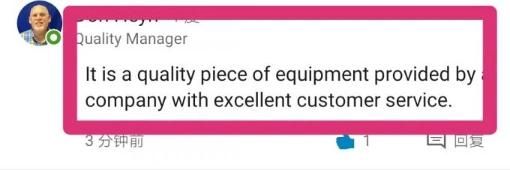

USA
IEC 60112 Proof and Comparative Tracking Indices Test Instrument
Transporation
IEC 60112 Proof and Comparative Tracking Indices Test Instrument
FAQ
1.What's the delivery time?
About 30 working days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
