Analysis Instrument

Home > Product > Other Analysis Instruments

Touch Screen Tester for Viscosity Ndj-1t

Chongqing TOP Oil Purifier Co., Ltd.
  • After-sales Service：Provided
  • Warranty：1 Year
  • Function：Test Viscosity for Petroleum Products
  • Measuring Range：0.6-2 Million MPa.S
  • Measurement Error：5-Inch Color Touch Screen
  • Repetitive Error：±0.5% (Newtonian Liquid)

Base Info

  • Model NO.：NDJ-1T
  • Show Shear Response / Shear Rate：Standard Configuration
  • Timing Function：Standard Configuration
  • Transport Package：Standard Export Wooden Case
  • Trademark：Chongqing TOP
  • Origin：Chongqing, China
  • HS Code：9026809000
  • Production Capacity：100,Month

Description


Touch Screen Tester for Viscosity Ndj-1t
FOCUS ON OIL FILTRATION SYSTEM OVER 20 YEARS

Recycling your used oil reduces pollution and protecting our environment.
Conserving a valuable resource and getting paid for it.

                                                                                                                                                         Chongqing TOP Oil Purifier Co.,Ltd.
Product Description

Product Show:

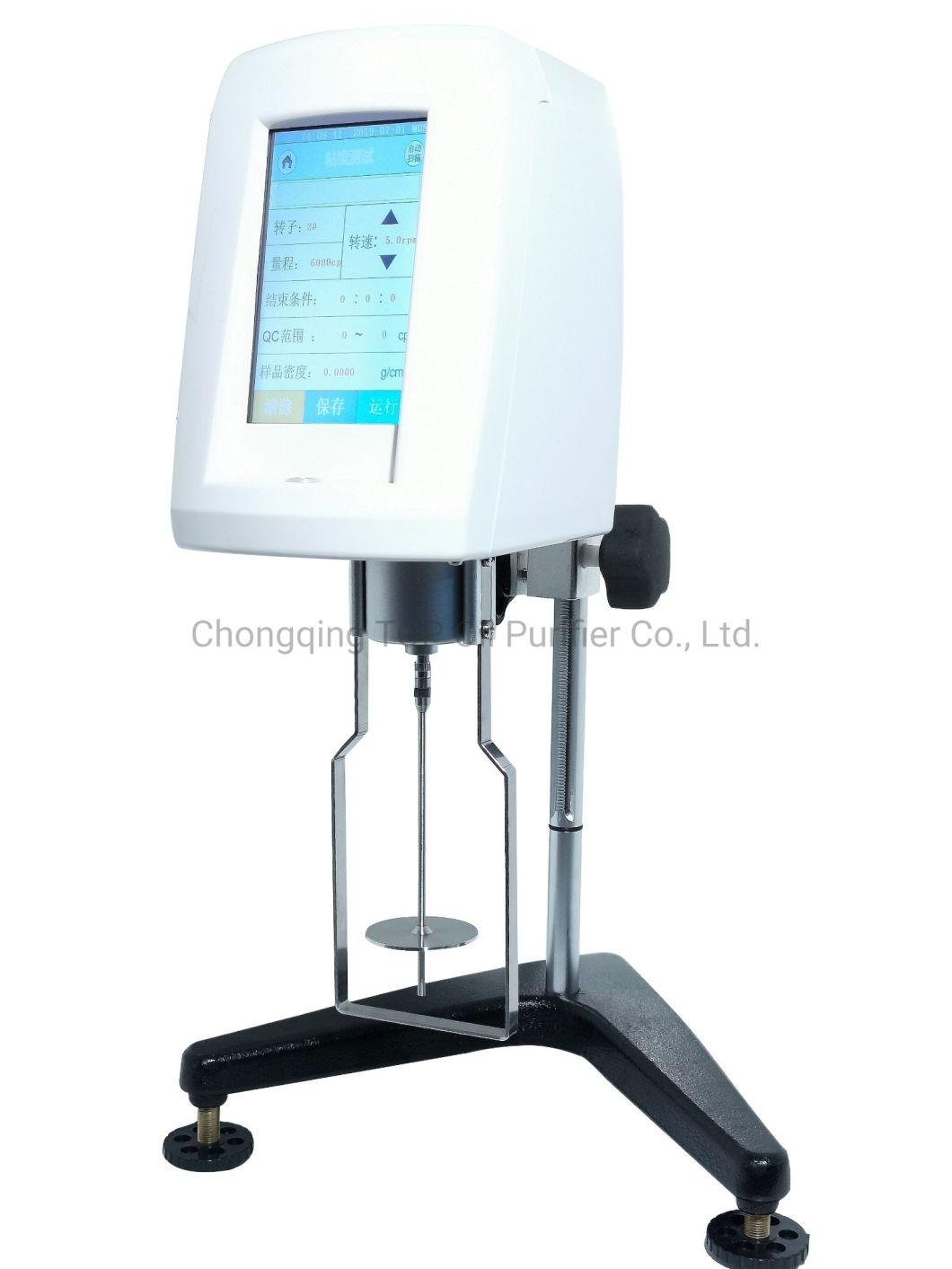

Touch screen Tester for Viscosity NDJ-1T
Touch Screen Tester for Viscosity Ndj-1t
Application:
Perfect integration of touch-screen technology, fast, accurate, easy to measure viscosity. Stepless debugging, can measure super high viscosity of the sample.
Self-built 30 groups of test programs, save 30 test data. The 5-inch large color touch screen can display various parameters and working conditions comprehensively and vividly. It has the obvious advantages of multiple measurement parameters, rich display content, convenient operation, intuitive reading, high measurement accuracy, stable speed, strong anti-interference performance, display of shear rate and viscosity curve, wide working voltage, etc. It can replace similar imported instruments.Sample dosageRotor 1-4: Range 10-2M
300 - 400ml
ULR: Range 0.6-1000, 21ml
Rotor 18:Range 3-10K,7ml
Rotor 25:480-1.60M; 9ml
Rotor 31:30-100K; 10.5ml
Rotor 34:20-200K; 11ml
  K = 1000;  M = 1000000measurement erro±1% (Newtonian liquid)repetitive error±0.5% (Newtonian liquid)Show shear response / shear ratestandard configurationTiming functionstandard configurationReal-time display Viscosity curveTemperature-time curve
Viscosity-time curve
(The rheological curves of shear rate and viscosity can be displayed by optional data processing software)kinematic viscosityDensity of samples to be enteredTemperature measurement functionStandard temperature probe interface (optional temperature probe)Automatic Scanning FunctionAutomatically scan and recommend the preferred combination of rotor and rotation speedMaximum measurement rangeAutomatic display of selected combinations of rotor and rotation speed. Measurable viscosity rangeSelf-built Measuring ProceduresUp to 30 groups (including rotor, speed, temperature, time, etc.)Preservation of measurementsUp to 30 sets of data (including viscosity, temperature, rotor, speed, shear rate, shear stress, time, density, kinematic viscosity, etc.)printData and curves can be printed (print interface is standard, printer is optional)data output interfaceRS232thermostatic componentsOptions (including special thermostatic bath and thermostat cup for various viscometers)working power supplyWide voltage operation(110V / 60Hz or 220V / 50Hz)dimension300 × 300 × 450(mm)

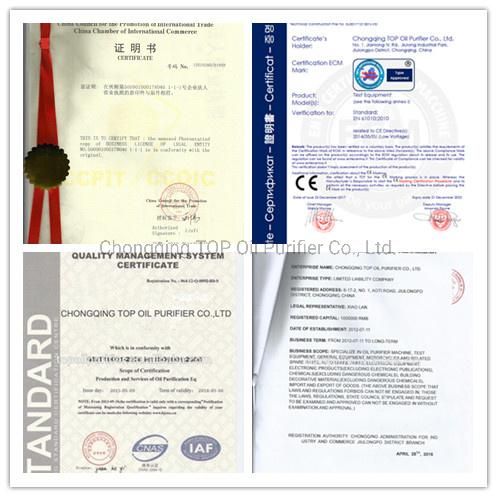

Certificate:
Touch Screen Tester for Viscosity Ndj-1t

Payment Terms:MOQ1 SetTrade TermsEXW, FOB, CIF, CFRPayment TermsT/T, L/CPort of LoadingAny Port of ChinaPacking MethodInternaional Standard Wooden CaseTransportation MethodBy Sea, By Land, By Air, By ExpressSupply Capability100 Sets/Month
After-sale Service:
* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.

Company Profile
Our Company:Touch Screen Tester for Viscosity Ndj-1t

Chongqing TOP Oil Purifier Co., Ltd

Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. Our company consists of departments respectively for technological development, machinery manufacture, instrument manufacture and quality control etc.
Exhibition:

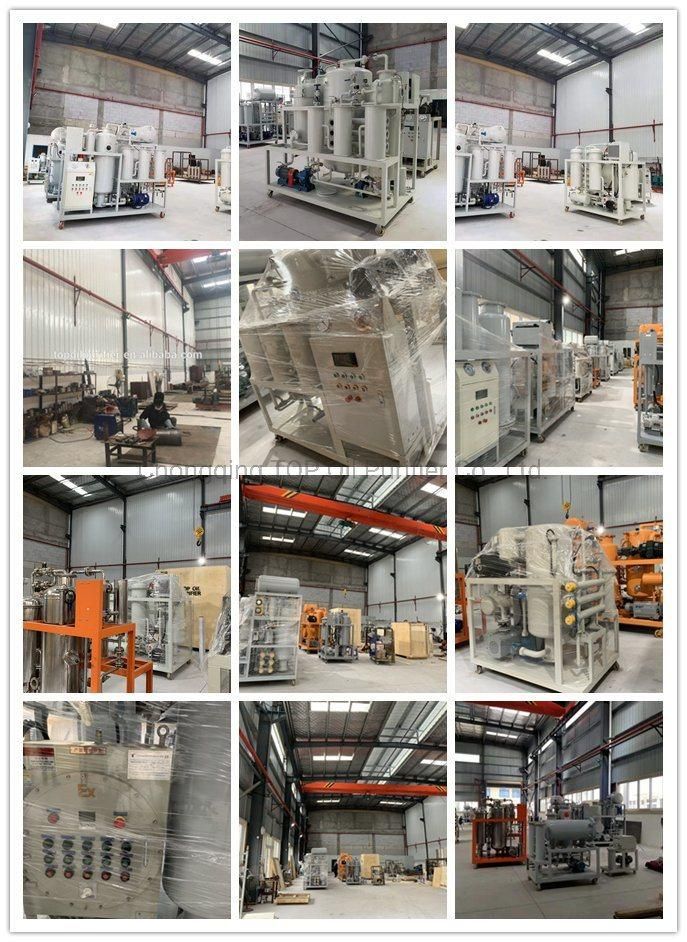

Touch Screen Tester for Viscosity Ndj-1tOur Factory:
Touch Screen Tester for Viscosity Ndj-1tWELCOME YOUR INQUIRY
