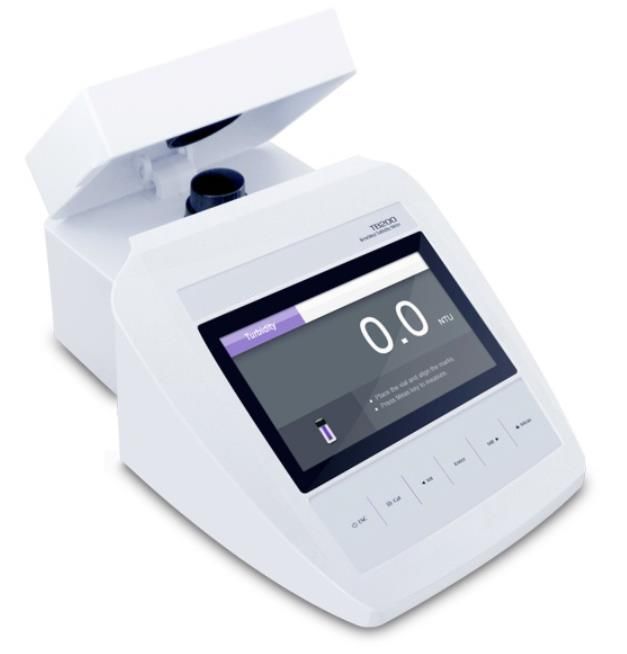

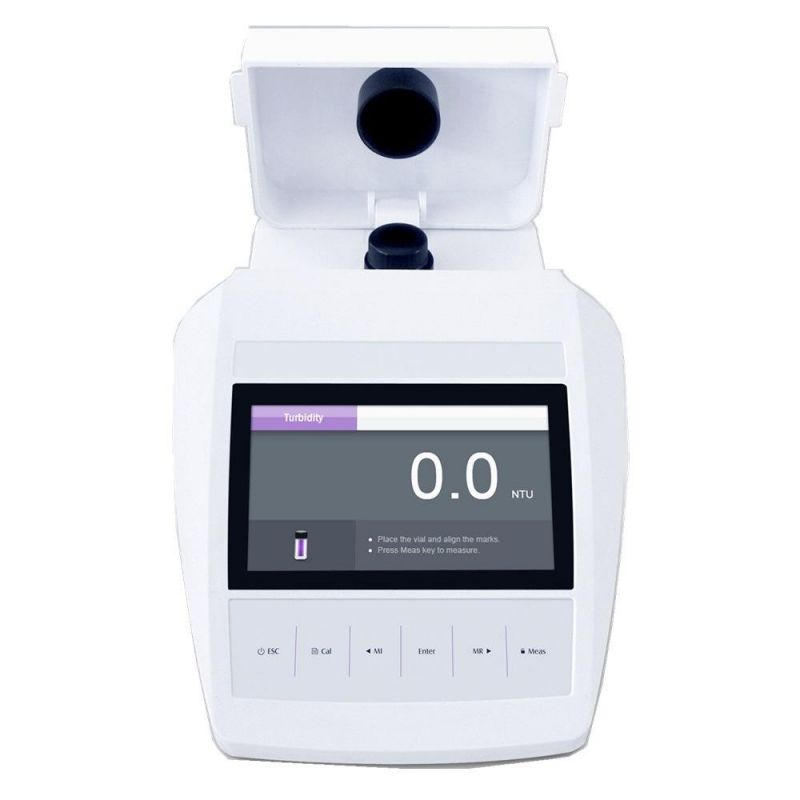

Digital Lab Benchtop Water Turbidity Test Meter with CE, ISO
Shanghai Lianhua Industrial Co., Ltd.- After-sales Service：on-Line Support
- Warranty：One Year
- Application：Water Turbidity Testing
- Detect Time：10 Second
- Measurement Range：0 to 2000 Ntu
- Accuracy：3%
Base Info
- Model NO.：200
- Method：ISO 7027
- Transport Package：Express, Carton
- Specification：250*177*96mm
- Trademark：Lianhua or no logo
- Origin：China
- HS Code：9031809090
- Production Capacity：50000 Units , Year
Description
1 >Product Introduction
Multiparameter benchtop turbidity meter with the Total Suspended Solids measurement mode, 2 to 7 points calibration, selectable 4 turbidity units. The meter is suitable for laboratory use.
2 >Functional characteristics
• Multiparameter benchtop turbidity meter is equipped with a 4.5 inches TFT display.
• 2 to 7 points calibration using the Formazin Standards.
• Selectable 4 turbidity units, including the NTU, FNU, EBC and ASBC.
• TSS conversion factor ensures the accurate measurement of the total suspended solids.
• Auto-Read function senses and locks a stable reading.
• Setup menu allows setting the date and time, measurement mode, resolution, auto-power off,
etc.
• Password protection prevents the unauthorized calibration and settings.
• Expanded memory stores or recalls up to 200 data sets.
• Reset function automatically resumes all settings back to the factory defaults.
• USB communication interface is easy to transfer data to PC.
Applications:
• Industrial wastewater plants
• Municipal water and other industrial applications
3 >Technical Parameters
| Model | 200 |
| Turbidity | |
| Range | 0 to 2000 NTU, 0 to 500 EBC, 0 to 9999 ASBC |
| Resolution | 0.01 (0 to 99 NTU), 0.1 (100 to 999 NTU), 1 (1000 to 2000 NTU) |
| Accuracy | ±2% of reading (0~500 NTU), ±3% of reading (501~2000 NTU) |
| Calibration Points | 2 to 7 points |
| Calibration Standards | 0.02, 10, 200, 500, 1000, 1500, 2000 NTU |
| TSS | |
| Range | Deponding on the TSS conversion factor |
| Resolution | 0.1, 1 |
| Accuracy | ±3% of reading |
| General Specifications | |
| Light Source | Infrared-emitting diode (850nm wavelength) |
| Detector | Silicon photodiode |
| Stray Light | <0.02 NTU |
| Sample Volume | 30ml |
| Memory | Stores up to 200 data sets |
| Output | USB communication interface |
| Display | 4.5" TFT LCD |
| Power | DC12V, using AC adapter, 220V/50Hz |
| Dimensions | 250(L)×177(W)×96(H)mm |
| Weight | 1.2kg |
