• Model NO.：SPS20-3000Z
• Power Supply：220V
• Weight：0-50kg
• Certification：CE
• Customized：Customized
• Frequency：20kHz
• Power：2000watt
• Temperature：300 Degree Centigrade
• Pressure：35 MPa
• Intensity of Sound：>60 W,Cm2
• Material of Probe：Titanium Alloy
• Generator：Digital Type
• Delivery Time：30 Working Days
• Transport Package：Wooden Case
• Specification：215x310x720mm
• Trademark：SP
• Origin：China
• HS Code：8543709990
• Production Capacity：500pieces,Month

Basic Info.

Model NO. SPS20-3000Z Power Supply 220V Weight 0-50kg Certification CE Customized Customized Frequency 20kHz Power 2000watt Temperature 300 Degree Centigrade Pressure 35 MPa Intensity of Sound >60 W/Cm2 Material of Probe Titanium Alloy Generator Digital Type Delivery Time 30 Working Days Transport Package Wooden Case Specification 215x310x720mm Trademark SP Origin China HS Code 8543709990 Production Capacity 500pieces/Month

Product Description

Description:

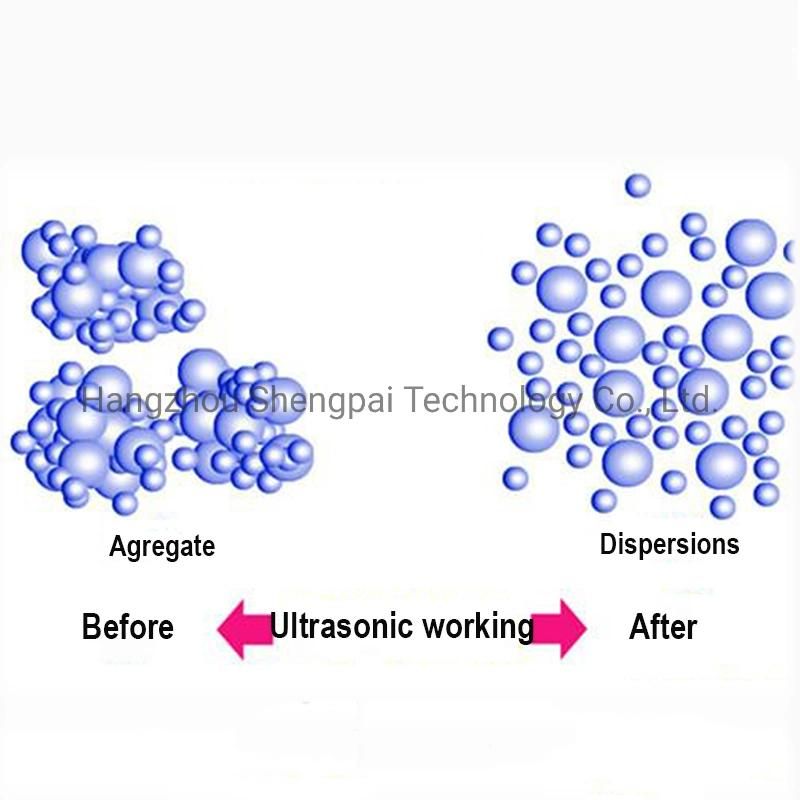

Ultrasonic homogenization is the use of ultrasonic cavitation in liquids and other physical effects to achieve homogenization. Physical action refers to the formation of an effective agitation and flow disrupting medium in the liquid, the pulverizing of the particles in the liquid, mainly the collision between the liquid, the micro phase flow and the shock wave leading to changes in the surface morphology of the particles.

Cavitation refers to the generation of holes (small bubbles) in the weaker part of the liquid under the action of ultrasonic waves. The small bubbles pulsate with the ultrasonic waves, and the holes collapse in one sound cycle.




Application Field:1)Ultrasonic treatment of chemical extraction, biodiesel production, organic synthesis, treatment of microorganisms, degradation of toxic organic pollutants, chemical reaction rate and yield, catalytic efficiency of catalysts, biodegradation treatment, ultrasonic anti-scaling, biological cell comminution, dispersion and coagulation A local small environment that is very beneficial to the reaction process can greatly increase the reaction rate and reduce the reaction conditions.

2)Comparison of effects in various application areas

Application field	Effect and Impact
Chinese medicine extraction	Adding ultrasound equipment can increase the leaching rate by 30-50%
Ballast water treatment	Cooperate with ultraviolet light to assist in killing algae
Food sterilization	Adding an ultrasound system to the original process can reduce colony count by 30%
Emulsification	Instead of high shear emulsification, emulsified particle size 1um
High pressure high temperature container cleaning	Thoroughly solve the problem of filter, silt, blockage, etc.
Fine particle dispersion	Fine particles agglomerated in the dispersion
Biodiesel production	Adding this ultrasound system to the original device can increase the original output by about 30%.
Oil industry application	Crude oil dehydration, crude oil demulsification
Biochemistry	Cell disruption


Parameters:

Model	SPS20-500S	SPS20-1000S	SPS20-1000	SPS20-2000	SPS20-3000	SPS20-3000Z
Frequency	20Khz	20Khz	20Khz	20Khz	20Khz	20Khz
Power	500 W	1000 W	1000 W	2000W	3000W	3000 W
Voltage	220V	220V	220V	220V	220V	220V
Pressure	Normal	Normal	Normal	35 MPa	35 MPa	35 MPa
Intensity of sound	>10 W/cm²	>10 W/cm²	>10 W/cm²	>40 W/cm²	>60 W/cm²	>60 W/cm²
Processing capacity (L/H)	0.5-2.0	1.0-4.0	5.0	20.0	50.0	100.0
Material of probe	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy	Titanium Alloy
Generator	Digital type	Digital type	Digital type	Digital type	Digital type	Digital type

Performance advantages:
Adopt intelligent control technology to achieve stable amplitude output of ultrasonic amplitude, ensuring uniform and stable cavitation effectAdopt automatic frequency matching mode to ensure that the ultrasonic transducer works at the best time every time.The system has two working modes, continuous and intermittent. The system can set the ultrasonic working time independently and facilitate the experimental analysis.The system uses a focused design,that have high energy density, which significantly improves the efficiency of the experiment.The system has a variety of protection mechanisms to ensure stable operation and long life.The system uses a 5V fan,that have high safety factor.







FAQ:
1. Do you have it in stock?
We only have common products in stock but not for the nonstandard products.Because all the products need make based on customers' different requirements.

2. Could you advise to us the design based on our special requirements or based on our object samples?
Of course, we can do. Please tell us your idea or your application.
If you have sample object, send it to us or send detail pictures.

3.How long do you make the order product?
Common products for 7days, big qty and none standard products for 20days.

4. Do you have operating manual?
Of course, we will put it with the goods together.

5. How about the quality?
We have export to many other customers from all over the world, the feed back is good,quality is the first of our company.

6. Could you do OEM?
Yes, of course. We can produce according customers' requirement, just send us your requirements and design of drawing and sample.

7. Could we as your agent?
Of course. We are looking for sole agent in Country who have the willing to cooperate with us for long business term.

8. Payment:100%T/T in advance for small order. 70%T/T in advance as deposit, 30%T/T paid before shipment

9. Delivery?
1-2 units we could send by EXPRESS(DHL, UPS, FEDEX, TNT, EMS), heavy weight more than 50kg,we suggest to use sea freight LCL or by air.

10. Warranty:
One years Warranty with none human damage. After warranty time, factory will repair fix it or send the new parts on cost price. We can produce according customers'requirements, OEM is available, pls send me inquiry for quotations.
