• Model NO.：XHWS 180
• Analysis Method：Physical Analysis
• Display：Digital
• Application：Medicine
• Portable：Portable
• Physical Analysis Type：Gas Chromatography Method
• Chemical Analysis Type：Toluene Method
• Operating Mode：Touch Screen
• Heating Mode：Standard Heating
• Off Mode：Automatic
• Transport Package：Wooden
• Trademark：XZH TEST
• Origin：China Xi′an
• HS Code：854320100
• Production Capacity：100 Pieces ,Year
• Package size per unit product：36.00cm * 28.00cm * 20.00cm
• Gross weight per unit product：40.000kg

Basic Info.

Model NO. XHWS 180 Analysis Method Physical Analysis Display Digital Application Medicine Portable Portable Physical Analysis Type Gas Chromatography Method Chemical Analysis Type Toluene Method Operating Mode Touch Screen Heating Mode Standard Heating Off Mode Automatic Transport Package Wooden Trademark XZH TEST Origin China Xi′an HS Code 854320100 Production Capacity 100 Pieces /Year

Packaging & Delivery

Package size per unit product 36.00cm * 28.00cm * 20.00cm Gross weight per unit product 40.000kg

Product Description

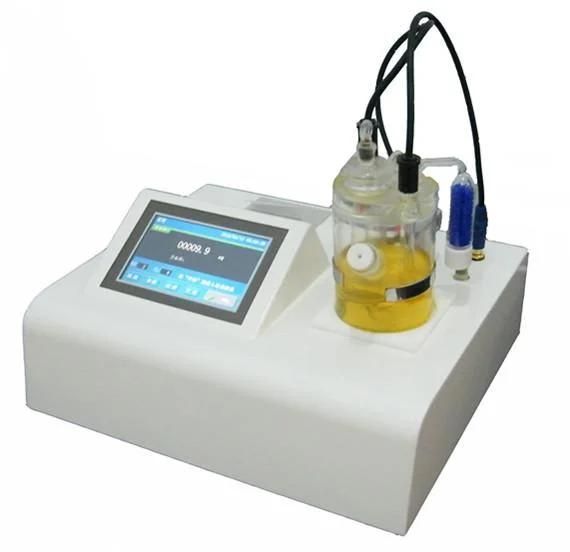

XHWS180 trace moisture analyzer





Product description

   The XHWS180 trace moisture analyzer is the most reliable method for the determination of trace moisture in different substances by Karl Fischer Coulometric titration. The XHWS180 Trace Moisture Tester successfully applied this method, using the most advanced automatic control circuit, 32-bit embedded microprocessor as the main control core, embedded in the mini operating system. Therefore, the instrument works more reliably and is more convenient to use. Its analysis speed is fast, the operation is simple, the precision is high, and the automaticness is strong. Widely used in petroleum, chemical, electric power, railway, pesticide, pharmaceutical, environmental protection and other departments.



Main features

A 32-bit embedded microprocessor is used as the master core, which is embed to the mini operating system.

It adopts constant pressure detection, which is high precision, fast measurement speed, stable and reliable.

It uses colorful touch screen and full numeric keyboard, it's simpler  to operate and convenient to calculate the data.

4 calculation formulas were include to meet customer needs.

Mini thermal printers have a time record for easier searching.

A new shape based on ergonomics.

Innovative and optimized operating software, which offer different touch experiences to user.



Main Technical Parameters

Titration method: electricity titration (Coulomb analysis)

Display: colorful LCD touch screen

Electrolysis speed: Maximum is 2200ug/s (0~400mA automatic control)

Test range: 3ug ~ 100mg

Sensitive valve: 0.1μg H2O

Accuracy: 10μg~1000μg±3μg,  ≤0.3% (1mg)

Printer: Micro Thermal Printer

Power supply: 220V±10%, 50Hz

Power: < 40W

Working temperature: 5~40°C

Working humidity: ≤ 85%

Size: 340 *295 *155mm

Weight: about 5.5kg
