High Precision Linear Encoder for Milling Machine (LE0100-50A)

Leader Precision Instrument Co., Ltd.
  • After-sales Service:18 Months Warranty
  • Warranty:18 Months Warranty
  • Name:High Precision Linear Encoder for Milling Machine
  • Model:Le0100-50A
  • Resolution:0.005mm(Standard);
  • Effective Range(Er):2-128 (50mm-3200mm)

Base Info

  • Model NO.:LE0100-50A
  • Output Signal:5V, Ttl (Standard); RS422(Optional)
  • Output Wave Form:Two 90° Phase-Shifted Sinusoidal Signals
  • High Accuracy:± (5+L,200)&Micro
  • Max. Response Speed:72 M,Min
  • Scale Grating Pitch:0.02mm
  • Scale Reference Point Pitch:50 Mm
  • Transport Package:Standard Exporting Package
  • Specification:SGS
  • Trademark:Leader
  • Origin:Guangdong
  • HS Code:9031499090
  • Production Capacity:500 PCS,Year

Description

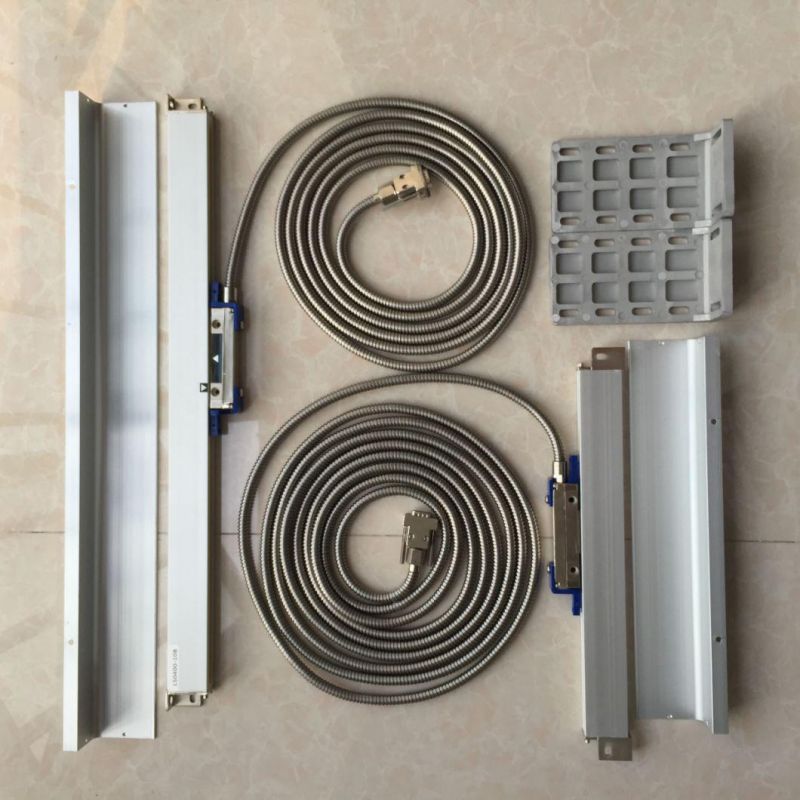

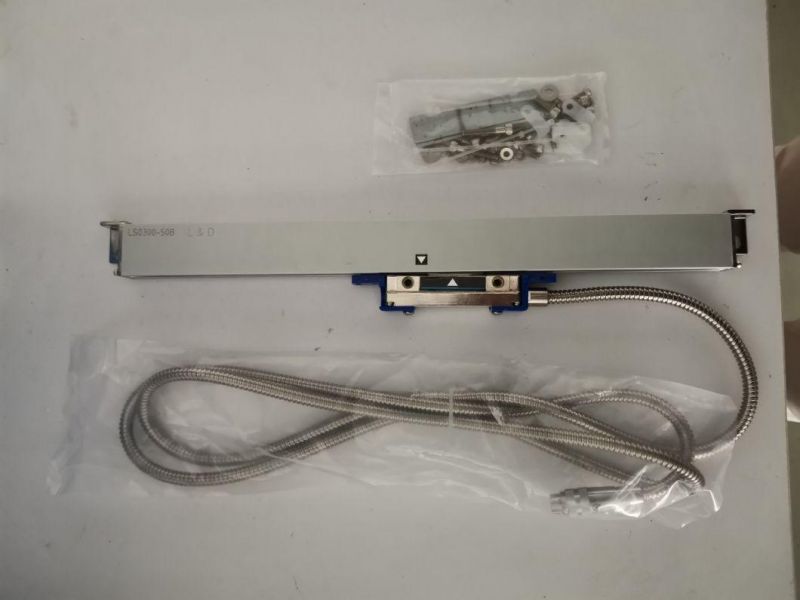

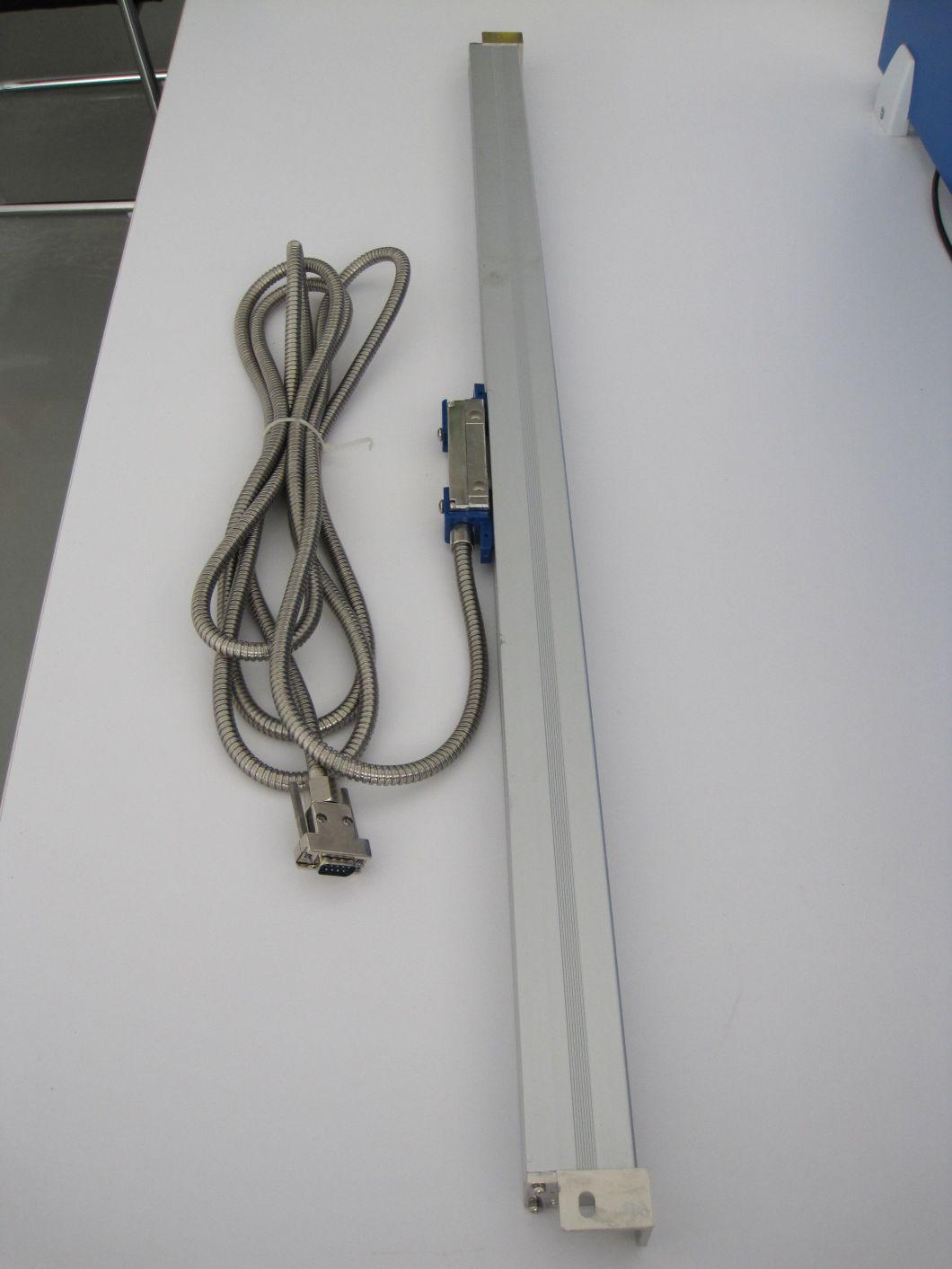

High Precision Linear Encoder for Milling Machine (LE0100-50A)High Precision Linear Encoder for Milling Machine (LE0100-50A)High Precision Linear Encoder for Milling Machine (LE0100-50A)


Usage:
The linear encoder is used to accurately detect and display the displacement of machine tools or measuring equipment together with the digital readout, which is installed on the milling machine, lathe machine, drilling machine and so on

Features:
High accuracy optical glass
Scale reference points at a 50mm pitch to determine datum point for machining
Using 5 sets of bearing, assures excellent repeatability, positioning, good sliding and durability
Special process of aluminum alloy for water/oil proof and anti-dust
Suitable for milling, drilling and grinding machines, lathers, XY-tables, etc
Enhanced vibration resistance
Top quality rubber lips to avoid contamination
Easy installation and maintenance.

 Parameters:Resolution0.005mm(standard);     0.001mm (optional)Effective range(ER)  2-128 (50mm-3200mm)Output signal5V, TTL (standard);     RS422(optional)Output  wave formTwo 90° phase-shifted sinusoidal signalsHigh accuracy± (5+L/200)µ m;   L = Effective range (mm)Max. Response Speed72 M/minScale grating pitch20μ mScale reference point pitch50 mmOperating temperature0º C to 40º C
 Extension cable:TravelCable50mm-900mm2m1000mm-1500mm5m1600mm-3000mm10m
