• Model NO.：SUP-PTU200
• Specification：Diameter 60mm* Length 256mm
• Trademark：Supmea
• Origin：China
• Production Capacity：50000peic

Basic Info.

Model NO. SUP-PTU200 Specification Diameter 60mm* Length 256mm Trademark Supmea Origin China Production Capacity 50000peic

Product Description

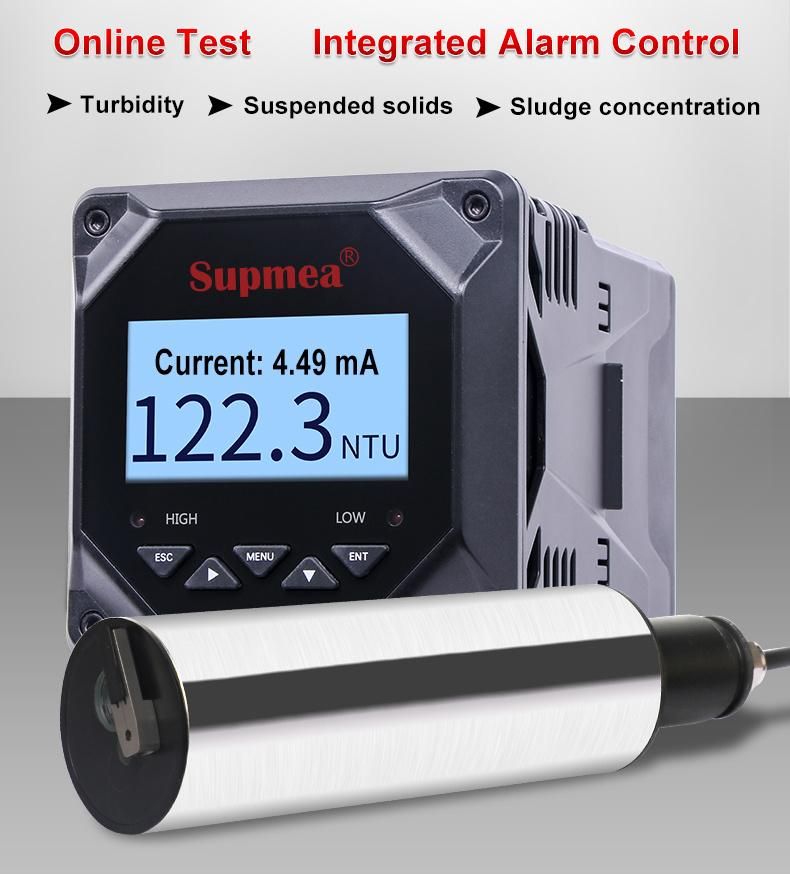

Turbidity controller

1.Relay, output and the signal:
The transmitter is equipped with three configurable relay switches and two-way analog output.

2.Sensor and the sensor module:
The transmitter is a single-parameters one, can contain one sensor.

3.Transmitter shell:
Transmitter shell is of IP65 protection class. For outdoor use, it's strongly recommended to take protective measures to event environmental damage.


Size	D 60mm* L 256mm
Weight	1.65KG
Material	Body: PVC
	O-ring: Fluorine rubber
	Cable: PVC
Waterproof grade	IP68/NEMA6P

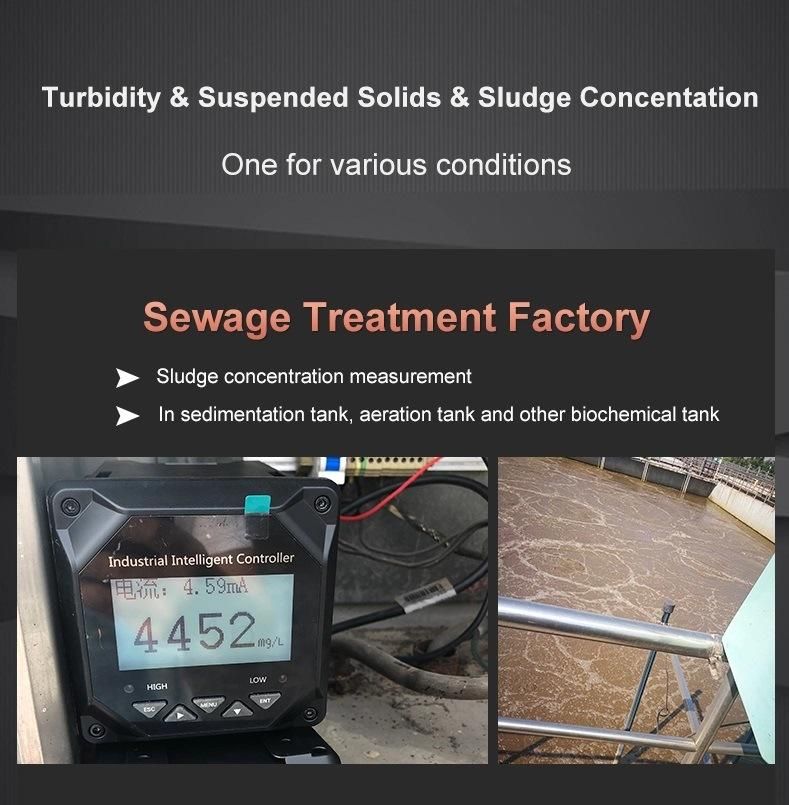

Measuring range	Turbidity:0.00 ~ 4000NTU/ MLSS concentration: 0.1 ~ 20000 mg/L, 0.1 ~ 45000 mg/L, 0.1 ~ 120000 mg/L
Display accuracy	Turbidity: Less than ±2% of the measured value or ±0.1NTU, whichever is larger / MLSS concentration: less than ±5% of the measured value (depending on the homogeneity of the MLSS)
Velocity of flow	≤2.5m/s, 8.2ft/s
Pressure range	≤0.4Mpa
Ambient temperature for measurement	0 ~ 45ºC
Temperature	-15 ~ 65ºC
Humidity	5 ~ 95%RH
Calibration	Calibration of sample, slope calibration
Cable length	10m standard cable, can be extended up to 100m

 Turbidity sensor

Specification	Details
Size	Diameter 60mm* Length 256mm
Weight	1.65 KG
Main Materials	Main Body:SUS316L (Ordinary Version),Titanium Alloy (Seawater Version) Upper and Lower Cover:PVC;Cable: PVC
Waterproof Rate	IP68/NEMA6P
Measurement Range	0.01-100 NTU ,0.01-4000 NTU
Indication Resolution	Less than ± 2% of the measured value, or ± 0.1 NTU Maximax criterion
Pressure Range	≤0.4Mpa
Flow velocity	≤2.5m/s,8.2ft/s
Storage Temperature	-15~65ºC
Environment Temperature	0~45ºC
Calibration	Sample Calibration, Slope Calibration
Cable Length	Standard 10-Meter Cable, Max Length: 100 Meters
Warranty Period	1 Year
High Voltage Baffle	Aviation Connector, Cable Connector



Packing & Delivery:

Electromagnetic flow meter is packed in cartons ,and wooden boxes (from DN80)

Lead time : Most products within 7 working days(if have stock, could be sent same day), customized product would be longer

Delivery process:


1.Use customer's own delivery account, or we help to choose a suitable one
(Usually use FedEx, Ups, DHL, TNT, EMS,etc)

2.Delivery time is 2-7 working days, some products have stock in Malaysia.

3.Help to do the destination customs clearance

Overseas Service Center Address:

Singapore/ Philippines/ Malaysia/ Kroea/ Indonesia/ Germany/ India
