• Model NO.：FTPC7
• Nozzle Opening：0.19mm
• Timer Accuracy：0.1s
• Operaion：Automatic
• Display：LCD
• Color：White
• Applicating：Textiles and Films Testing
• Control：Touch Screen
• Material of Sample Holder：Stainless Steel
• Language：English
• OEM Service：Available
• Operation：Automatic
• Transport Package：Plywood Case
• Specification：Stainless steel
• Trademark：AI
• Origin：China
• HS Code：9031809090
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. FTPC7 Nozzle Opening 0.19mm Timer Accuracy 0.1s Operaion Automatic Display LCD Color White Applicating Textiles and Films Testing Control Touch Screen Material of Sample Holder Stainless Steel Language English OEM Service Available Operation Automatic Transport Package Plywood Case Specification Stainless steel Trademark AI Origin China HS Code 9031809090 Production Capacity 30 Sets/Month

Product Description

Introduction:

This Fire Resistance Tester is designed according to IMO FTPC PART 7. It can test the flame spread state under the small flame . It is used to simulate the textiles and films under risk of ignition to assume the flame spread performance .
This Fire Resistance Tester is also suitable for the fabric material or other similar functional use of combustible materials .



Standard

IMO FTPC PART 7:Test for vertical supported textiles and films --IMO A.687(17)

IMO RES.A 471 (XII):Recommendation on test method for determining the resistance to flame of vertically supported textiles films.

IMO RES.A 563 (14): Amendments to the recommendation on test method for determining the resistance to flame of vertically supported textiles and films.



Features:

1.The combustion chamber is made of stainless steel; nice, corrosion-resistant; Dimension: 700mm X325mmx 750mm..

2. All sample holder is made of stainless steel manufacturing,corrosion resistance;

3. Standard burner; flame height 40mm ±2mm;nozzle opening 0.19mm;

4. The time is automatically recorded, automatic storage; timer accuracy 0.1s;

5. PLC with touch screen control system; to achieve more intelligent test; automatically record test data, automatic storage;

6. This fire resistance tester adopts imported brands gauge and control valve, the gas pressure is more stable;

7.This fire resistance tester uses imports needle valve, precise control of the flame height; flame is more stable;

8.High intelligence, simple operation, easy to operate;

9.Automatic ignition system, automatically turns off;

10.This fire resistance tester is equipped with a flame height gauge;

11.Pulsed high voltage electronic automatic ignition.

12.Timing button with the PLC automatically record storage combustion time-consuming.

13.Without holding the stopwatch or timer manuscript; the fire resistance tester automatically records the test of time, and generate test reports;

14.The test time and time plus a touch screen can be set to fire.

15.The combustion test program can be operated automatically on the touch screen.



Electrical:

1. The voltage 220V, 50 / 60Hz;

2. Outlet with a ground port;



Accessories:

1.304 Stainless steel flame height ruler.

2.Pipe clamp 2.

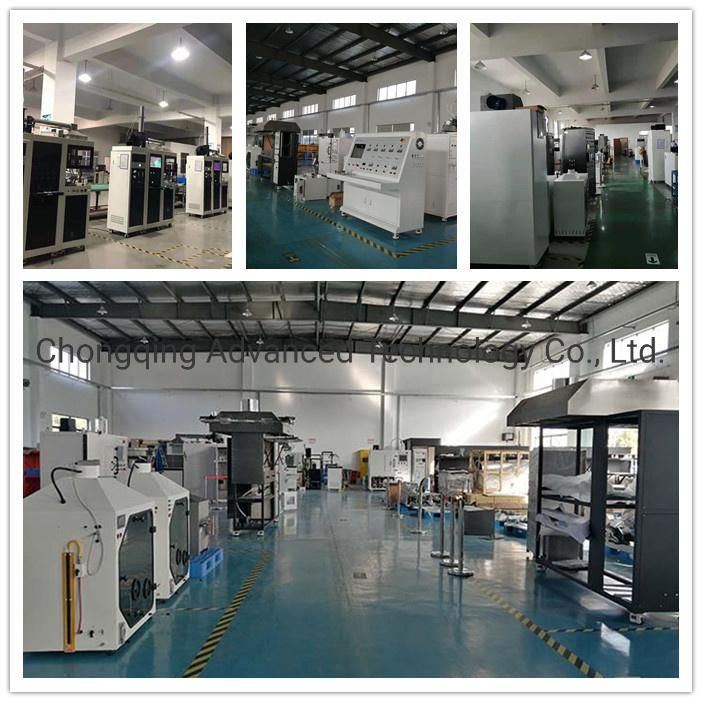

Factory Show

Customer Feedback

Germany

USA

Package

Transporation

FAQ
1.What's the delivery time?
About 30 days .

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
