• Model NO.：TPO-3000A
• Trademark：TOP
• Origin：China
• HS Code：9027809900
• Production Capacity：280 Sets,Month

Basic Info.

Model NO. TPO-3000A Trademark TOP Origin China HS Code 9027809900 Production Capacity 280 Sets/Month

Product Description

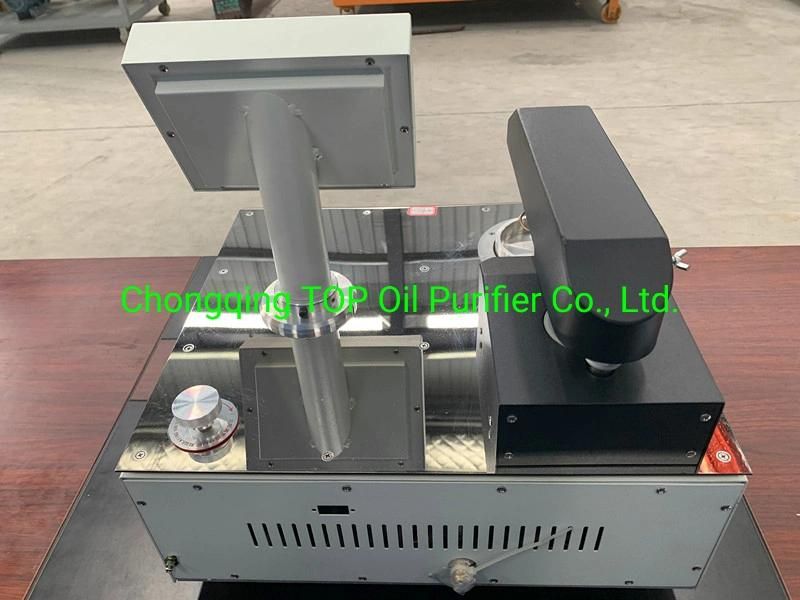

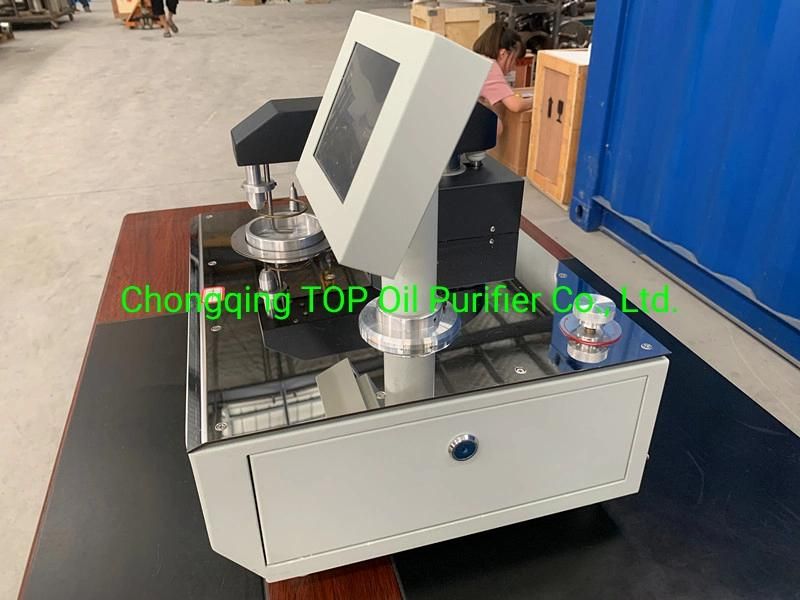

Large LCD ASTM D92 Cleveland Flash Point Tester(TPO-3000A)


Application:
This instrument is designed and manufactured in accordance with the requirements stipulated in GB/T 3536-2008 Standard of the People's Republic of China "Determination of Flash Point and Flame Point of Petroleum Products Cleveland Open Cup Method" and ASTM D92. It is suitable for the determination of Flash Point of Petroleum Products whose Flash Point of Open Cup is higher than 79ºC except fuel oil by the method prescribed in this standard.

Main Features:

• Control mode: Microcomputer control, automatic correction of system deviation, automatic correction of atmospheric pressure, and calculation of correction value.
• Automation: automatic lifting, automatic sweeping and automatic detection.
• The experimental procedures: according to the standard, heating rate automatically controlled, testing accurately, accurate, adopting new heating material, safe and reliable, and long service life
• The experimental data are saved automatically and the instrument has the function of fault self-diagnosis.
• High-precision ionization ring detection mode, automatic stopping while over heating.

Technical parameter

Display	7-inch color touch LCD display screen
Test method:	Thermocouple differential detection
Test range:	Room temperature-400ºC
Repeatability:	±2ºC
Printer:	High speed thermal printer,paper size:44mm
Ignition mode:	Automatically electronic ignition
temperature Detection	Imported precision platinum resistance
Self-checking :	Printer, igniter, electromagnetic valve, detection arm movements, ignition rod stroke ect.
Power consumption:	<700w
Temperature:	Atmospheric temperature: 10ºC-45ºC,humidity: 30-80%
Power:	AC220V±10%
Dimension	400×300×240mm
Weight:	20 kg
