Analysis Instrument

Kf200 Series Online Laser Gas Analyzer for High Corrosion Environment

Nanjing KELISAIKE Safety Equipment Co., Ltd.
  • Warranty:1 Year
  • Brand:Kelisaike
  • Customized:Both
  • Portable:Non Portable
  • Certification:CE
  • Gas:O2, Co, Nh3, CO2, H2s, CH4, H2O Hc, Hfetc.

Base Info

  • Model NO.:KF200
  • Type:Laser Gas Analyzer
  • Measurement Principle:Dlas
  • Power Supply:220V AC,DC 24V(18~36V)
  • Ambient Temperature:-30 ~60 Degree
  • Storage Temperature:-40 ~80 Degree
  • Installation Method:in-Situ or Pass-by
  • Explosion-Proof:Exp Xmd Iic T5
  • EMC:IEC 6100-4-2, IEC 6100-4-3, IEC 6100-4-4
  • Protection Levels:IP65
  • Transport Package:Carton
  • Specification:60kg
  • Trademark:KELISAIKE
  • Origin:Nanjing, China
  • HS Code:9027500000
  • Production Capacity:10sets Per Month

Description

-30ºC~+60ºCGas jet0.3~0.8MPa Industrial nitrogen inlet and purification
instrument gases etc.

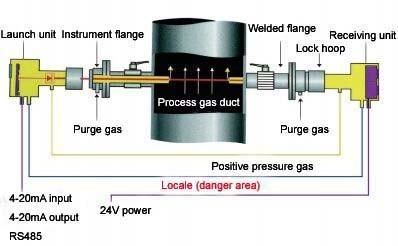

Power220VAC,power is base on specific configurationInstallationInstallation MethodSampling probe is mounted in the flue / pipe,system
is installed nearby


>>>Main Process Line

Kf200 Series Online Laser Gas Analyzer for High Corrosion Environment


>>>Gas Detection Limits
 Detection Gas TypeDetection LimitDetection rangeO20.01%Vol.(0-1)%Vol., (0-100)%Vol.CO210 ppm(0-1000)ppm,(0-100)%Vol.H2S20 ppm(0-2000) ppm, (0-100)%Vol.HCl0.1 ppm(0-50) ppm,(0-100)%Vol.NH30.1 ppm(0-10) ppm, (0-100)%Vol.C2H20.1ppm(0-10) ppm, (0-100)%Vol.CO10 ppm(0-1000)ppm, (0-100)%Vol.H2O0.3 ppm(0-50)ppm, (0-100)%Vol.HF0.02 ppm(0-5)ppm, (0-10000) ppm HCN0.3 ppm(0-30)ppm, (0-1)%Vol.CH40.4 ppm(0-40)ppm, (0-100)%Vol.C2H40.6 ppm(0-60)ppm, (0-100)%Vol.Remark1:The test conditions for 1m optical path, the gas pressure 1bar, gas temperature 300K
Remark2:By increasing the optical path, proportionally lower detection limit


>>>OEM

Customize producta are also available,pls feel free to contact me for more detailes.

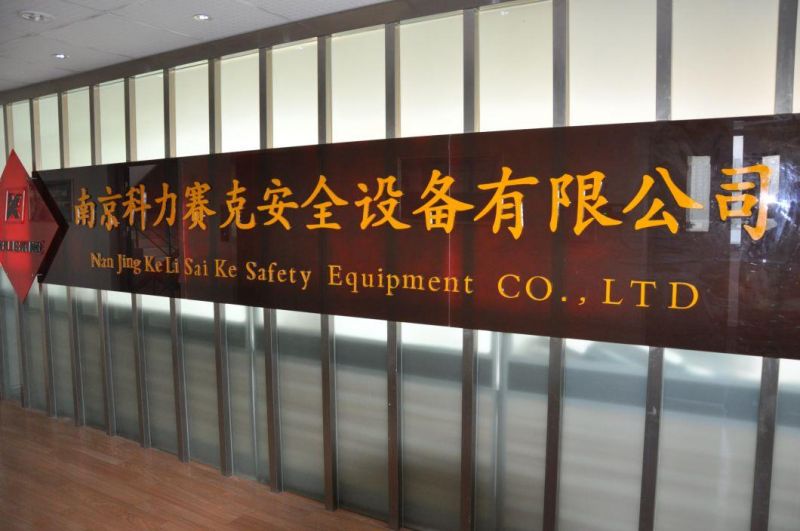

>>>Company Information

Kf200 Series Online Laser Gas Analyzer for High Corrosion Environment


Nanjing KELISAIKE is one of the largest safety equipment manufactures, possesing the most complete production range and specifications in the safety equipment industry of mainland China. Nanjing KELISAIKE was founded in 2004, including three subsidiaries in Beijing, Xi'an and Xinjiang, and more than 30 domestic sales service centers, with total registered capital of 5.16 million Yuan. Standard products and services cover the portable gas detector, fixed gas transmitter, wall-mounted gas detector, gas detector control unit, air breathing apparatus etc. Also Nanjing KELISAIKE is an experienced factory for OEM service, providing professional design and construction of the customize products. The products are widely used in fields of petroleum, chemical, gas transmission and distribution, warehousing, municipal gas, fire fighting, environmental protection, metallurgy, pharmacy, energy and power industry.
Nanjing KELISAIKE has passed IS9001 International Quality System Certification, which ensures all products' excellent performance and competitive prices.

KELISAIKE Faith
People-oriented and technology-innovated
KELISAIKE Principle
Quality first, integrity-based

>>>Our Services
1.The inquiry and question will be replied within12hours
2.High quality with competitive price
3.Good after sales service
4.Accept OEM
5.One of the most professional safety equipment manufacture with a very good and trained team


>>>FAQ
1.How about the Delivery time?
Samples will be prepared  within 15 Days after 100% T/T in advance payment. QTY order will be delivered in 30 days.
2.What kind of payments does KELISAIKE support?
T/T, L/C, Western Union, Cash are accepted.
3.What's the MOQ?
Generally speaking, the MOQ is 5PCS, but we also can provide you samples for quality inspection.
4.Do you charge for the samples?
According to our company policy,we just charge the samples based on EXW price.
5.Can you produce according to customers' design?
Suce, we are professional maunfacturer, OEM is welcome
