• Model NO.：MOT200-C2H6O
• N.W：1.4kg
• G.W：1.7kg
• Screen Size：2.4 Inch LCD HD Color Screen
• IP Rating：IP 65
• Explosion Proof Sign：Exdll CT4 (Ia)
• Power：24VDC
• Transport Package：Standard Carton Packaging 27.5*21*14cm
• Specification：Product size: 20*22*8cm
• Trademark：Korno or customized
• Origin：China
• HS Code：9027100090
• Production Capacity：10000pieces,Month

Product Type:Online,Ethanol(C2H6O)Sensor:Non-Dispersive Infrared Gas SensorDetection Pattern:Diffusion,pipeline(screw thread size:M40*1.5MM),Circulation,Pumping is available,Online detectionDetection Range:0-5%VOLResolution:0.01%VOLDetection Accuracy:≤±3%F.SLinearity error:≤±1%F.SReaction Time:≤20S(T90)Zero drift:≤±1%(F.S/Year)Recovery Time:≤20SRepeatability:≤±1%F.SRelay output:Two relays output,Contact rating:24VDC 3A/220VAC 3AExplosion Proof Sign:ExdII CT6,Certification Number of Explosion-proof :CNEx10.1807Outputs:                  Analog:4-20mA signal,0-5V,0-10V
              Modbus: RS485 signal
              Pulse signal or TCP/IP signal,optionalAlarm Setting:Two alarm set points
Alarm mode optional: Low alarm-High alarm / High alarm-High alarm / Low alarm-Low alarmControllers:Compatible with DN3000/DN9000,as well as most DCS/PLC systemsIP Rating :IP65Material:Aluminum
,Explosion and corrosion proofConnection:3/4″NPT,1/2″NPTDimensions:200×160×80mm(L×W×H)Weight:1.5 Kg(Net weight)Operating
Temperature:-30 ~ 60ºCRelative Humidity:≤90%RH,Non-condensingOperating
Pressure:0 ~ 200KpaOperating Voltage:24VDC(9~30VDC)Standard Accessories:-User manual
-Certification
-Calibration coverOptional Accessories:-hose(5*8mm),drying tube,water separator or pumping pump
-infrared remote control
-temperature and humidity sensor,SMS alarm,3G module or wireless transmission module

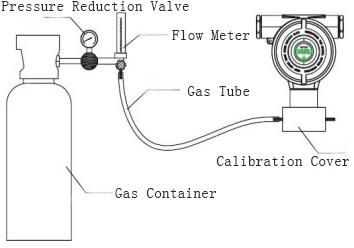

4) Calibration:

NOTE:We guarantee all detector were precise calibrated with certain density standard gas.It's not neccessary for customer to re-calibrate the detector after purchase unless encounter special situation.



5) Customize Service:
  1) Show your company name and logo at the boot interface
  2) Print your company name,information,logo at the label and manual
  3) Design stainless steel nameplate with your company name for free(≥20PCS)
  4) We can also silk-printing your Logo,design another color of the case for you
      if you have a large order.For more details,please contact us^ ^


F&Q:
Q1:Can I have a sample order?
A1: The sample order to test are welcomed at the first time.

Q2:How about your production capacity and quality control?
A2:We have written instructions for incoming material&finished products inspections and testing.
      All the finished products will be 100% inspection and all the non-conforming units will be clearly
      marked and segregated to repaired and re-inspection.

Q3:How can I get a good price?
A3:We are 100% sure that we can provide you high value with competitive price and please attach           your detailed request, application place, order quantity, delivery mode,payment terms to the               inquiry mail ^ ^
