• Model NO.：JAY-120
• Accuracy：+,-0.2%
• Max Pressure：100kpa
• Max.Flow：0-10L,Min
• Power off Automatically：in 15 Minutes Without Singnal
• LCD Purity Display,：Between 21.0-99.9%
• Transport Package：Standard Carton Box
• Specification：185*80*31mm
• Trademark：LONGFIAN
• Origin：Hebei, China
• HS Code：9018909991
• Production Capacity：4000PCS,Day

Basic Info.

Model NO. JAY-120 Accuracy +/-0.2% Max Pressure 100kpa Max.Flow 0-10L/Min Power off Automatically in 15 Minutes Without Singnal LCD Purity Display, Between 21.0-99.9% Transport Package Standard Carton Box Specification 185*80*31mm Trademark LONGFIAN Origin Hebei, China HS Code 9018909991 Production Capacity 4000PCS/Day

Product Description

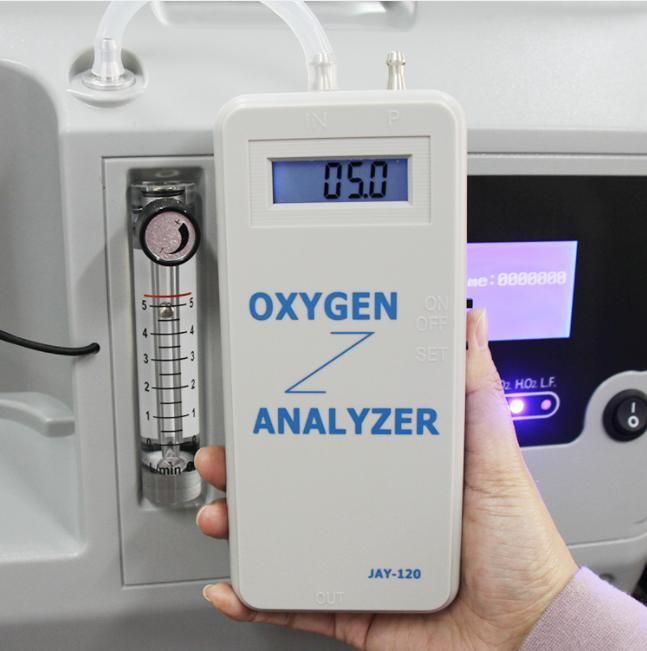

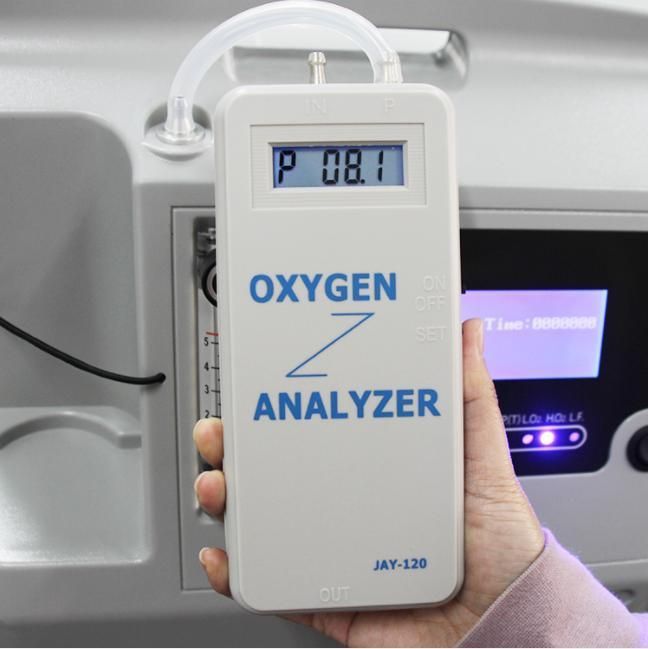

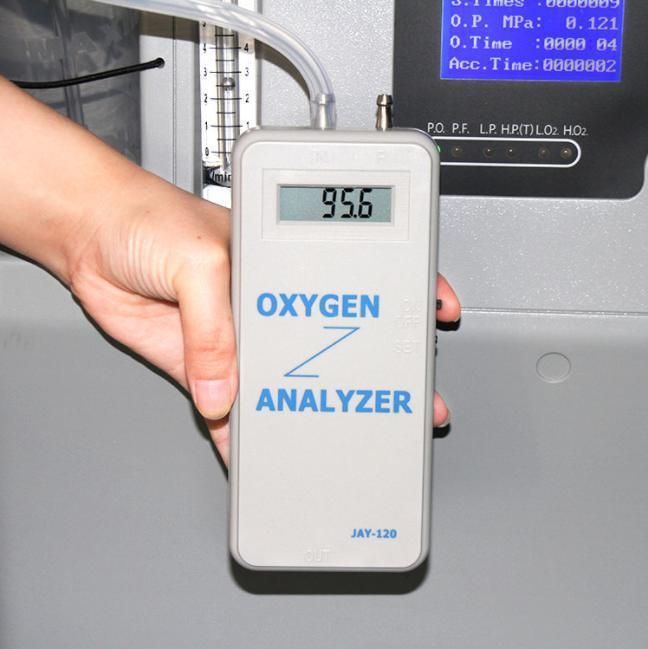

Oxygen Analyzer for Psa Oxygen Generator JAY-120

Designed to measure oxygen concentration, oxygen flow and outlet pressure for PSA oxygen concentrator.

Model	JAY-120
Operating voltage	DC9V
Flow Detection Range	0-10L/min
Flow Detection Accuracy	+/- 0.2L/min
Oxygen Concentration Detection Range	Range(V/V) 21.0-96.0%
Oxygen Concentration Detection Accuracy	+/-2%
Pressure Detect Range	0-21PSI
Pressure Detection Accuracy	+/- 1Psi
Operating Temperature	5~55 ºC
Storage Temperature	-5~65 ºC
Operating Ambient Humidity	< 90%
Dimension	185×80mm×31mm
Relative Humidity	5~85% RH

Features:
1. The oxygen analyzer measures oxygen concentration flow using ultrasound technology. It has the characteristics of high accuracy, strong anti-interference ability, rapid response, long-term stability, no need for regular asjustment, and long lifespan.
2. The pressure test adopts imported modules with high accuracy.
3. It can measure the oxygen purity, oxygen flow and oxygen pressure.
