Asphalt Mixture Plate Cutting Machine to Making Bitumen Specimen

Chongqing Advanced Technology Co., Ltd.
  • After-sales Service：Response in 12 Hours
  • Warranty：1 Year
  • Power Supply：AC (380±7%) V, 50Hz
  • Cutting Device Power：4000W
  • Motor Waterproof Rating：IP56
  • Saw Blade Material：High-Strength Diamond

Base Info

  • Model NO.：ACM-1
  • Saw Blade Diameter：Φ 470mm
  • Standard Fixture：Cylinder Diameter Φ 100mm
  • Cutting Accuracy：0.15mm~0.2mm
  • Power Consumption：5000W
  • Dimension：1800mm×1600mm×2100mm
  • Weight：400kg
  • Function：Cutting The Formed Asphalt Mixture Into Test Piece
  • Color：White
  • Transport Package：Plywood Case
  • Specification：Automatic
  • Trademark：AI
  • Origin：China
  • HS Code：9031809090
  • Production Capacity：20 Sets,Month

Description

1Power supplyAC (380±7%) V, 50Hz, three-phase five-wire system, with working zero line2Cutting device power4000W 3Motor waterproof ratingIP564Saw blade materialhigh-strength diamond5Saw blade diameterΦ 470mm6Cuttable test pieceCylinder diameter Φ 100mm (standard fixture)
Cylinder diameter Φ 150mm (fixtures is optional)
The thickness of the cuboids is 25mm to 150mm (fixtures is optional)7Cutting accuracy0.15mm~0.2mm8Dimension1800mm×1600mm×2100mm (length×width×height)9Power consumption5000W10Weight400kg11Working conditionambient temperature (5ºC~35ºC), relative humidity≤85%


Note: Various specifications of fixtures and spacers can be separately selected to meet the needs of cutting.

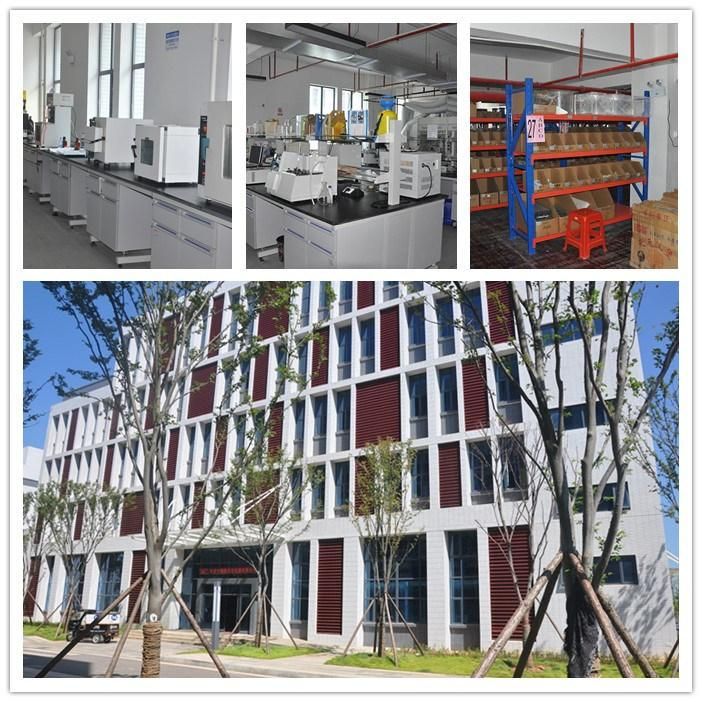

Factory overview

Asphalt Mixture Plate Cutting Machine to Making Bitumen Specimen

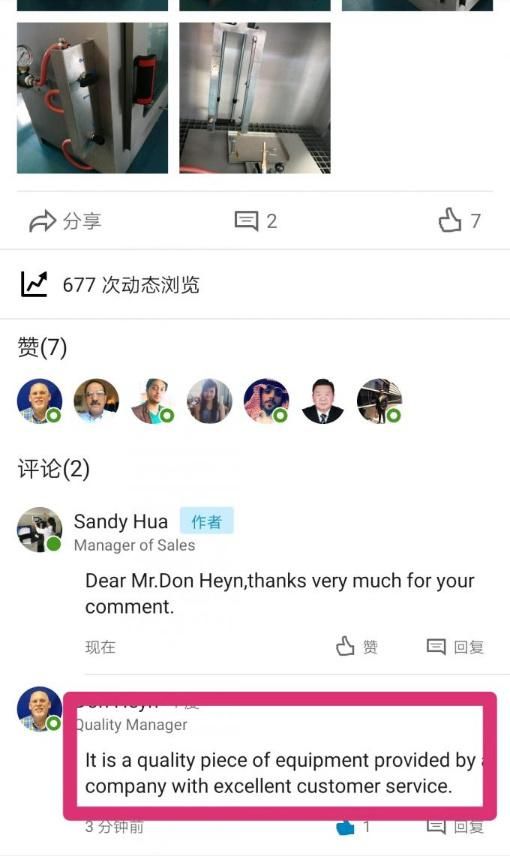

Customer Feedback

Germany
Asphalt Mixture Plate Cutting Machine to Making Bitumen Specimen
USA
Asphalt Mixture Plate Cutting Machine to Making Bitumen Specimen
FAQ
1.What's the delivery time?
About 15 days.

2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.

3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.

4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD150/Day for every person.
