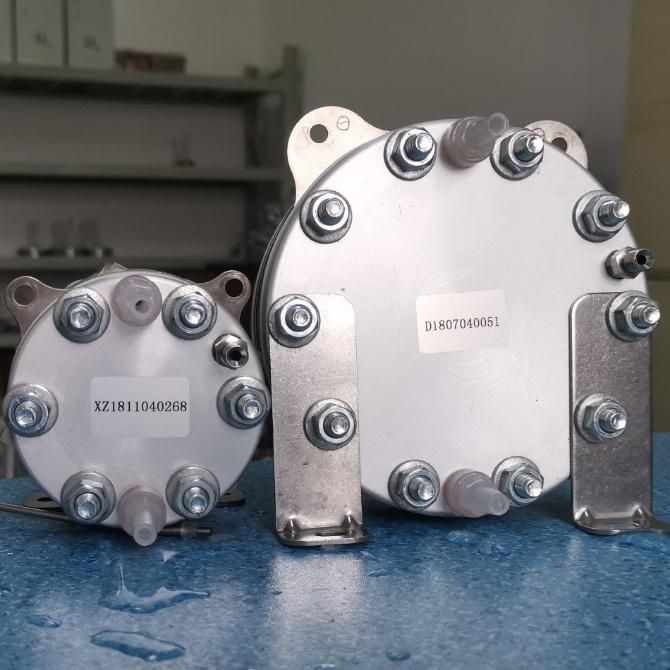

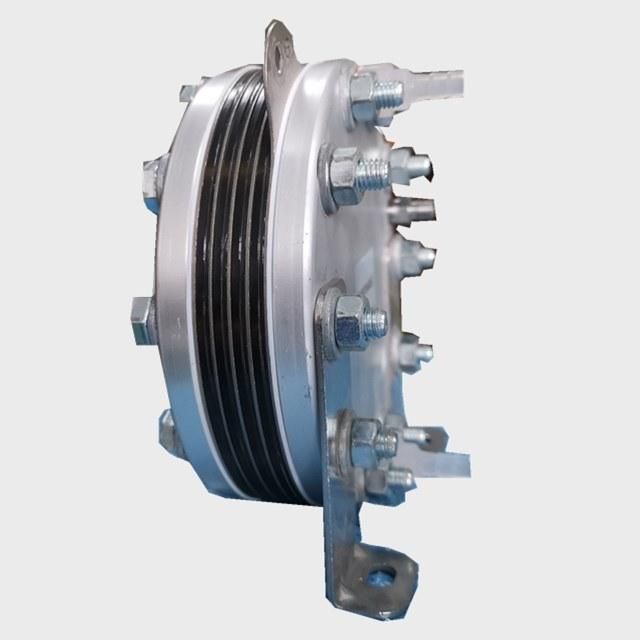

Qlc Series Pem Electrolysis Cell
Shandong Saikesaisi Hydrogen Energy Co., Ltd.- Model：Qlc-1000
- H2 Producing Rate：1000ml,Min
- O2 Producing Rate：500ml,Min
- Power Supply Requirement：DC12V, 35-45A
- MOQ：1 Piece
- Warranty：12 Months
Base Info
- Model NO.：QLC
- Transport Package：Carton Box or Wooden Box
- Specification：Dupont membrane
- Trademark：Saikesaisi
- Origin：China
- HS Code：8543909000
- Production Capacity：300 Units,Month
Description
model
Parameter
QLC-300
QLC-500
QLC-1000
voltage(DC)
3~5V
6~8V
12~15V
current(DC)
45A
36A
36A
H2 production
300ml/min
500ml/min
1000ml/min
O2 production
150ml/min
250ml/min
500ml/min
Notice
1, Electrolytic water must be deionized or secondary distilled water, water does not meet the standards will cause irreparable damage to the electrolytic tank.
2, Connect the electrode line must be right.
3, The electrolytic cell can not be drained for a long time. If the electrolytic cell is removed, a small amount of deionized water or secondary distilled water should be injected into it.

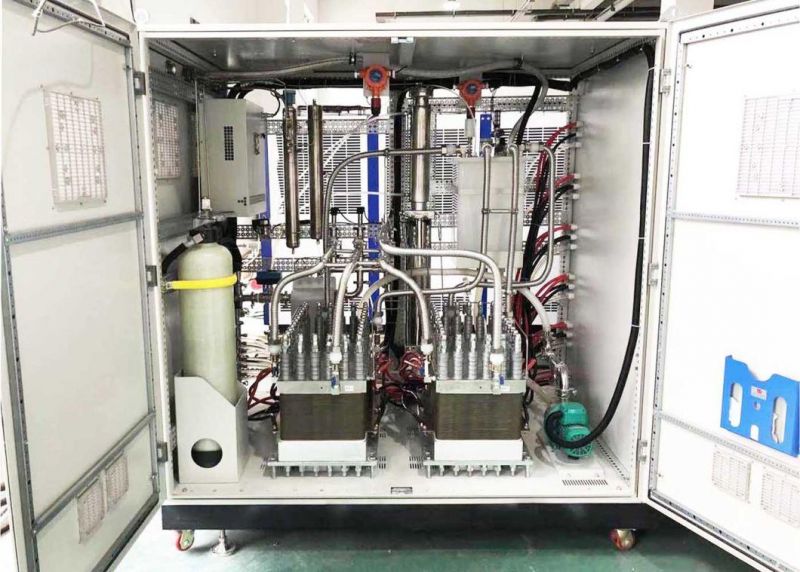

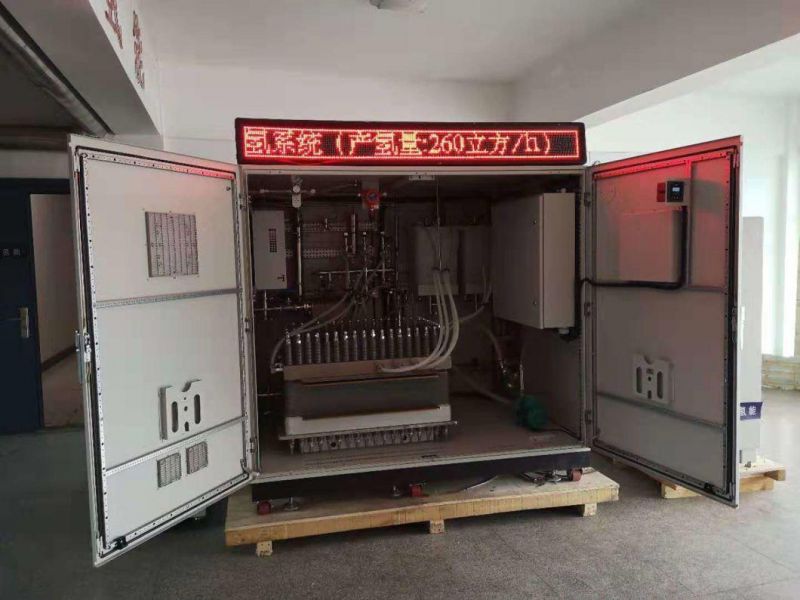

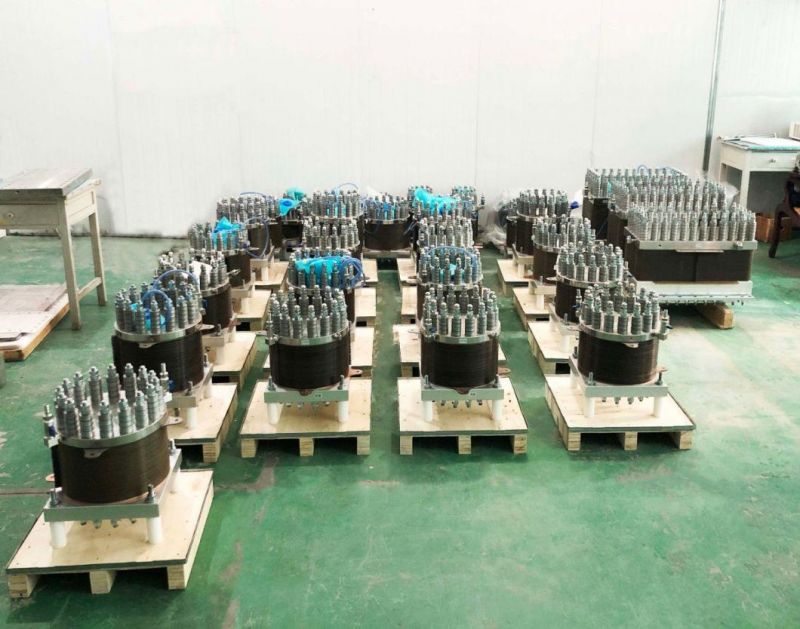

We can also make large PEM electrolysis cell . Such as H2 flow :2Nm3/hour, 4 Nm3/hour, 6 Nm3/hour, 10 Nm3/hour, 20 Nm3/hour, 50Nm3/hour, 200 Nm3/hour.
If you are interested in ,welcome any inquiry.
We are manufacture, we can make all kinds of custom-order product.
please freely talk us if you ask further info:
