• Model NO.：BS-BCA3
• Analysis Resource：Multi-Frequency Bioelectrical Impedance Analysis
• Transport Package：Standard Export Packing Suitable for Sea Shipment
• Specification：Carton size 110*59*49cm
• Trademark：Lumsail
• Origin：Shanghai, China
• Production Capacity：100PCS Per Month

Basic Info.

Model NO. BS-BCA3 Analysis Resource Multi-Frequency Bioelectrical Impedance Analysis Transport Package Standard Export Packing Suitable for Sea Shipment Specification Carton size 110*59*49cm Trademark Lumsail Origin Shanghai, China Production Capacity 100PCS Per Month

Product Description

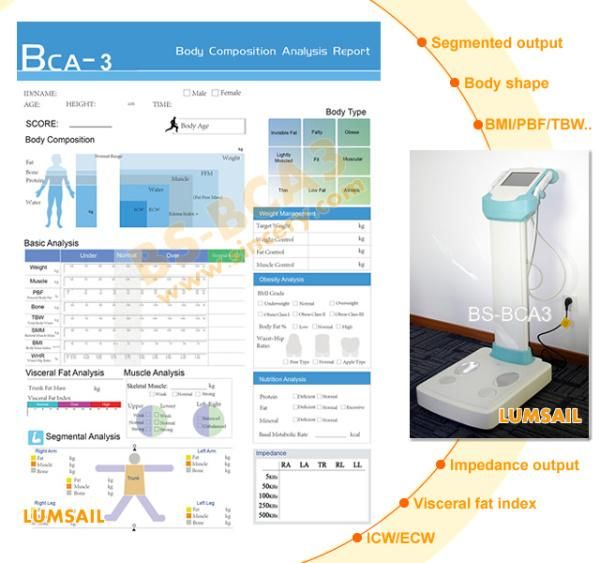

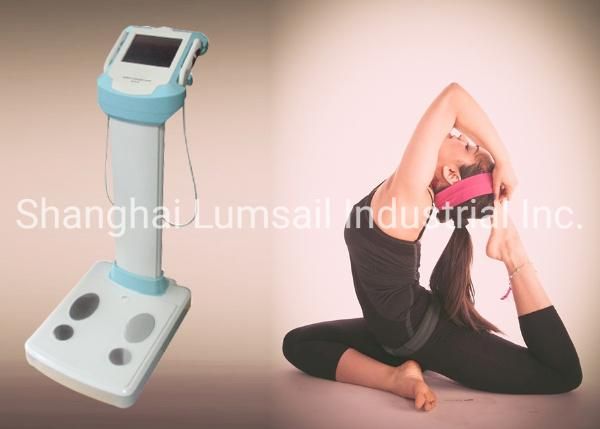

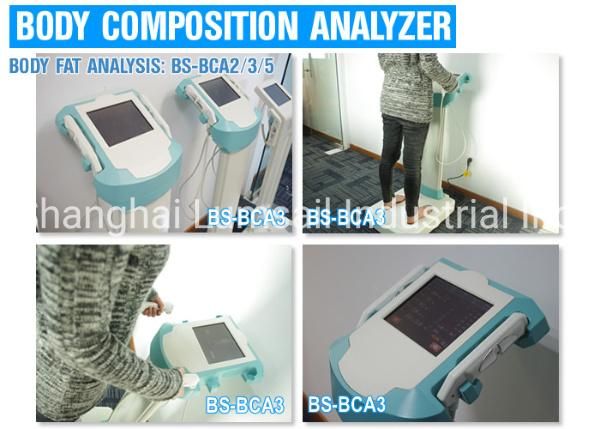

Body Composition Analyzer Analysis Instruments


 Product Details

Body Composition Analyzer is designed to calculate regional body composition, empowering healthcare professionals to better determine health risk associated with visceral and abdominal fat.

The BS-BCA3 model is based on the latest statistics method Direct Segmental Multi-frequency Bioelectrical Impedance Analysis Method, DSM-BIA, which analyzes human body composition including fat, weight, BMI (Body Mass Index), none-fat and other health indicators through multi-frequency bio-electrical impedance analyssis method.

It calculates by the built-in high performance computer, and gives out instruction upon the analysis result for testers' reference as plans to lose weight.

Current has different penetration force depending on frequency. Since low frequency cannot penetrate cells and flow on the external surface's water, it measures only water content outside cells, while higher frequency means that you can measure even the water content inside cells since it penetrates inside cells, that is, by using diverse frequency, the BS-BCA3 model can accurately measure water contents inside and outside cells separately, and also perform the viscereal fat evaluation

When a body touches an electrode, contact resistance occurs, and it is important to control the contact resistance in order to correctly measure the resistance in a body.

Because the electrode method of BS-BCA3 model, which has separated the current and voltage, always begins measurement at the same points in wrists and ankles, reproducibility is very high and also, correct measurements can be made, for they are not affected by contact resistance occurring from skin.

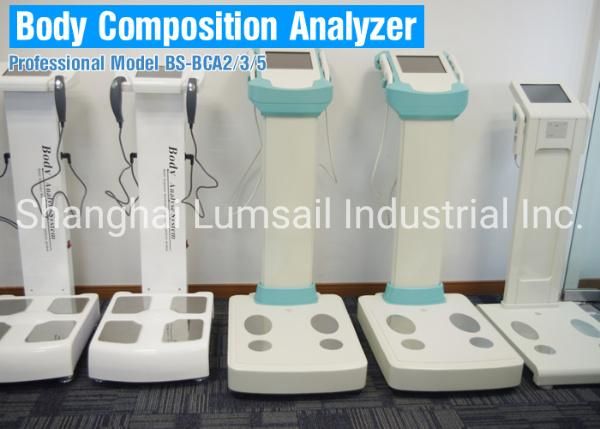

The BCA series products (from BS-BCA2, BS-BCA3, BS-BCA4 to BS-BCA5 models) are classified to different usage model and scenario, as for sports center which focuses more on water/fat/weight control functions, as for clinic which needs information of segmented body composition data, as for hospital, which needs more advanced data as obesity index, visceral Fat Index, etc.

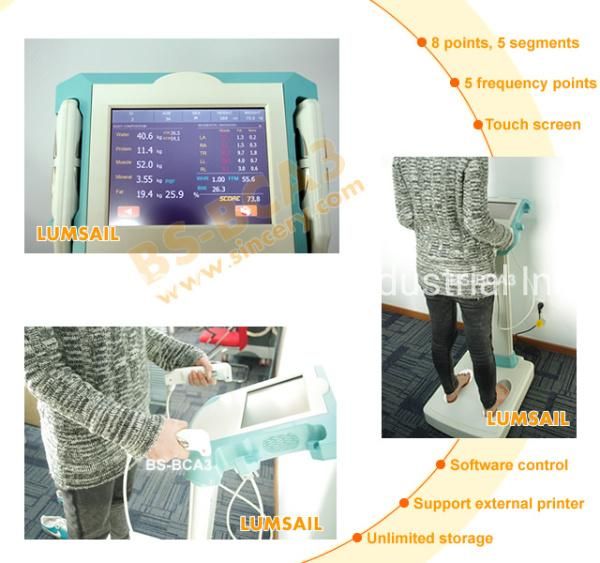

Feature
- Multifrequency BIA system
- More than 38 testing entries
- High accuracy benefitted by 5 testing frequency points
- Both extra and intra-cell water rate testing, cover edema index
- Software on computer to gather client information
- Big scale screen tells testing result clearly
- Supports external printer to output testing result
- Easy to use and maintain

Specification

Model	BS-BCA3
Measurement Method	Direct Segmental Multi-frequency Bioelectrical Impedance Analysis Method
Electrode Method	Tetrapolar 8-Point Tactile Electrode System
Body composition calculation method	No Empirical Estimation
Testing Frequency	5, 50, 100, 250, 500KHz
Resistance Scope	100 ~ 1000 Ω
Measurement item	Right arm, left arm, body, right leg, left leg
Output	Basic Items Bodyweight (auto detected) Intracellular water, Extracellular water, Total Body Water(TBW) Protein, Bone Mass, Fat Mass, Percent Body Fat (PBF), Muscle Mass, Skeletal Muscle, Fat Free Mass (FFM), Visceral Fat Index, Percent Body Protein/Bone/Water, Body Mass Index (BMI), Waist to Hip Ratio (WHR), Basal Metabolic Rate (BMR), Edema Index (EXF/TF) Fitness score, Body Shape Graph, Body Age Segmental Analysis Segmental Fat, Segmental Muscle, Segmental Bone Muscle Analysis Skeletal muscle level , Upper-Lower Balance, Left-Right Balance Weight Management Target Weight, Weight Control, Fat Control, Muscle Control Obesity Analysis BMI Grade, PBF grade, WHR type Nutrition Analysis Protein, Fat, Mineral Level Impedance Impedance of Each Segments & Frequencies
Analysis History Storage	10000 entries (can export through USB port)
External Interface	RS232C(9 pin), USB2.0 (Storage & Printer), RJ45(10/100Base-T)Ethernet
Control Panel	8.4'(800*600) color TFT touch LCD
Printer	External Laser Jet (USB) or Connect to computer
Power	100 - 240V, 50/60Hz,
Net Weight	25kgs

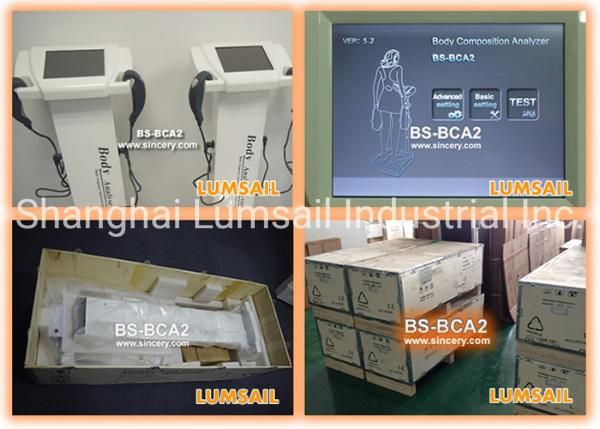

Package

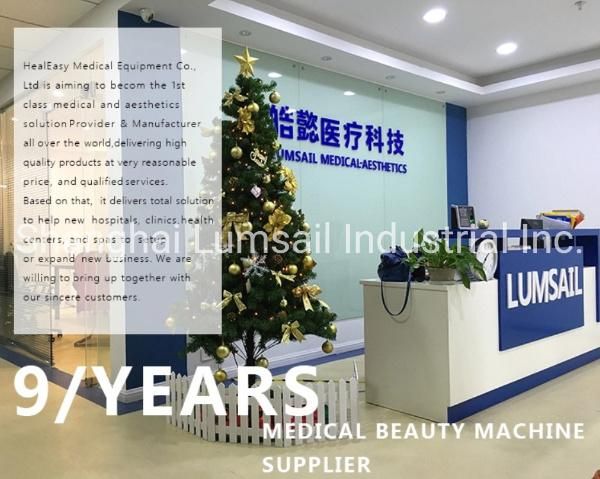

Company Information
