• Model NO.：Testo 320
• Product Name：Flue Gas Analyzer
• Model Number：Testo 320
• Order Number：0563 322075
• Type(1)：Co Measurement with H2 Compensation
• Flue Gas Co (with H2-Compensation)：0 to 8000 Ppm
• Accuracy1：10 Ppm
• Resolution：1 Ppm
• Reaction Time T90：< 40 S
• Flue Gas Colow：0 to 500 Ppm
• Accuracy2：2 Ppm
• Transport Package：One Piece,Box
• Specification：240 x 85 x 65 mm
• Trademark：Testo
• Origin：Germany
• HS Code：9030311000
• Production Capacity：10000PCS,Year

Basic Info.

Model NO. Testo 320 Product Name Flue Gas Analyzer Model Number Testo 320 Order Number 0563 322075 Type(1) Co Measurement with H2 Compensation Flue Gas Co (with H2-Compensation) 0 to 8000 Ppm Accuracy1 10 Ppm Resolution 1 Ppm Reaction Time T90 < 40 S Flue Gas Colow 0 to 500 Ppm Accuracy2 2 Ppm Transport Package One Piece/Box Specification 240 x 85 x 65 mm Trademark Testo Origin Germany HS Code 9030311000 Production Capacity 10000PCS/Year

Product Description

Original Testo 320 CO measurement (H2 compensated) Flue gas analyzer for heating system engineer No.0563 322075

Feature


• Six applications, one device: flue gas, flue draft, pressure, gas leak detection, CO ambient air and pressure difference measurements

• Integrated flue gas sensors with temperature sensor included; ultra-fine pressure sensors and a wide range of other sensors, ports and probes optional

• Rugged, high-quality design, high-resolution, multi-color display, self-explanatory menu guide

• TÜV-tested according to EN 50379, Parts 1-3 and 1^st BImSchV

Temperature measurements at radiators; flue gas parameter and pressure measurements at burners; CO measurements in the ambient air: the testo 320 allows you to carry out all measurements in and around heating systems with only one measuring device.

Product Description

The testo 320 High Efficiency Flue Gas Analyzer is a reliable measurement tool for installation, testing and maintenance of heating systems. The high-quality, professional design and easy-to-use features of the testo 320 High-Efficiency Flue Gas Analyzer help you to perform all heating-related parameters measurements from one instrument. The rugged enclosure of the testo 320 High Efficiency Flue Gas Analyzer is specifically designed for everyday use in harsh environments.
Well-structured measurement menus, designed according to different countries and built-in menu programs effectively simplify the operation. All readings are displayed on a high resolution color display that can be used in a variety of lighting situations. The testo 320 High Efficiency Flue Gas Analyzer also has a memory with 500 readings.

Testo 320 Efficient Flue Gas Analyzer - Instrument Features

The testo 320 high-efficiency flue gas analyzer is equipped with 1 flue gas sensor - one is an O2 sensor, and the other is a CO sensor. At the same time, there is a combustion air temperature sensor at the bottom of the instrument, and a thermocouple signal interface is integrated in the flue gas sampling probe interface. This helps you achieve simultaneous measurement of temperature, oxygen and carbon monoxide as well as other various parameters.
  The portable flue gas analyzer also automatically calculates relevant flue gas parameters such as CO2 value, boiler combustion efficiency, and flue gas loss.
At the same time, there are plenty of different sensors and probes available for your choice. Including porous probes, flexible flue gas probes and precision pressure probes. This precise pressure probe helps you to measure the smoke pumping force and differential pressure synchronously with other parameters



Testo 320 flue gas analyzer application



Six applications. One instrument:

(1)Smoke measurement
(2)Smoke extraction measurement
(3)Flue gas flow rate and static pressure measurement

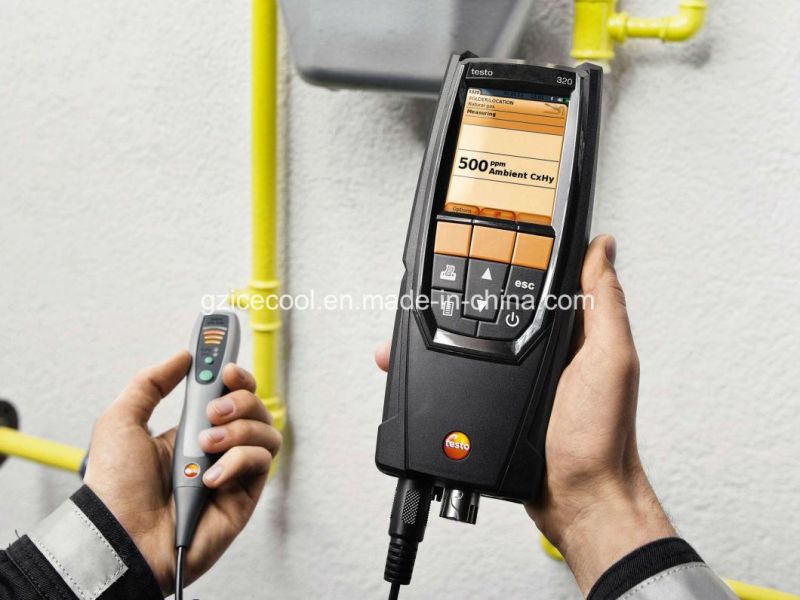

(4)Flammable gas leak detection
(5)Environmental CO Measurement
(6)Temperature difference measurement
Helps you quickly and safely monitor and detect heating units, radiators, and burners

Delivery Scope

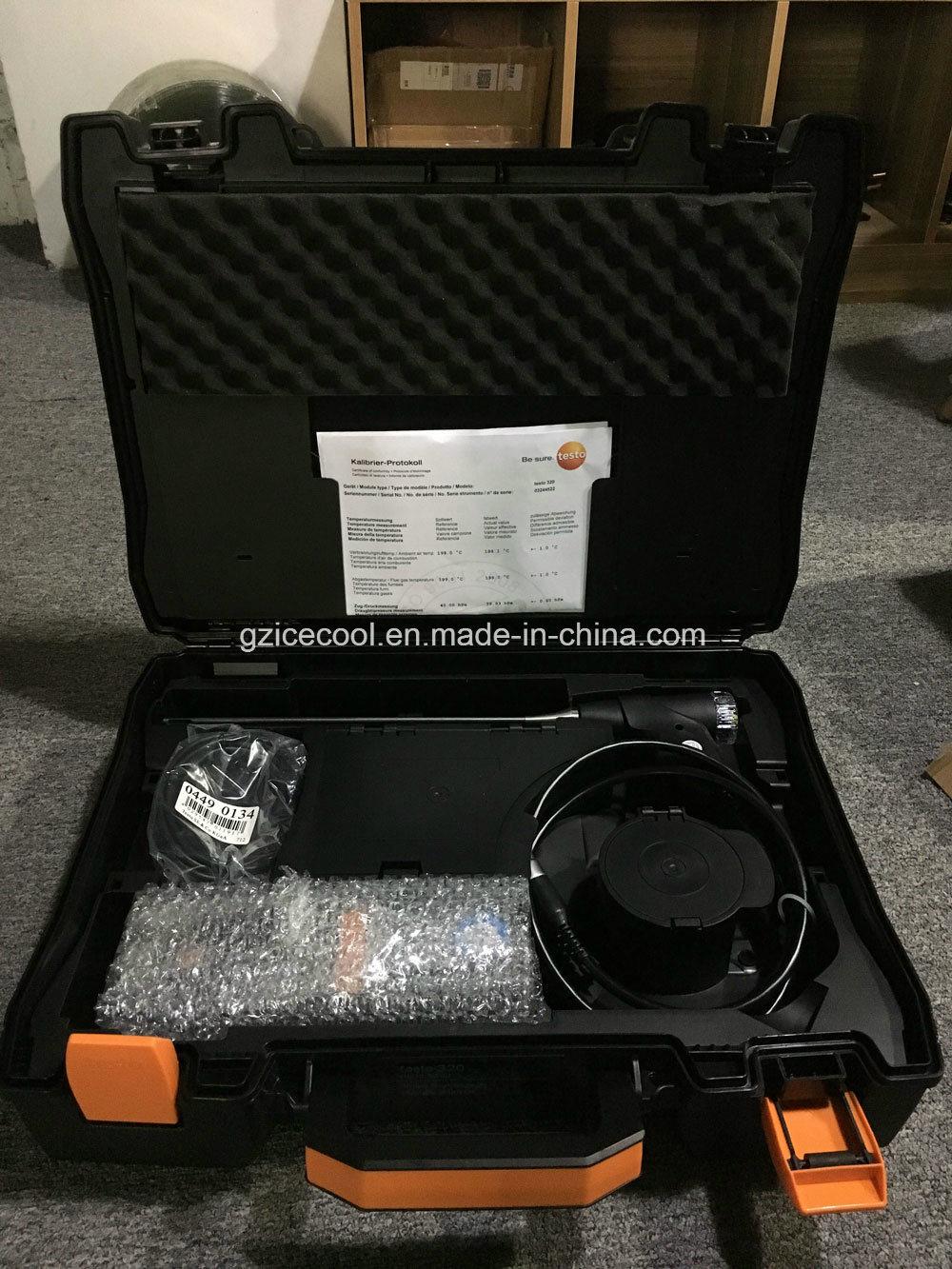

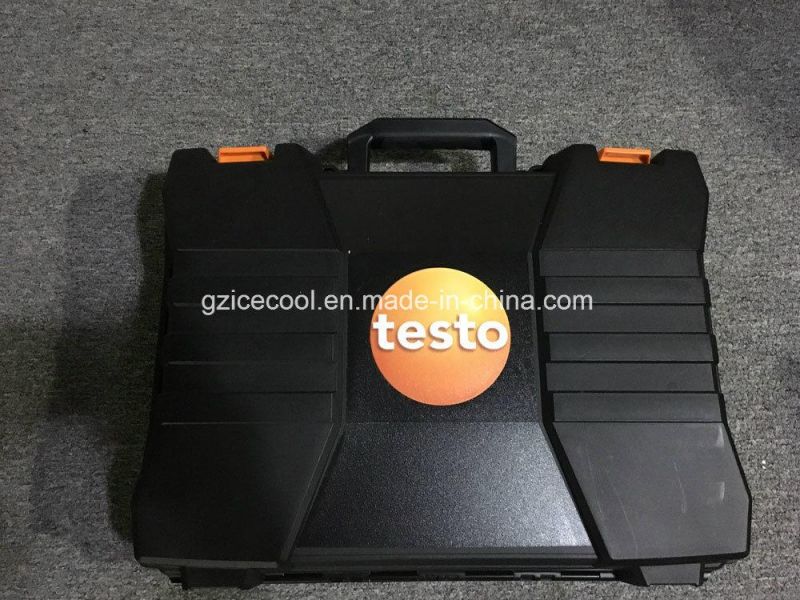

Testo 320 flue gas analyzer, O2 sensor and high quality instrument box.



Choose you need model:


(1) Testo 320 Set 1      (0563 322070) Flue gas analyzer


(2) Testo 320 Set 2        (0563 322075) Flue gas analyzer



	Different	Measuring range	Accuracy (± 1 digit)	Resolution	Adjustment time t90
Testo 320 Set 1           (0563 322070)	CO measurement (without H2-compensation)	0 to 4 000 ppm	±20 ppm  (0 to 400 ppm) ±5 % of m.v.  (401 to 2 000 ppm) ±10 % of m.v.  (2 001 to 4 000 ppm)	1 ppm	< 60 sec
Testo 320 Set 2           (0563 322075)	CO measurement (H2-compensated)	0 to 8 000 ppm	±10 ppm or ±10 % of m.v.  (0 to 200 ppm) ±20 ppm or ±5 % of m.v.  (201 to 2 000 ppm) ±10 % of m.v.  (2 001 to 8 000 ppm)	1 ppm	< 40 sec
Testo 320 Set 1            (0563 322070)	Option COlow measurement (H2-compensated)	0 to 500 ppm	±2 ppm  (0 to 39.9 ppm) ±5 % of m.v.  (remaining meas. range)	0.1 ppm	< 40 sec
Testo 320 Set 2            (0563 322075)	Ambient CO measurement (with CO probe)	0 to 500 ppm	±5 ppm (0 to 100 ppm) ±5 % of m.v. (> 100 ppm)	1 ppm

Technical Data


	Measuring range	Accuracy (± 1 digit)	Resolution	Adjustment time t90
Temperature	-40 to +1 200 °C	±0.5 °C (0 to +100.0 °C) ±0.5 % of m.v. (remaining meas. range)	±0.1 °C  (-40 - +999.9 °C) 1 °C (> +1 000 °C)
Draught measurement	-9.99 to +40 hPa	±0.02 hPa or ± 5 % of m.v.  (-0.50 to +0.60 hPa) ±0.03 hPa (+0.61 to +3.00 hPa) ±1.5 % of m.v. (+3.01 to +40.0 hPa)	0.01 hPa with fine  draught option 0.001 hPa
Pressure measurement	0 to +300 hPa	±0.5 hPa (0.0 to +50.0 hPa) ±1 % of m.v. (+50.1 to +100.0 hPa) ±1.5 % of m.v. (remaining meas. range)	0.1 hPa with fine  draught option 0.01 hPa
O2 measurement	0 to 21 vol.%	±0.2 vol.%	0.1 vol.%	< 20 sec
CO measurement (without H2-compensation)	0 to 4 000 ppm	±20 ppm (0 to 400 ppm) ±5 % of m.v. (401 to 2 000 ppm) ±10 % of m.v. (2 001 to 4 000 ppm)	1 ppm	< 60 sec
CO measurement (H2-compensated)	0 to 8 000 ppm	±10 ppm or ±10 % of m.v.  (0 to 200 ppm) ±20 ppm or ±5 % of m.v.  (201 to 2 000 ppm) ±10 % of m.v.  (2 001 to 8 000 ppm)	1 ppm	< 40 sec
Efficiency testing (Eta)	0 to 120%		0.10%
Flue gas loss	0 to 99.9%		0.10%
CO2 determination digital calculation from O2	Display area 0 to CO2 max	±0.2 vol.%	0.1 vol.%	< 40 sec
Option COlow measurement (H2-compensated)	0 to 500 ppm	±2 ppm (0 to 39.9 ppm) ±5 % of m.v.  (remaining meas. range)	0.1 ppm	< 40 sec
Ambient CO measurement (with CO probe)	0 to 500 ppm	±5 ppm (0 to 100 ppm) ±5 % of m.v. (> 100 ppm)	1 ppm
Gas leak measurement for combustible gases (with gas leak detector probe)	Display area 0 to 10 000 ppm CH4 / C3H8	Signal visual indication (LED) audible indication by buzzer
Ambient CO2 measurement (with ambient CO2 probe)	0 to 1 vol.% 0 to 10 000 ppm	± 50 ppm or ± 2 % of meas. val.  (0 to 5 000 ppm) ± 100 ppm or ± 3 % of meas. val. (5 001 to 10 000 ppm)		< 2 sec
Differential pressure, flow velocity and temperature via fine pressure probe	±10 000 Pa 0.15 to 3 m/s max. -40 to  +1 200 °C (probe-dependent)	±0.3 Pa (0 to 9.99 Pa) plus ±1 digit ±3 % of m.v. (10 to 10 000 Pa)  plus ±1 digit ± 0.5 °C (-40 to +100 °C) ±0.5 % of m.v.  (remaining meas. range) plus probe inaccuracy	0.1 m/s 0.1 °C

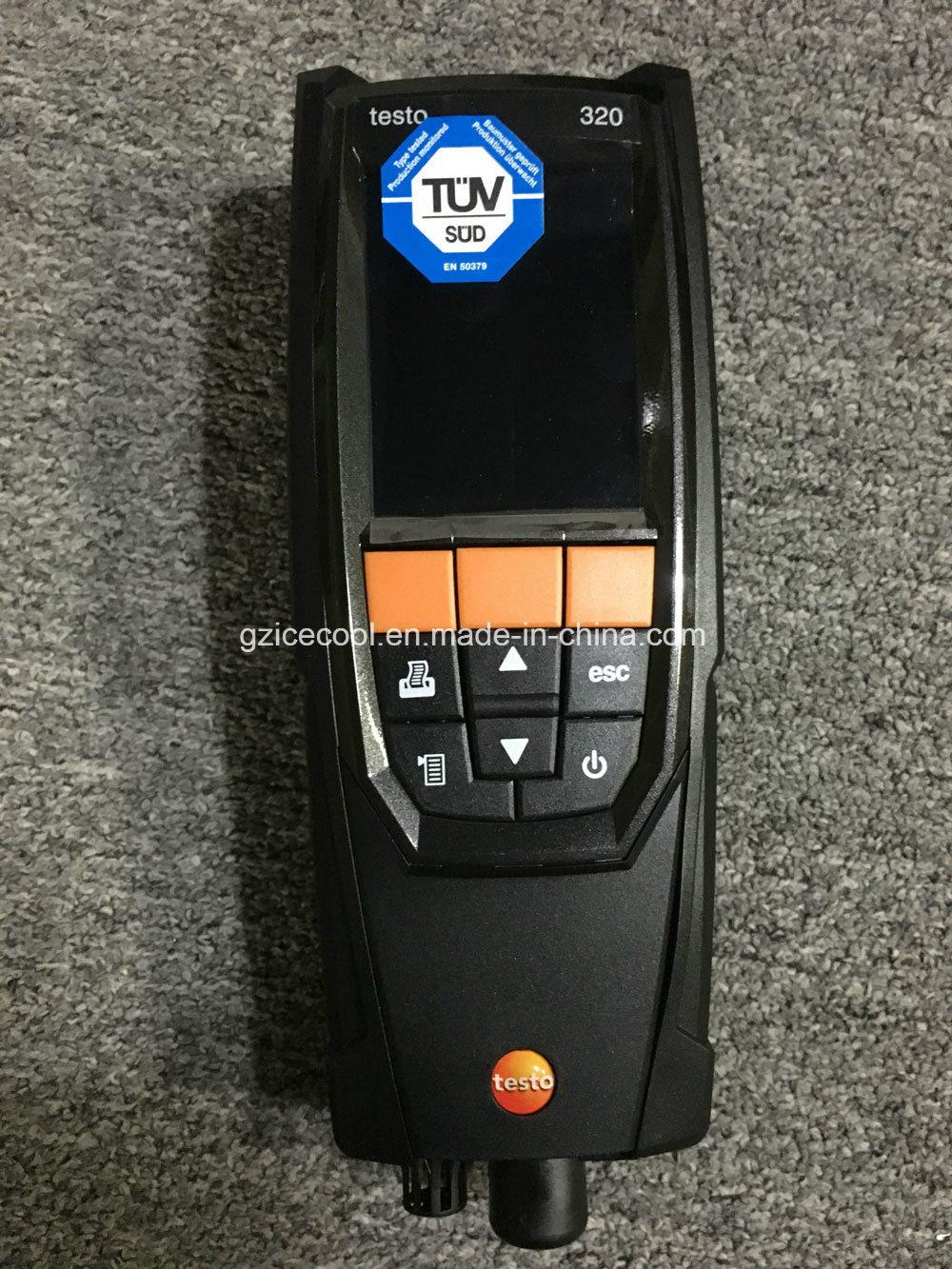

Product Photos:
