Multifunctional Grain Wood Paper Foam Inductive Moisture Meter
Shanghai Total Industrial Co., Ltd.- Type：Capacitance Moisture Meter
- Display：Digital
- Application：Texile, Paper, Food, Chemicals, Soil
- Portable：Portable
- Operating Mode：Keyboard
- Off Mode：Automatic
Base Info
- Model NO.：SR6825P,S,PS, SR6806, SR6812, SR6825G, SR6821
- Measurement Range：0.0%~95.7%
- Material：150 Non-Conducting Materials, Such as Wood, Fibre,
- Induction Depth：50mm
- Data Output：USB, Bluetooth
- Calibration：Automatic
- Transport Package：Carton
- Specification：CE
- Trademark：ShowRange
- Origin：China
- HS Code：9025800000
- Production Capacity：1000PCS,Month
Description
DimensionsUint: 150*65*30 mm Sensor: 175*76*76 mm Weight 690g (Not Including Batteries)

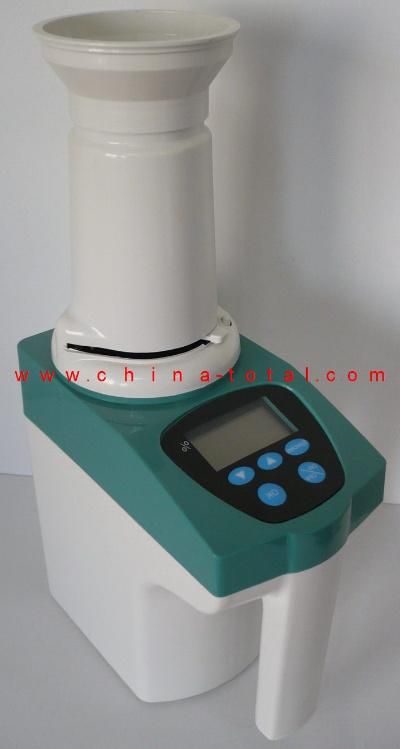

SR7802G Grain Moisture Meter
Features:
-Quick, accurate, convenient
-AC/DC power supply compatible
-High-brightness backlight LCD, clear and energy-saving
-Multi point calibration, error correction
-Low power consumption, automatic shutdown
-Automatic weighing and temperature compensation
-Volume-weight conversation display
Measuring objectives: foodstuff, and other non-metal granular sample, such as rice grain, wheat, corn, soybean and rape seed etc.
Measuring Principle: capacitance type
Specifications:
1.Grain Moisture meter for rice, wheat, corn, soybean, rapeseed etc.
2.LCD display
3.Automatic weighing, temperature compensation
Technical data:
-Measuring error: less than +/- 0.5%
-Repetitive error: less than 0.2%
-Measuring range: 0-40%
-Measuring time: less than 10 seconds
-Environmental temperature: 0-40°C
-Power supply: four 5#alkaline batteries or external 9V DC.
-Display model: high-brightness backlight LCD
-Net weight: 910gm
Packaging Detail: Each piece packed in aluminium alloy box and 4PCS/CTN, 65.5*43*41CM=0.12CBM, G.W/N.W: 14.5/12KGS.
SR-MS Infrared Moisture Meter
SR-MSA Infrared Moisture Meter
Quick (1-6 minutes) Determination of moisture of the measured object, using the principle of heating and drying, moisture values measured object is automatically displayed, the data is stable and accurate.
Measurement: powder form, granular, paste, liquid, organic and inorganic chemical raw materials, a variety of cereals, grain, seed, feed, starch, food meat, tobacco, tea paper, grass, soil sludge, textiles, fuel, resin, silica, plastic particles, coal, fertilizer, medicine, ceramics, wood, ore.
Remark: If test liquid, lipid moisture, please put some Quartz sand into the meter (in order to prevent becoming impervious membrane when heating).
Features:
1. High accuracy: infrared halogen moisture analyzer with fast and sensitive load cell.
2. Standard RS-232 interface: connect a PC or a printer.
3. Easy to operate: ergonomically designed handle plate, to avoid burns hot when placed in a sample taken, wing-shaped handle easily turned off heated lid.
4. Three kinds of drying process.
1). Standard Drying: direct heating to the set temperature after starting.
2). Slow Drying: After a preset time and gradually heated to the set temperature.
3). Fast drying: The continuous rapid heating 200°C drying under heating for 3 minutes after the temperature setting.
Technical parameters:
Weighing range: 110g
Weighing Accuracy: 0.005g(SR-MS); 0.001g(SR-MSA)
Moisture measuring range: 0~100%
Resolution: 0.01%
Temperature range: room temperature -200°C
Temperature Accuracy: +/-1°C
Drying Technology: Moisture heat lamp ring
Measuring results: Moisture content & dry weight and moisture content%, humidity%.
Pan size: 85mm.
Dimensions: 330*200*200mm
Voltage Power consumption AC 220V 50HZ about 1W (maximum power of about 480W)
SR7802G Grain Moisture Meter
Features:
-Quick, accurate, convenient
-AC/DC power supply compatible
-High-brightness backlight LCD, clear and energy-saving
-Multi point calibration, error correction
-Low power consumption, automatic shutdown
-Automatic weighing and temperature compensation
-Volume-weight conversation display
Measuring objectives: foodstuff, and other non-metal granular sample, such as rice grain, wheat, corn, soybean and rape seed etc.
Measuring Principle: capacitance type
Specifications:
1.Grain Moisture meter for rice, wheat, corn, soybean, rapeseed etc.
2.LCD display
3.Automatic weighing, temperature compensation
Technical data:
-Measuring error: less than +/- 0.5%
-Repetitive error: less than 0.2%
-Measuring range: 0-40%
-Measuring time: less than 10 seconds
-Environmental temperature: 0-40°C
-Power supply: four 5#alkaline batteries or external 9V DC.
-Display model: high-brightness backlight LCD
-Net weight: 910gm
Packaging Detail: Each piece packed in aluminium alloy box and 4PCS/CTN, 65.5*43*41CM=0.12CBM, G.W/N.W: 14.5/12KGS.
SR-MS Infrared Moisture Meter
SR-MSA Infrared Moisture Meter
Quick (1-6 minutes) Determination of moisture of the measured object, using the principle of heating and drying, moisture values measured object is automatically displayed, the data is stable and accurate.
Measurement: powder form, granular, paste, liquid, organic and inorganic chemical raw materials, a variety of cereals, grain, seed, feed, starch, food meat, tobacco, tea paper, grass, soil sludge, textiles, fuel, resin, silica, plastic particles, coal, fertilizer, medicine, ceramics, wood, ore.
Remark: If test liquid, lipid moisture, please put some Quartz sand into the meter (in order to prevent becoming impervious membrane when heating).
Features:
1. High accuracy: infrared halogen moisture analyzer with fast and sensitive load cell.
2. Standard RS-232 interface: connect a PC or a printer.
3. Easy to operate: ergonomically designed handle plate, to avoid burns hot when placed in a sample taken, wing-shaped handle easily turned off heated lid.
4. Three kinds of drying process.
1). Standard Drying: direct heating to the set temperature after starting.
2). Slow Drying: After a preset time and gradually heated to the set temperature.
3). Fast drying: The continuous rapid heating 200°C drying under heating for 3 minutes after the temperature setting.
Technical parameters:
Weighing range: 110g
Weighing Accuracy: 0.005g(SR-MS); 0.001g(SR-MSA)
Moisture measuring range: 0~100%
Resolution: 0.01%
Temperature range: room temperature -200°C
Temperature Accuracy: +/-1°C
Drying Technology: Moisture heat lamp ring
Measuring results: Moisture content & dry weight and moisture content%, humidity%.
Pan size: 85mm.
Dimensions: 330*200*200mm
Voltage Power consumption AC 220V 50HZ about 1W (maximum power of about 480W)
