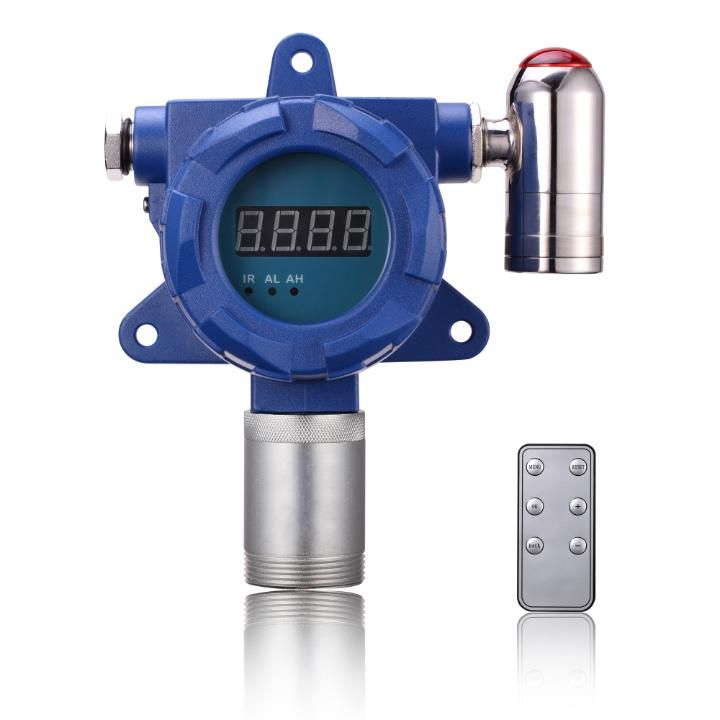

2021 Wall Mounted Ethylene Detector with Analog Output 4-20mA RS485 100ppm 1000ppm

Shenzhen Yuante Technology Co., Ltd.
  • Warranty：1 Year
  • Brand：Safegas
  • Customized：Customized
  • Portable：Non Portable
  • Certification：CE, ISO
  • Gas：C2H4

Base Info

  • Model NO.：YT-95H
  • Type：Electrochemical Gas Analyzer
  • Color：Blue and Sliver
  • Size：180*150*90mm
  • Transport Package：Carton Box
  • Specification：1.6kgs
  • Trademark：Safegas
  • Origin：China
  • HS Code：9027100010
  • Production Capacity：1000 Pieces, Day

Description

C2H4, EthyleneElectrochemical

0.01ppm, 1ppm etc

4-20MA, RS485, relay

Response Time

≤10S

Recovery Time

≤10S

Repeatability

≤±1%

Linearity error

≤±1%

Zero shift

≤±1%(F.S/year)

Display

High light nixie tube display

Operating language

G1/2 external thread explosion-proof

flexible pipe

Gas unit

ppm

Temperature

-20ºC~50ºC

Humidity

0-90%RH

Explosion-Proof

Ex d II CT6

Degree of protection

IP65

Alarm mode

Sound, light

Operating time

24h

Dimensions

180*150*90mm

Weight

≤1.6kg
