• Model NO.：SKZ111J
• Portable：Non-portable
• Physical Analysis Type：Infrared Online Moisture Meter
• Chemical Analysis Type：Infrared Online Moisture Meter
• Operating Mode：Touch Screen
• Heating Mode：Infrared Online Moisture Meter
• Off Mode：Manual
• Product Name：Inline Humidity Gauge 0-100% Infrared Online Wood
• Model：Skz111j
• Measuring Moisture Range：0-100%
• Measuring Distance：250mm±100mm
• Resolution：0.01%
• Accuracy：0.1%Fs-0.5%Fs
• Light Diameter：40mm
• Current Signal：4-20mA
• Weight：17.5kg
• Dimension：440*340*510mm
• Transport Package：Carton Box
• Specification：44*34*51cm
• Trademark：SKZ
• Origin：China
• HS Code：9027809990
• Production Capacity：1000

Basic Info.

Model NO. SKZ111J Portable Non-portable Physical Analysis Type Infrared Online Moisture Meter Chemical Analysis Type Infrared Online Moisture Meter Operating Mode Touch Screen Heating Mode Infrared Online Moisture Meter Off Mode Manual Product Name Inline Humidity Gauge 0-100% Infrared Online Wood Model Skz111j Measuring Moisture Range 0-100% Measuring Distance 250mm±100mm Resolution 0.01% Accuracy 0.1%Fs-0.5%Fs Light Diameter 40mm Current Signal 4-20mA Weight 17.5kg Dimension 440*340*510mm Transport Package Carton Box Specification 44*34*51cm Trademark SKZ Origin China HS Code 9027809990 Production Capacity 1000

Product Description

4-20mA conveyor belt 0-99% online moisture testers moisture test sensor tobacco humidity sensor

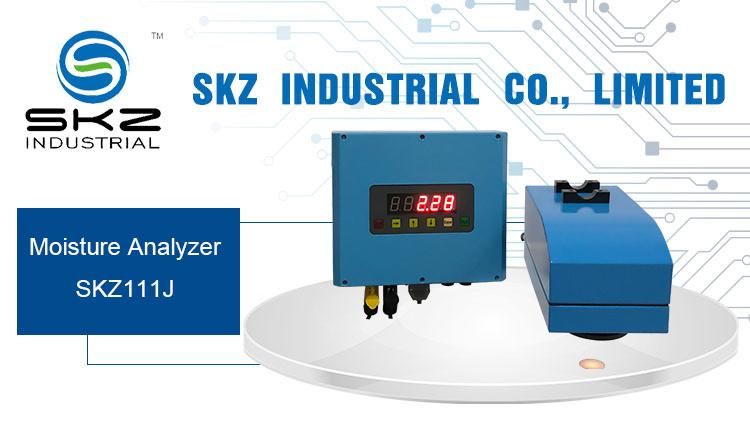

Infrared online moisture analyzer, non-contact, continuous, real-time, on-line measuring moisture. The distance is 20cm-40cm, high accuracy, wide range, and provides 4-20mA current signal, automated control,

Suitable for: food, metallurgy, tobacco, wood, paper processing, building materials, chemicals, mining, pharmaceutical, energy field.

Principle:
It is the use of water molecules on the infrared spectral absorption characteristics, to measure the moisture content of the measured object.
IR bands (0.78 ~ 2.5μm wavelength range of electromagnetic waves) absorption of water molecules is not the average, a strong wavelength at a low wavelength in the other. Use of this feature, infrared moisture analyzer emit different wavelengths of infrared light (5-beam, 6-beam, 8-beam, 10 beams), and receives the reflected signal measured material, to calculate the moisture content of the measured object.

Features:
1. Fast measurements:
With long-life high-speed brushless motor, imported high response infrared sensors, information processing chip FPGA + DSP + ARM9 combination, to ensure the real-time data acquisition, improve measurement precision and stability.
2. Reliability:
With dual optical detectors, the optical system for monitoring and compensation, moisture measurement from the sensor to ensure effects of aging.
3. Non-contact and fast response
Online fast continuous measurement and non-contact measurement, the measured object can fluctuate between 20-40cm, online dynamic real-time detection, to achieve a real-time control of product moisture content.
4. Stable performance, high precision
5-beam infrared moisture analyzer, its stability compared four beam and six beam greatly improved, in order to ensure the measurement more accurate and more stable.
5. Easy to install, easy to operate
Instrument easy installation, using a predetermined calibration, only need fix the intercept (zero) to complete the demarcation. Using single-chip digital operation, easy to operate.

Main Technical parameters:

Measuring range	0-99% (can OEM)
Measurement resolution	0.01%
Measuring accuracy	0.1%FS-0.5%FS
Repeatability	0.1%
Static accuracy	0. 1%
Light Diameter	40mm
Light beam	5
Infrared wavelength	1940nm
Infrared bandwidth	±50nm
Filtering range	0-2.5%
Measuring channel	10
Current signal	4-20mA
Upper and lower control	Self-edit by end user
Measuring time	0-60s
Sampling frequency	125 ms / time
Measuring distance	250mm±100mm
Measuring thickness	0.1-0.3mm

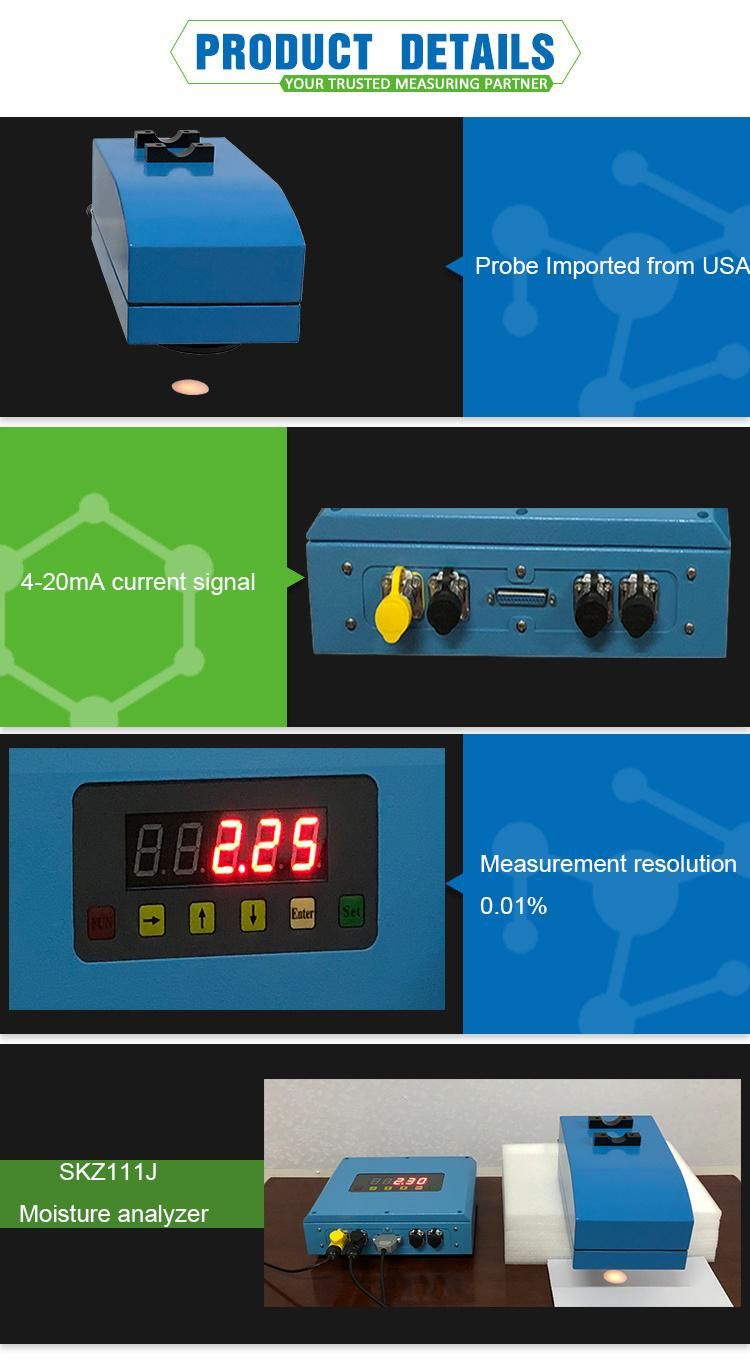

Display	LED 7 digits display
Cable length between probe and display	5m
I/O interface of probe	7 pin aviation socket, 10 core aviation socket
I/O interface of display device	3-core cable, 25 holes D-type socket, 4-core cable, 3-core cable(with 7-core aerial socket)
Power	220V/50HZ, 100W
Operation humidity	≤90%
Operation temperature	0-50ºC
Light interference	Not affected by external ambient light changes, no hood required for the probe
Temperature effect	With temperature automatic compensation is basically not affected by external temperature changes
Gross weight	17.5kg
Packing size	440*340*510mm
