• Model NO.：DYT-2
• Measurement Range：0°c to 70°c, or Better
• Transport Package：Wooden Case
• Specification：CE,ISO
• Trademark：TOP
• Origin：China
• HS Code：9027809900
• Production Capacity：300 Sets,Month

Basic Info.

Model NO. DYT-2 Measurement Range 0°c to 70°c, or Better Transport Package Wooden Case Specification CE/ISO Trademark TOP Origin China HS Code 9027809900 Production Capacity 300 Sets/Month

Product Description

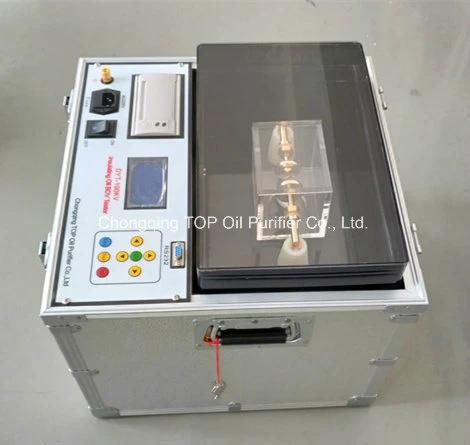

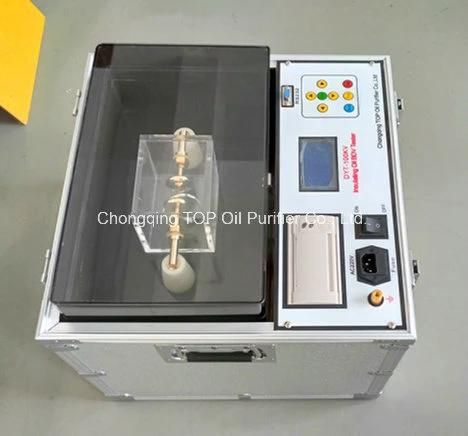

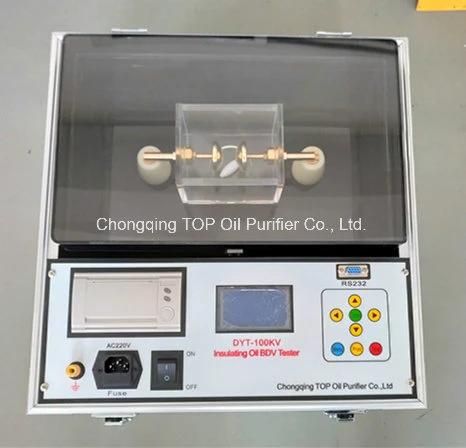

Portable Insulation Oil Dielectric Strength Tester (DYT-2)

Product Application
DYT-2 series Insulating oil dielectric strength tester is fully automatic micro controller based system,completely self-contained, compact and portable giving smooth variable test voltage from 0 to 60, 75, 80, 90 or 100 kV for testing the dielectric strength of insulating oil in accordance with all international standards like IEC156/IS6792/ASTM D 1816/ASTM D877/ UNE 21 specifications.
DYT-2  Insulating oil dielectric strength tester is improved on basis of DYT. It increases temperature measurement.All the selection can be done by touch pad with color LCD.




Product Features
1. Auto mode
DYT series insulating oil testers are fully automatic type.
1) IEC-156, IS6792, ASTM D 877, ASTM D 1816, UNE 21.
2) Withstand Test A
3) Withstand Test B
4) 5 Minute Test
5) User defined

2. 100 Test results storage capacity
DYT series insulating oil testers has a storage capacity of 100 test results which can be recalled and printed.

3. LCD display
DYT series insulating oil testers use LCD
for easy readability of the BDV test results.

4. Built in printer
The printer used is a thermal paper print outs.
The paper rolls can be easily installed by any person.
5. User Friendly RS 232 Interface
RS 232 interface is very easy to use to communicate stored data which can be saved in text format.

6. Safety protection
Safety interlocks are provided on the test chamber. Zero interlock protection to ensure operator safety.

7. Accurate Performance
DYT series not only has all basic functions of an insulating oil tester but also has unique features that are seldom seen in similar products. For e.g. PROOF test A, PROOF test B,

5 Minntes test, LCD to display all test data.

DYT series ensures high work efficiency and reliability in any tough environment.


Technical Parameter

(1) AC220V±10% power supply input
(2) Output voltage:AC 0V~80KV
(3) Rate of voltage rise: 0.5kv/s±10%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%
(4) Max test times: 9
(5) Init wait times:0~999s
(6) Stir time: 0~999s
(7) Wait time: 0~999s
(8) Measurement accuracy: ±(1% of full scale + 2 digits)  Resolution:0.1KV
(9) Temperature measurement:
Measurement range      : 0°C to 70°C, or better
Temperature resolution   : 1°C, or better
Operating temperature    : up to 45°C
(10)7 inch colorful LCD with touch pad
(11)Oil test vessel temperature measurement unit
(12) Weight 38kg
(13) Size: 460 mm*380mm*360mm

TEST OPTIONS
The main function of the tester is as follow:
1) IEC60156/IS6792/BS5874/VDE0370-5
2) User-defined
3) 5 minute test
4) ASTMD877
5) ASTMD1816
6)JIS C 2101-99(S)
7) Proof 'A'
8)Proof 'B'

Hello Friend!
Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. We consists of departments respectively for technological development, machinery manufacture, instrument manufacture, quality control etc. On basis of mature development and manufacture technology and highly qualified production management team, the products own high quality, easy operation, excellent performance and lone service life.

Customer satisfaction is our utmost priority thus, customer service team is always on the brink to help our customers with their queries at any time.
We believe in working as a unit with an attitude of complete trust and understanding and are determined to provide safe, reliable and competitively priced products to our customers.

TOP Oil Purifiers uses single or multi-stage filtration to remove, particulate, free water, and small quantities of dissolved water if necessary. The systems are usually customized to suite the specific customer application. Oil "regeneration", "reclamation", "recycling" are all terms used to describe the process of restoring used, aged, contaminated oils to "like new" reusable condition. The reclamation process removes free water, most dissolved water, dissolved gas, particulate, carbon contamination, acids, oxidation by products, most color bodies, wear metals, and most additive chemicals.

TOP Oil Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.
TOP Oil Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers, transformer substation electrical testing equipment and circuit detecting equipment. Main products are water content testers, surface/interfacial tension testers, flash point testers, kinematic viscosity testers, oil acidity testers, insulation oil dielectric strength testers, transformer characteristics testers, relay protection testers, high voltage testing equipment etc.



Our oil filtration machine:    Series ZY Single-Stage Vacuum Transformer Oil Purifier  Series ZYD Double High Vacuum Transformer Oil Purifier  Series ZYB Multiply-Function insulating oil treatment machine  Series TY Turbine Oil Purification Apparatus Series TYA Lubricating oil/ hydraulic oil purification unit  Series TYB Portable light Fuel oil purification machine  Series TYD Vacuum dehydrator  Series TYF Phosphate ester fire-resistance oil purifier  Series PL Plate pressure oil purifier  Series TYD Vacuum dehydrator  Series EFD Explosion protection filtration machine  Series BAM Press filtration system  Series ZKCC Vacuum pumping device  Series COP Cooking oil purification machine  Series CYS Centrifugal oil purification machine  Series JL Portable oil filtering and oiling machine    Our oil tester/ analyzer:  Series IIJ-II Insulating oil breakdown strength tester(oil BDV tester) Series HTJS-H Insulating oil dielectric tester (dielectric loss tester for insulating oil) Series HTJS-V Tan-Delta Tester (anti-jamming dielectric loss tester for HV electrical equipment) Series TP-3A Water content tester/ moisture sensor  Series TPV-8 Viscosity analyzer  Series TPC-3000 Flash point analyzer (close cup)  Series TPO-3000 Flash point analyzer (open cup)  Series CL-3 Interfacial tension analyzer
