• Model NO.：K1000-32(16)
• Max.Capacity of System：16,32 Channels
• Input Signal：4-20mA Signal
• Output Signal：RS-485
• Alarm Settings：High and Low Alarm Values
• Contact Capacity：5A 250V AC,5A 30V DC
• Display：LCD Display
• Sampling Rate：<0.1s,Channel
• Historic Recording：Fault or Alarm Records for 2000PCS Only for 16 Cha
• Communication Mode：RS-485
• Communication Range：No Reply<1200m
• Transport Package：Carton
• Specification：Approx. 10KGS
• Trademark：KELISAIKE or OEM
• Origin：Nanjing, China
• HS Code：8531100000
• Production Capacity：100PCS Per Month

Basic Info.

Model NO. K1000-32(16) Max.Capacity of System 16/32 Channels Input Signal 4-20mA Signal Output Signal RS-485 Alarm Settings High and Low Alarm Values Contact Capacity 5A 250V AC/5A 30V DC Display LCD Display Sampling Rate <0.1s/Channel Historic Recording Fault or Alarm Records for 2000PCS Only for 16 Cha Communication Mode RS-485 Communication Range No Reply<1200m Transport Package Carton Specification Approx. 10KGS Trademark KELISAIKE or OEM Origin Nanjing, China HS Code 8531100000 Production Capacity 100PCS Per Month

Product Description

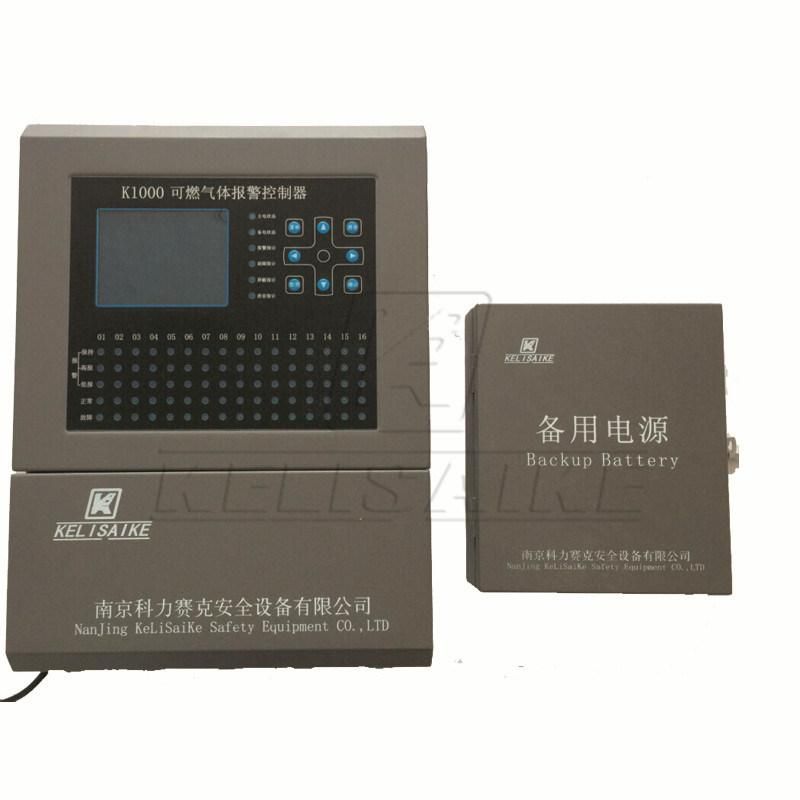

K1000-32 (16) Gas Detecting Controller


K1000 series gas detection controller provides simultaneous display and alarm function for up to 4/8/16/32 monitored variables, and easy to configure and use. The K1000 series control system can function as a critical alarm controller for toxic or combustible gases. The controllers with non-intrusive user interface are easy for installation and featuring a large graphical LCD display in hazardous areas.



>>>Key Features
1)Accepts up to 32 inputs ,either 4-20mA or ModBus transmitters
2)Internal power supply provides DC 24V and generates 15 watts total system power; optional 150 watts supply.
3)ModBus RS485 serial ports have simultaneous master/slave operation
4)Two independent alarm levels per channels feature 'Relay Acknowledge' and could control the external audible devices when it is up to the alarm value.
5)Standard common alarm relays for HORN and WARN
6)Wall-mounted installation
7)Graphic LCD display with backlight displays real time data and engineering units.
8)Backup power supply: over 2 hours
9)Response time less than 2 seconds
10)Circle detection will show real-time data(around 1-2 seconds show per channel)



>>>Technical Specification

Working Method:	Automatic Patrol
Alarm Level:	Two levels' alarm. Users can set it.
Input signal:	4-20mA
Measurement Accuracy:	0.1%(F.S)
Communication Interface:	RS485
Working Voltage:	AC 220V/50-60Hz
Capacity of System:	32/16 Channels
Display Method:	Multi-passage concentration real-time LED highlight display
Display Error:	<0.5%
Ambient Humidity:	10%-90% RH (non-condensing)
Ambient Temperature:	-10 ºC ~55 ºC
Weight:	Approximate 12 kgs
Installation:	Wall-mounted and Horizontal
Units:	%LEL/ppm
Dimension:	510*380*110(mm) for 16 channels, and its backup power is 275*235*75(mm)
Communication Distance:	Less than 1200m
