ASTM C1202 Concrete Chloride Penetration Tester

Beijing Samyon Instruments Co., Ltd.
  • Evaluation Capacity：C30 ~ C50 Portland Cement Concrete
  • Test Channels：6 Channels, 9 Channels, 12 Channels, 16 Channels
  • Host Dimension：385*345*145(mm)
  • Measurement Error：<1%
  • Work Environment：0 Centigrade ~ 50centigrade
  • Humidity：=< 75%

Base Info

  • Model NO.：SAM-C1202
  • Working Voltage：~220VAC 60VDC
  • Transport Package：Carton Case
  • Specification：SGS
  • Trademark：SAMYON
  • Origin：Cn
  • HS Code：903180
  • Production Capacity：100sets Per Month

Description

1. Evaluation capacityC30 ~ C50 portland cement concrete2. Working voltage~220VAC 60VDC3. Test channels6 channels, 9 channels, 12 channels, 16 channels optional4. Work environment0 centigrade ~ 50centigrade   Humidity =< 75%5. Measurement error<1%
1. Evaluation capacity: C30 ~ C50 portland cement concrete
2. Working voltage: ~220VAC 60VDC
3. Test channels: 6 channels, 9 channels, 12 channels, 16 channels optional
4. Work environment: 0 centigrade ~ 50centigrade   Humidity =< 75%
5. Measurement error: <1%

Equipment specification:
1. Host dimension: 385*345*145(mm)
2. Host weight: 5kg
3. Host outside dimension: 530*200*420
4. Vacuum saturated machine weight: 32kg
5. Vacuum saturated machine dimension: 750*680*400(mm)
6. Accessories weight: 9kg
7. Accessories dimension:  440*350*210(mm)
8. Total weight: 46kg

System configuration

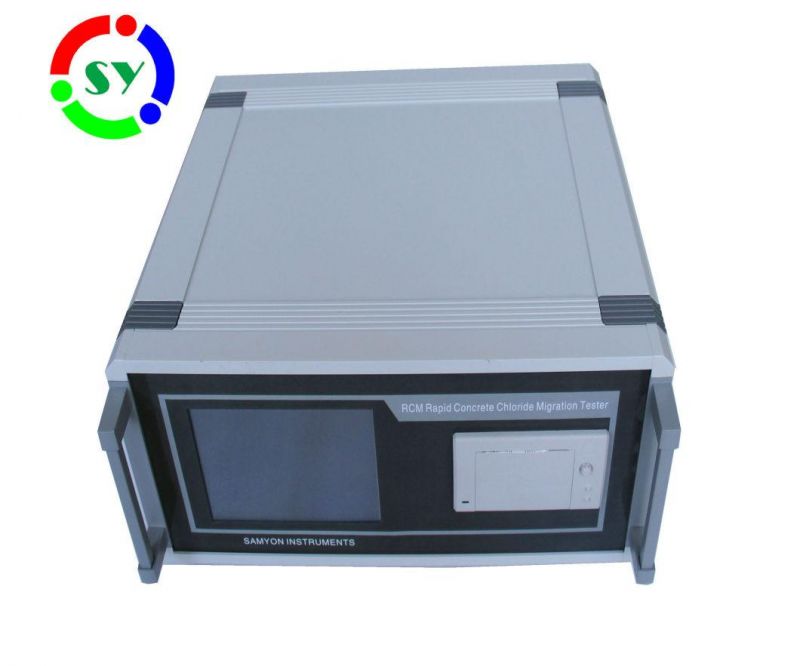

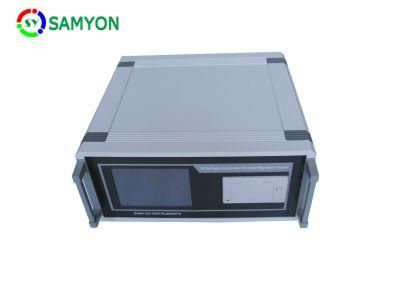

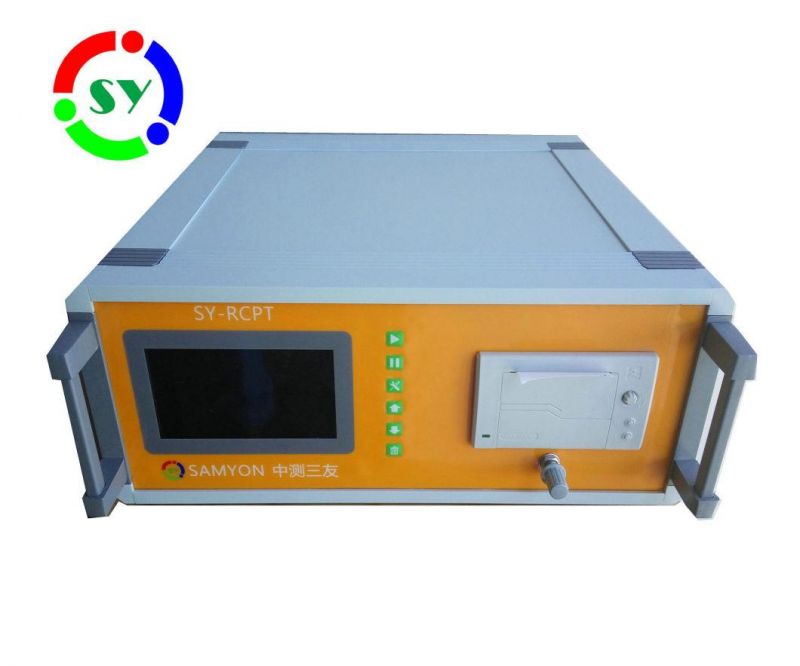

1. Concrete Resist Chloride Ion penetration tester

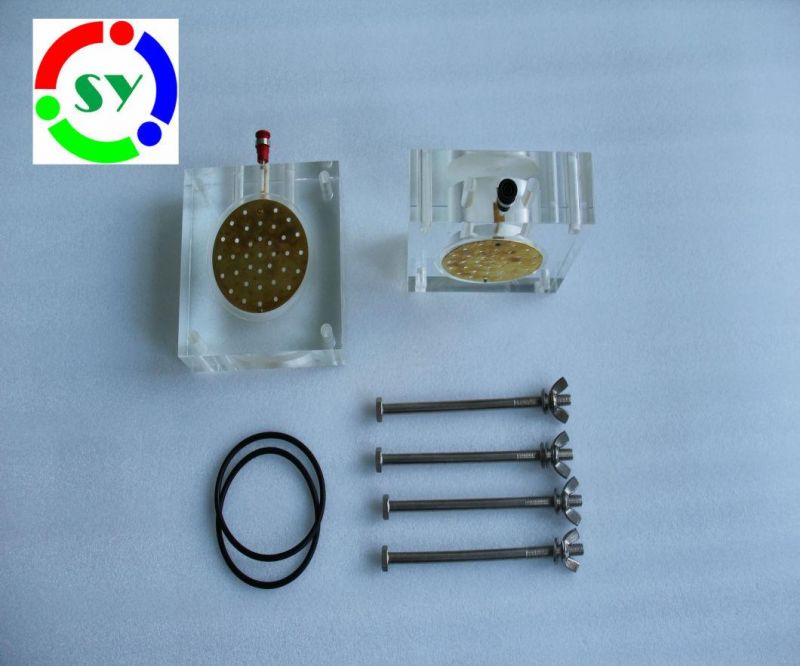

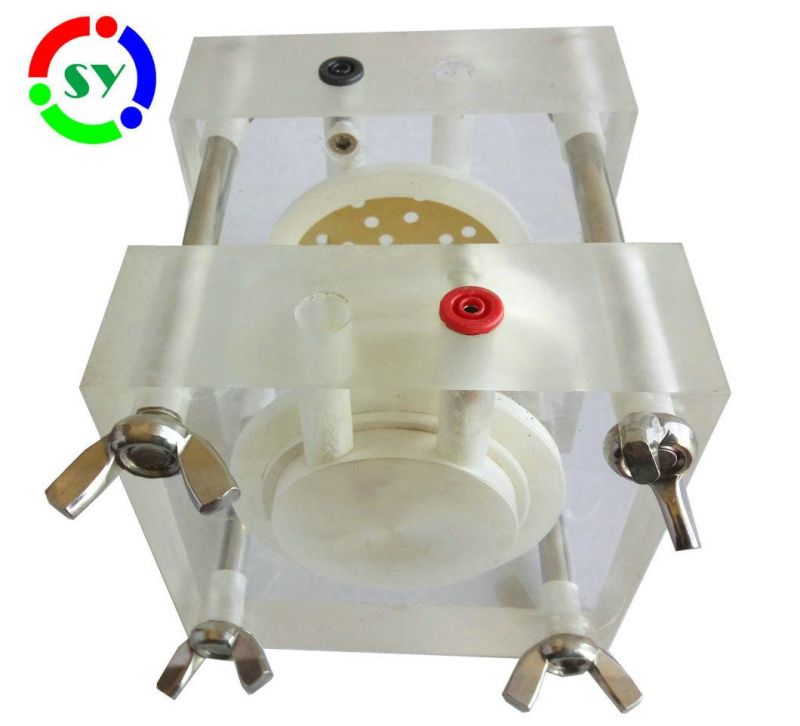

2. Specimen fixture
3. concrete vacuum saturated machine
