Analysis Instrument

Portable Butane C4h10 Gas Testing Equipment Test Equipment Gas Testing Machine Gas Leakage Test

SKZ International Co., Ltd.
  • After-sales Service:12 Months Warranty
  • Warranty:12 Months Warranty
  • Brand:Skz
  • Customized:Customized
  • Portable:Portable
  • Certification:CE

Base Info

  • Model NO.:SKZ1050-C4H10
  • Gas:C4h10
  • Type:Infrared Absorption Analyzer
  • Measure Range:0-2%Vol,100%Lel
  • Resolution:0.01%Vol,0.01%Lel
  • CE Certification:Exia II CT4, IP66
  • Response Time:Less Than 10s
  • Transport Package:Customed Foam Inner to Fixed The Detector, Aluminu
  • Specification:27X23X11 cm
  • Trademark:SKZ
  • Origin:China
  • HS Code:9027100090
  • Production Capacity:50000PCS,Year

Description

Gas Detected

Butane C4H10

Detection principle

Electrochemical principles

Sampling Method

Pump- suction, flow up 1L/min, pump suction size ten stalls adjustable

Data logger

100,000 sets of data can be stored, storage interval available set, minimum 5S, can be browse

Measure Range

0-2%Vol,100%LEL

Resolution

0.01%vol,0.01%lel

Precision

2% FS

Response Time

≤ 10S

Repeatability

≤ ± 1%

Zero shift

≤ ± 1% (F.S / Year)

Operating language

Support in English

Temperature

-40 ºC ~ 70 ºC

Explosion-Proof

Exia II CT4

Alarm mode

Sound, light, vibration

Dimensions

205*75*32mm

Recovery Time

≤ 10S

Linearity error

≤ ± 1%

Display

LCD

Gas unit

multiple gas unit

Humidity

0-95% RH

Degree of protection

IP66

Operating time

100 hours (off pump)

Weight(net)

300g

Portable Butane C4h10 Gas Testing Equipment Test Equipment Gas Testing Machine Gas Leakage Test

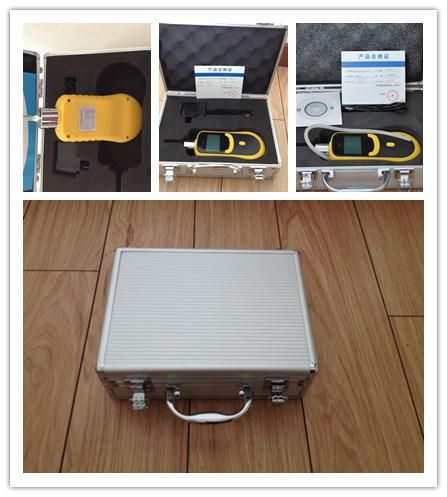

Packaging & Shipping
