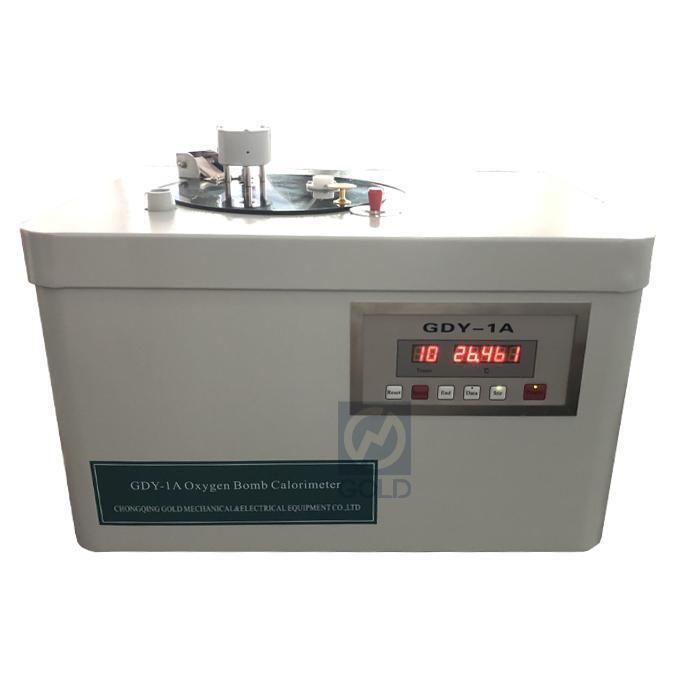

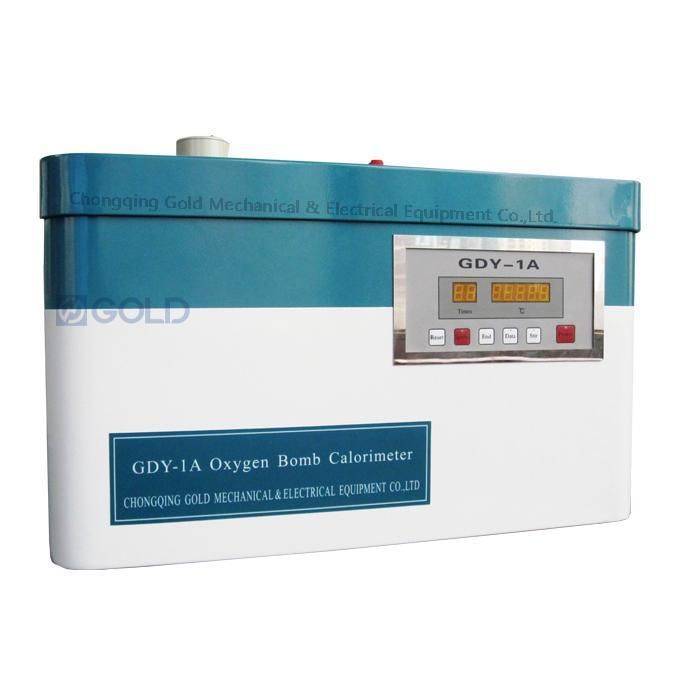

Research Institutions Oxygen Calorific Bomb Calorimeter for Coal

Chongqing Gold Mechanical & Electrical Equipment Co., Ltd.
  • After-sales Service：Provide 1 Year After-Sales
  • Warranty：Provide 1 Year After-Sales
  • Power Supply：AC220V±10%,50Hz
  • Mean Value of Heat Capacity：15 Kj,K
  • Measurement Accuracy for Heat Value：≤0.2%
  • Endured Pressure of Oxygen Bomb：20 MPa

Base Info

  • Model NO.：GDY-1A
  • Test Pressure in Oxygen Bomb：3 MPa
  • Temperature Controlling Range：10ºC~35ºC
  • Temperature Resolution：0.001 ºC
  • Temperature Saved：31 Pieces
  • Ambient Temperature：20ºC±5ºC
  • Transport Package：Standard Wooden Case
  • Specification：600mm*460mm*430mm
  • Trademark：Gold
  • Origin：Chongqing, China
  • HS Code：9031809090
  • Production Capacity：50piece,Month

Description

NoItemValue1Heat capacity14000 J/K~15000 J/K2Resolution0.001 K3Measurement accuracy± 60J/g4Repeatability≤0.2% (Grade C)5Pressure endurance of oxygen bomb20 MPa6Temperature measurement range10 °C~35 °C7Ambient temperature20±5 °C, the fluctuation is not more than 1°C during a test8Data saved31 pieces9Relative humidity≤85%10Power supplyAC 220V±5%, 50 Hz11Dimension600mm×460mm×430mm
