• Model NO.：GT-WD2200
• Model No：Gt-Wd2200
• Sensor Type：Smart Sensor Module
• Accuracy：±5%Fs
• Working Method：Natural Diffusion
• Working Voltage：DC24V±25%
• Signal Output：4-20mA Signal or RS485 Signal
• Ingress Protection：IP65
• Transmission Distance：≤1000m
• Environmental Air Pressure：86kpa-106kpa
• Transport Package：Carton
• Specification：Dimension: 204mmx220mmx105mm
• Origin：China Mainland
• Production Capacity：2000PCS

Basic Info.

Model NO. GT-WD2200 Model No Gt-Wd2200 Sensor Type Smart Sensor Module Accuracy ±5%Fs Working Method Natural Diffusion Working Voltage DC24V±25% Signal Output 4-20mA Signal or RS485 Signal Ingress Protection IP65 Transmission Distance ≤1000m Environmental Air Pressure 86kpa-106kpa Transport Package Carton Specification Dimension: 204mmx220mmx105mm Origin China Mainland Production Capacity 2000PCS

Product Description

Description

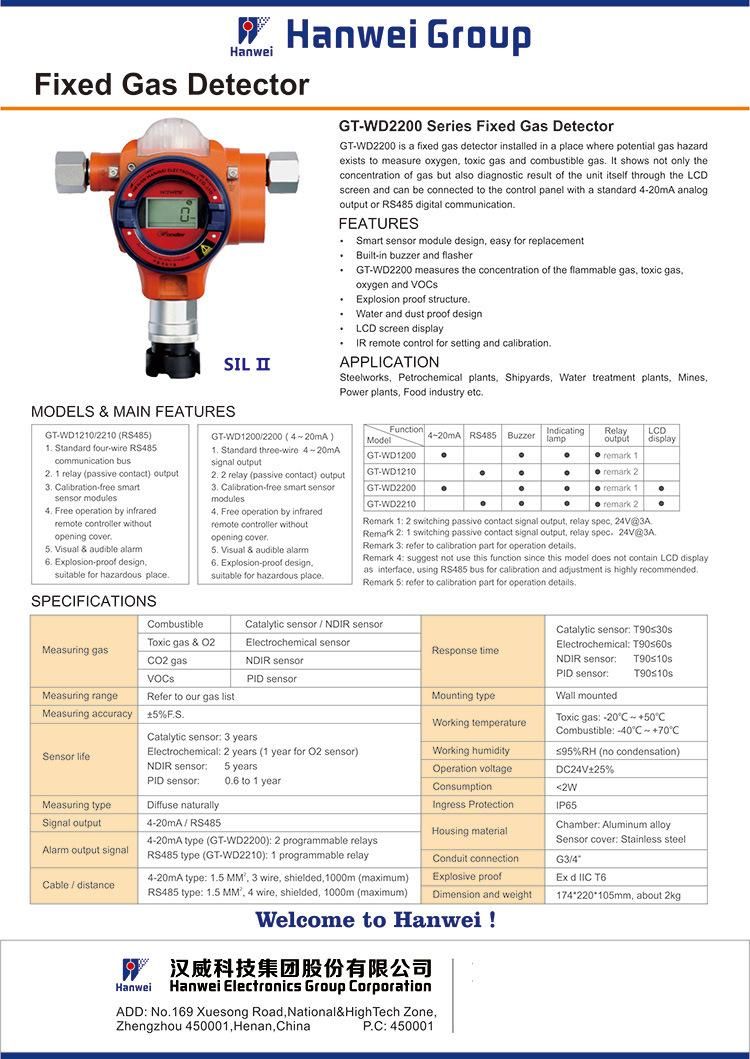

GT-WD2200 DC24V 0-100pm Fixed Nh3/H2s Toxic Gas Detector, appropriate for industrial application, continuously monitors for particular types of gases like LEL, H2, CO, H2S, O2, CO2 etc.

Applications
The GT-WD2200 DC24V 0-100pm Fixed Nh3/H2s Toxic Gas Detector can be used to reliably monitor combustible gases, CO and H2S etc. It is widely used in industrial fields where may has dangerous gases such as oil & gas industries, chemical plants and metallurgy industries.

Features
Smart sensor module, easy for sensor replacement
Two relay output for 4-20mA type

Technical Data
Working Method:Natural diffusion
Working Voltage:DC24V±6V
Power Consumption:≤3W
Accuracy:≤±3%LEL(flammable gas)/≤±5%FS(toxic gas)
Response Time(t90):flammable gas≤30s, toxic gas≤60s
Working Temperature:
-40ºC~70ºC(flammable gas)
-20ºC~50ºC(toxic gas/oxygen)
Working Humidity:≤95%RH(no dews)
Protection Grade:IP65
Environmental Pressure:86kPa-106kPa
Output Signal:4-20mA/RS485
external diameter 6mm-9mm(4-20mA)/ 1.5 mm2×4(RS485)
Transmission Distance:≤1000m
Dimension:204 mm×220 mm×105 mm
Weight:about 2kg

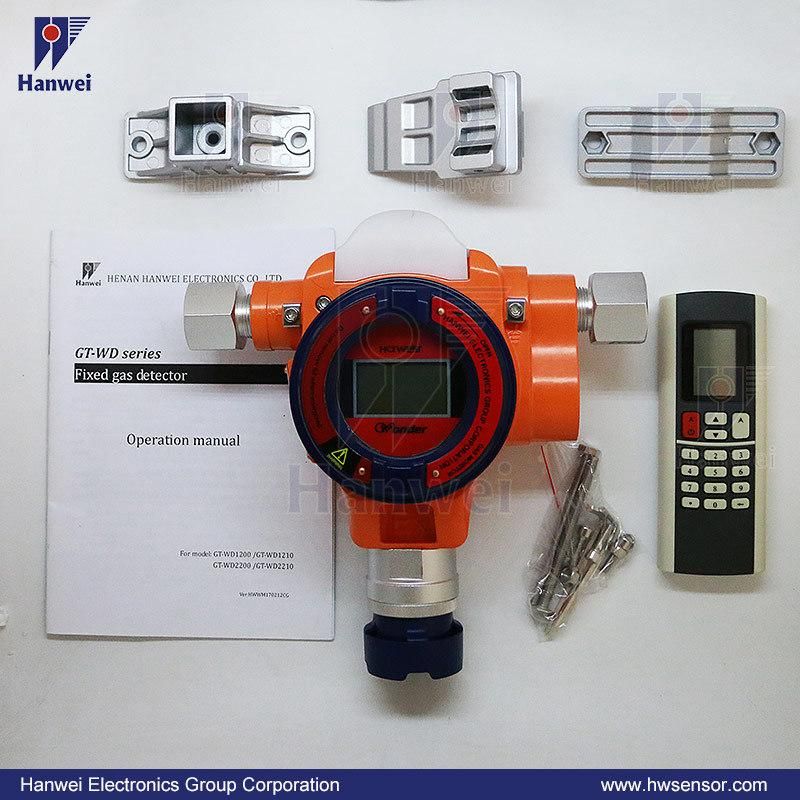

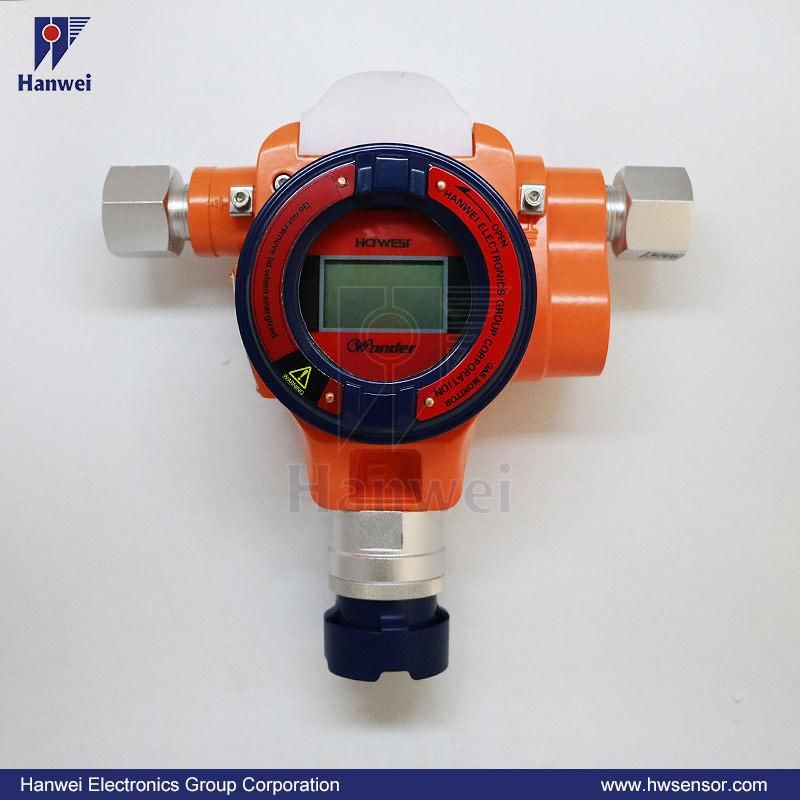

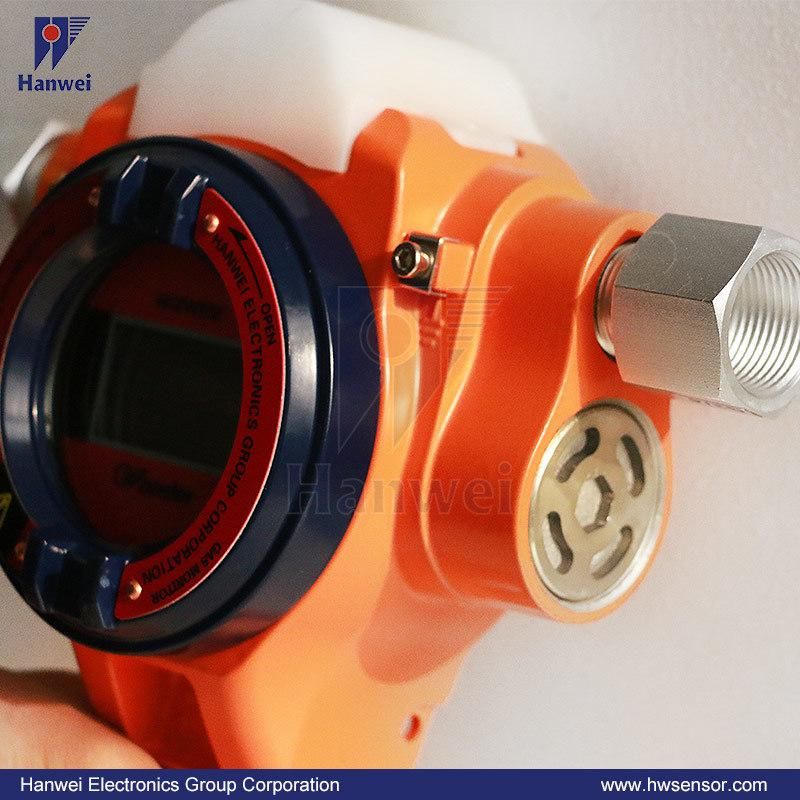

Product Pictures
