Laboratory Industrial pH Orp Conductivty Do Ion Sensor Probe Electrode
Shanghai Total Industrial Co., Ltd.- Portable：Portable
- Appliance：Food Analysis, Medical Research, Biochemistry
- Certification：ISO9001, CE
- Measurement Range：0 to 14 pH
- Terminal Blocks：BNC Head, Pin-Type Inserts, Y-Piece Inserts
- Overall Connection：3,4 Inch Outer Thread
Base Info

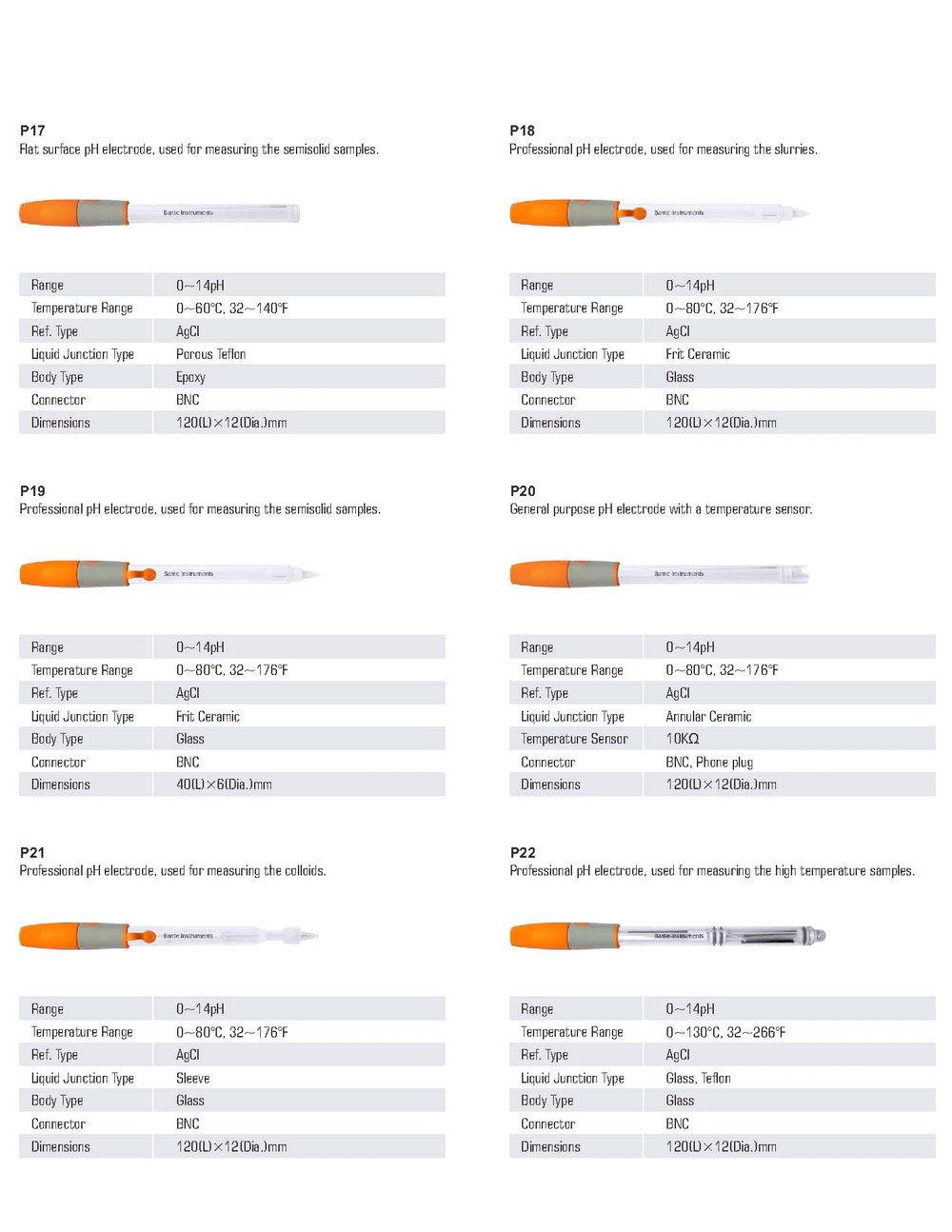

- Model NO.：65-IP, P17, P18, E-201, E201W, E201WM, 201DH PH
- Temp：0c ~ 90c
- Reference Cell：AG, Agcl, Kcl
- Application：Fruit, Skin, Meats, Cheese High-Temp Liquid
- Transport Package：Carton
- Specification：Dia12 * Length 140 mm
- Trademark：ShowRange
- Origin：China
- HS Code：9025800000
- Production Capacity：5000PCS,Month
Description
PH Combined Electrode with Glass Body
Note: Difference between the two models is the reference cell electrolyte. 65-IP is with solution form and can be refilled. 65-IIP is in gel form which last life time, not need to refill.
Products:
CT-1001 PH electrode using international advanced solid dielectric and a large area of PTFE liquid interface, clogging, easy to maintain
Reference long-distance dispersal routes, greatly extending electrode life in harsh environments
The PH electrode made of high quality low-noise cable, allows the model output greater than 40 meters in length, no interference
High accuracy, fast response, good repeatability
Online PH detection are widely used in medicine, chemical industry, environmental protection, electroplating and other industries
PH electrode Features:
PPS / PC shell, the upper and lower 3/4NPT pipe thread, easy installation, no maintenance
No need to supplement the dielectric, little maintenance
Correct operation and long service life
PH electrode with similar electrode interchangeable abroad
PH electrode technology Data:
Installation:
PH electrode installation: flow-through, sunk, flanges, pipes type.
PH electrode ordering guide:
PH electrode and instrument cable plug: BNC connector, PIN connector, Y blade connector (please indicate when you order)
Electrode cable length: 5 meters standard, can be customized according to user requirementsProducts:
CT-1001C PH electrode using international advanced solid dielectric and a large area of PTFE liquid interface, clogging, easy to maintain
Reference long-distance dispersal routes, greatly extending electrode life in harsh environments
The PH electrode made of high quality low-noise cable, allows the model output greater than 40 meters in length, no interference
High accuracy, fast response, good repeatability
Online PH detection are widely used in medicine, chemical industry, environmental protection, electroplating and other industries
PH electrode Features:
PPS / PC shell, the upper and lower 3/4NPT pipe thread, easy installation, no maintenance
No need to supplement the dielectric, little maintenance
Correct operation and long service life
PH electrode with similar electrode interchangeable abroad
PH electrode technology Data:
Installation:
PH electrode installation: flow-through, sunk, flanges, pipes type.
PH electrode ordering guide:
PH electrode and instrument cable plug: BNC connector, Y blade connector (please indicate when you order)
Electrode cable length: 10 meters standard, can be customized according to user requirements.
CT-1002 High temperature Glass type PH electrode
The industry PH electrode adopt specific glass, electropolar sense velamen and gelation electrolyte salt. It can meet international standards with the express correspondence and good stability.
Performance Features
1. Convenient and don't need to add electrolyte
2. Gelation electrolyte salt can effectively prevent from Electrode poisoning. e.g.: S2-, CN-
3. Annular polyethylene solution can counteract stain. So continued-online detection is supported.
4. Different sensitive membrane electrode can be applied for different kinds of PH measurement. And it has lower electrode resistance, express correspondence and good stability.
Use Soap
1. The electrode can work with various types of ph meter.
2. The electrode adopts connector way with the 3/4 inches standard screw thread.
3. The electrode can work for 1 year normally. But the life of the electrode will be reduced if there is a poor environment or an improper maintenance.
Parameter
Note: temperature compensation resistance choice: PT1000, PT100, PT50, 10K, 20K etc.
Installation:
PH electrode installation: flow-through, sunk, flanges, pipes type.
PH electrode ordering guide:
PH electrode and instrument cable plug: BNC connector, Y blade connector (please indicate when you order)
Electrode cable length: 5 meters standard, can be customized according to user requirements.
Note: Difference between the two models is the reference cell electrolyte. 65-IP is with solution form and can be refilled. 65-IIP is in gel form which last life time, not need to refill.
| Temperature electrode (for PH meters) | |||
| E-0101 (for PH-0101) | |||
| type | specification | applicable temperature | application |
| E201WM PH Dia.14×length 85mm BNC | MeasuringRange: 0.00~14.00PH Resolution:0.01PH OperatingTemperature: 0°C~50°C AutomaticTemperature Compensation (ATC): 0°C~50°C Connection: BNC socket | 0~50°C | *(For PHT-026, 027, 028, PH-025, PH-02636, PH-02736, PH-0253, PH-025M, PH-025N) |
| E201WM ORP Dia.14×length 85mm BNC | Measuring Range: 0 ~ ±1999mV Resolution: 1mV Accuracy: ±0.1% F·S±1 digit Connection: 300cm cable with BNC socket Operating Temperature: 0°C~50°C ATC Weight: 41g | 0~50°C | *(For PHT-027, 028) |
| E201WM Conductivity Dia.14×length 85mm BNC | Measuring Range: 0~19.99ms/cm, 0~1999us/cm Resolution: 1us, 0.1mS Accuracy: ±1.5%+2 digits Connection: with BNC socket Operating Temperature: 0°C~50°C ATC K=1 Weight: 41g | 0~50°C | *(For PHT-026, 027, 028, PH-02636, PH-02736) |
| type | specification | applicable temperature | application |
| 201DH PH 165mm×26mm×26mm | MeasuringRange: 0.00~14.00PH Resolution:0.01PH OperatingTemperature: 0°C~50°C AutomaticTemperature Compensation (ATC): 0°C~50°C Connection: BNC socket | 0~50°C | *(For Online controller) Note: Waterproof, Suitable for Aquarium. |
| 201DH ORP 165mm×26mm×26mm BNC | Measuring Range: 0 ~ ±1999mV Resolution: 1mV Accuracy: ±0.1% F·S±1 digit Connection: 300cm cable with BNC socket Operating Temperature: 0°C~50°C ATC Weight: 41g | 0~50°C | *(For Online controller) Note: Waterproof, Suitable for Aquarium. |
| type | specification | applicable temperature | application |
| 208DH Conductivity electrode 165mm×26mm×26mm BNC (or cut-off ends) | Measuring Range: 0~1999us/cm, 0~199.9mS Resolution: 1us, 0.1mS Accuracy: ±1.5%+2 digits Connection: with BNC socket Operating Temperature: 0°C~50°C ATC K=1 Weight: 41g | 0~50°C | *(For CD-208, CD-308) Note: Waterproof, Suitable for Aquar |
| model | PH range | Resolution | °C | MPa | connect | MΩ (25°C) | Zero electricity (PH) | Theory slope % | Use range |
| CT-1001 sewage | 0~14 | ±0.01PH | 0~50 | 0.6 | cable | ≤250 | 7±0.5 | >95 | Environment -protection sewage online check |
| CT-1001 water | 0~14 | ±0.01PH | 0~50 | 0.6 | cable | ≤80 | 7±0.5 | >95 | High purify water |
CT-1001 PH electrode using international advanced solid dielectric and a large area of PTFE liquid interface, clogging, easy to maintain
Reference long-distance dispersal routes, greatly extending electrode life in harsh environments
The PH electrode made of high quality low-noise cable, allows the model output greater than 40 meters in length, no interference
High accuracy, fast response, good repeatability
Online PH detection are widely used in medicine, chemical industry, environmental protection, electroplating and other industries
PH electrode Features:
PPS / PC shell, the upper and lower 3/4NPT pipe thread, easy installation, no maintenance
No need to supplement the dielectric, little maintenance
Correct operation and long service life
PH electrode with similar electrode interchangeable abroad
PH electrode technology Data:
| Model | CT-1001 |
| Temperature (º C) | 0~50°C |
| Connection form | Cable (shielded cable) |
| Zero potentiometer (PH) | 7±0.5 |
| PH range | 0 ~ 14 |
| Withstanding pressure (MPa) | 0.6 |
| Internal resistanceMΩ(25ºC) | 250 |
| Theoretical percentageslope% | >95 |
| Terminal Blocks | BNC head, Pin-type inserts, Y-piece inserts |
| Overall connection | 3/4 inch outer thread |
| Size | 188*31mm |
PH electrode installation: flow-through, sunk, flanges, pipes type.
PH electrode ordering guide:
PH electrode and instrument cable plug: BNC connector, PIN connector, Y blade connector (please indicate when you order)
Electrode cable length: 5 meters standard, can be customized according to user requirementsProducts:
CT-1001C PH electrode using international advanced solid dielectric and a large area of PTFE liquid interface, clogging, easy to maintain
Reference long-distance dispersal routes, greatly extending electrode life in harsh environments
The PH electrode made of high quality low-noise cable, allows the model output greater than 40 meters in length, no interference
High accuracy, fast response, good repeatability
Online PH detection are widely used in medicine, chemical industry, environmental protection, electroplating and other industries
PH electrode Features:
PPS / PC shell, the upper and lower 3/4NPT pipe thread, easy installation, no maintenance
No need to supplement the dielectric, little maintenance
Correct operation and long service life
PH electrode with similar electrode interchangeable abroad
PH electrode technology Data:
| Model | CT-1001C |
| Temperature (º C) | 0~50°C |
| Temperature compensation | Yes |
| Connection form | Cable (shielded cable) |
| Zero potentiometer (PH) | 7±0.5 |
| PH range | 0 ~ 14 |
| Resolution | ±0.01PH |
| Withstanding pressure (MPa) | 0.6 |
| Internal resistanceMΩ(25ºC) | 250 |
| Theoretical percentageslope% | >95 |
| Terminal Blocks | BNC head, Y-piece inserts |
| Overall connection | 3/4 inch outer thread |
| Size | 188*31mm |
PH electrode installation: flow-through, sunk, flanges, pipes type.
PH electrode ordering guide:
PH electrode and instrument cable plug: BNC connector, Y blade connector (please indicate when you order)
Electrode cable length: 10 meters standard, can be customized according to user requirements.
CT-1002 High temperature Glass type PH electrode
The industry PH electrode adopt specific glass, electropolar sense velamen and gelation electrolyte salt. It can meet international standards with the express correspondence and good stability.
Performance Features
1. Convenient and don't need to add electrolyte
2. Gelation electrolyte salt can effectively prevent from Electrode poisoning. e.g.: S2-, CN-
3. Annular polyethylene solution can counteract stain. So continued-online detection is supported.
4. Different sensitive membrane electrode can be applied for different kinds of PH measurement. And it has lower electrode resistance, express correspondence and good stability.
Use Soap
1. The electrode can work with various types of ph meter.
2. The electrode adopts connector way with the 3/4 inches standard screw thread.
3. The electrode can work for 1 year normally. But the life of the electrode will be reduced if there is a poor environment or an improper maintenance.
Parameter
| model | PH range | Resolution | °C | MPa | connect | MΩ (25°C) | Zero electricity (PH) | Theory slope % | Use range |
| CT-1002 sewage | 0~14 | ±0.01PH | 0~90 | 0.4 | cable | ≤250 | 7±0.5 | >95 | Environment -protection sewage online check |
| CT-1002 water | 0~14 | ±0.01PH | 0~90 | 0.4 | cable | ≤80 | 7±0.5 | >95 | High purify water |
Installation:
PH electrode installation: flow-through, sunk, flanges, pipes type.
PH electrode ordering guide:
PH electrode and instrument cable plug: BNC connector, Y blade connector (please indicate when you order)
Electrode cable length: 5 meters standard, can be customized according to user requirements.
