• Model NO.：TP-508
• Trademark：TOP
• Origin：China
• HS Code：9027809900
• Production Capacity：280 Sets,Month

Basic Info.

Model NO. TP-508 Trademark TOP Origin China HS Code 9027809900 Production Capacity 280 Sets/Month

Product Description

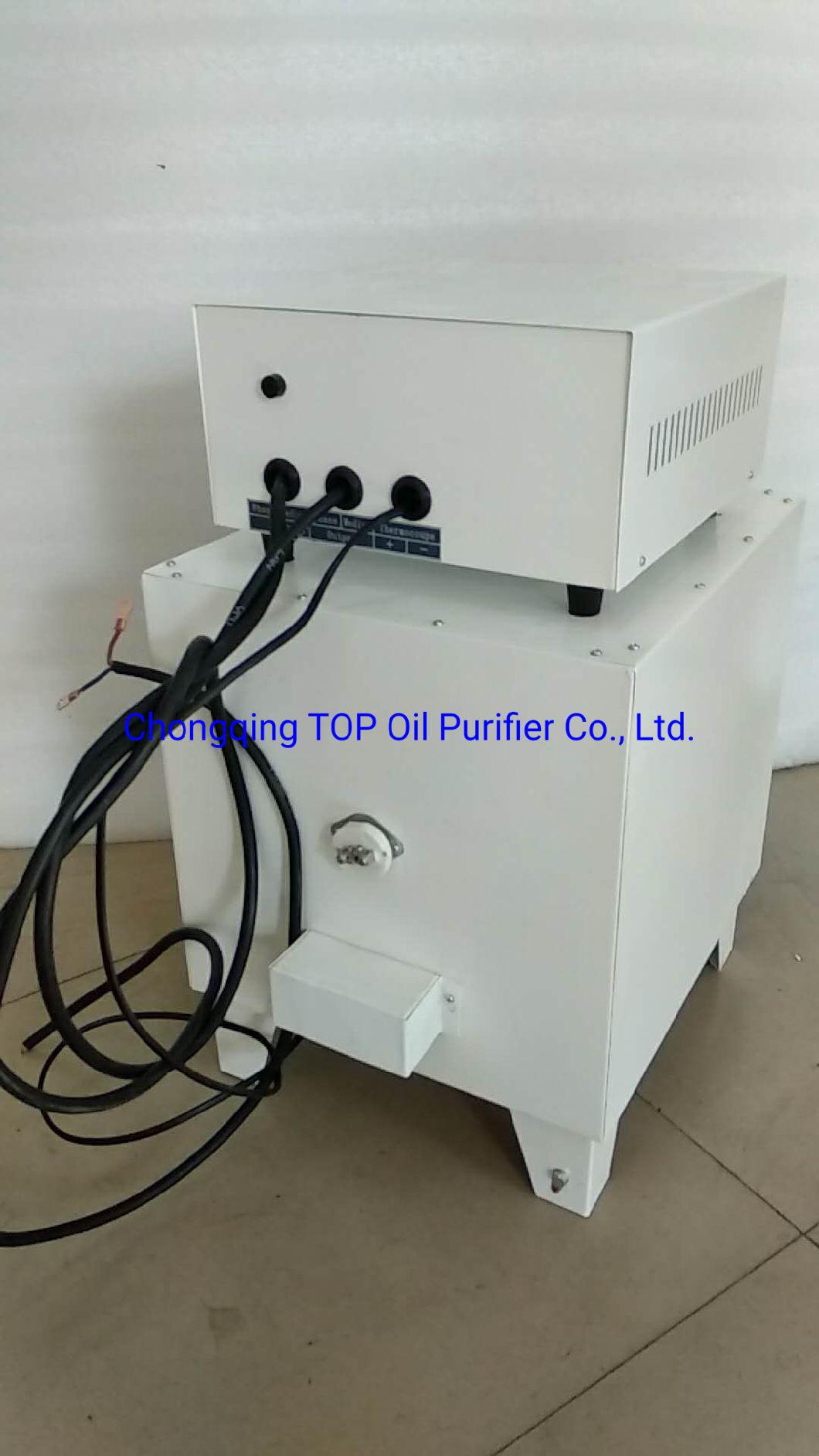

Petroleum Products Ash Content Testing Machine

(TP-508)


Product Application
This instrument is designed and manufactured under the requirements of standard GB/T 508 in
"the determination of ash in petroleum products" enacted by the People's Republic of China,
applicable to the testing of ash in petroleum products by the method specified in GB/T508. But this
instrument not applicable to the petroleum products contains NA health ash additives(including  certain phosphorus-containing compound additive),  leaded lubricant and  used engine  crankcase  oil.



Product Features
1. The instrument consists of two parts, digital box-type resistance  furnace and  electric hot  plates, equipment, small size, small footprint.
2. Box-type resistance furnace with the  overall structure, digital temperature  controller, special  refractories and heater parts, heating
time is short, the temperature overshoot is small, stable and accurate temperature control, long
work life, beautiful machine design.
3. The top flat heating plate made of cast iron, steels in tank shell are welded by stamping, small
and durable.

Technical Parameter

Power supply	AC220V ± 10%; 50Hz
Rated power	2500W
The heating range	room temperature ~1000 ºC
The temperature control	(775 ± 25) ºC
The temperature control element	thermocouples
Air furnace heating time	≤60 min
Temperature uniformity	≤15 ºC
The chamber size (mm)	200 mm*120 mm *80 mm (length*width*height)
