• Model NO.：WT602B
• Resonse Time(T90)：Less Than 10s
• Power：DC: 24 V , 0.3A; AC: 220 V ± 10%
• Gross Weight Per Unit Product：10.000kg
• Transport Package：Carton
• Specification：445.00cm * 360.00cm * 150.00cm
• Trademark：KELISAIKE or OEM
• Origin：Nanjing, China
• HS Code：9027900000
• Production Capacity：300PCS,Month

Basic Info.

Model NO. WT602B Resonse Time(T90) Less Than 10s Power DC: 24 V / 0.3A; AC: 220 V ± 10% Gross Weight Per Unit Product 10.000kg Transport Package Carton Specification 445.00cm * 360.00cm * 150.00cm Trademark KELISAIKE or OEM Origin Nanjing, China HS Code 9027900000 Production Capacity 300PCS/Month

Product Description

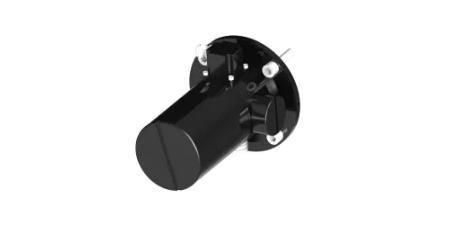

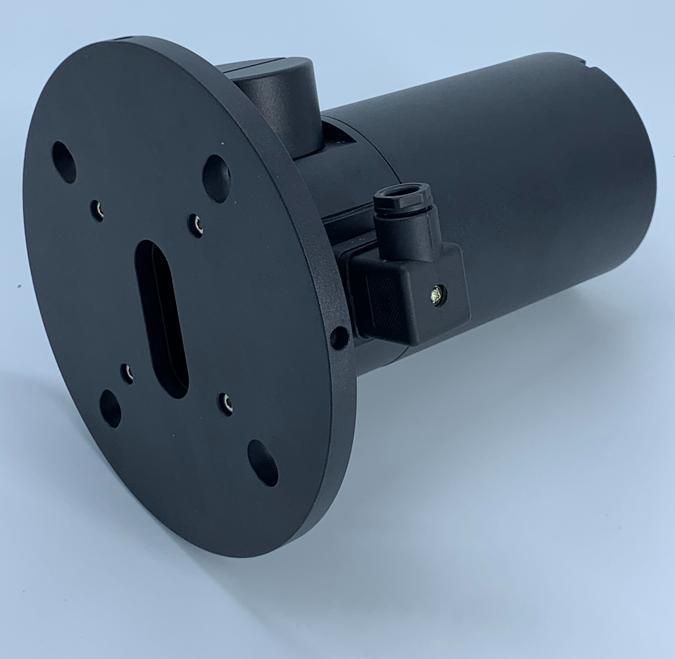

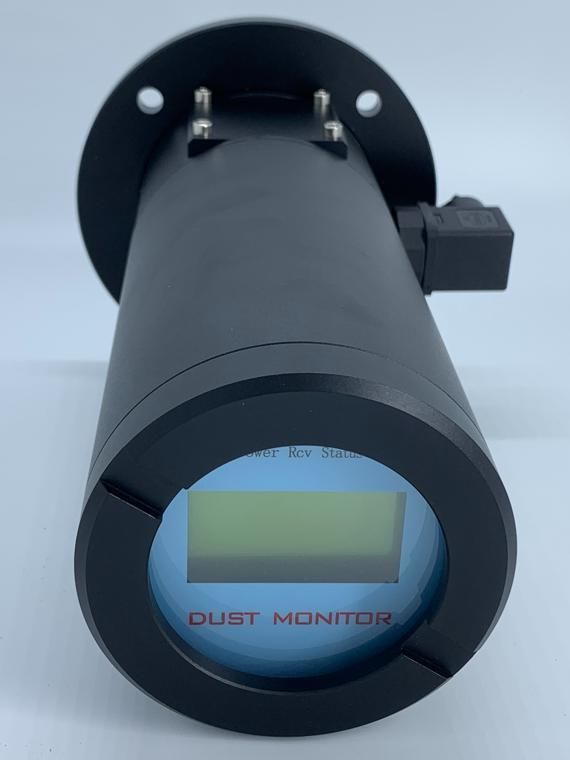

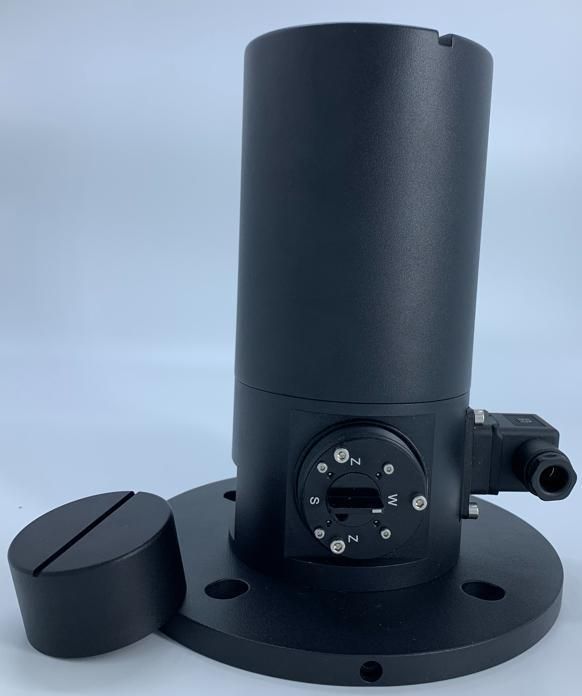

WT602B Series Continuous Dust Analyzer

1. Working Principle

WT602B series products use the principle of laser backscatter to complete the measurement of flue dust concentration. The embedded high stable laser signal source passes through the flue and irradiates the smoke particles. The irradiated smoke particles will reflect the laser signal, and the reflected signal intensity changes positively with the smoke concentration. The concentration of flue dust can be calculated by a specific algorithm.

1. Main Characteristics:

1. Digital signal processing technology, high detection sensitivity and high linearity, eliminate the influence of stray light, and make the measurement more accurate;
2. Optical power adaptive stabilization technology to ensure the stability of the detection light source;
3. Very low zero-point drift design technology, automatic zero point calibration every twenty-four hours;
4. Adaptive full-scale calibration technology, automatic full-scale calibration every twenty-four hours to correct window lens contamination;
5. Anti-harsh environment design technology, extremely low temperature drift;
6. Online calibration, manual zero and span calibration can be achieved without disassembling the instrument;
7. The filter is not affected by sunlight;
8. Integrated structure design, simple and quick installation and maintenance;
9. Provide multiple output interfaces and expandable interface options;
10. Provide the control software User monitor, collect data and control the instrument through the RS485 interface.

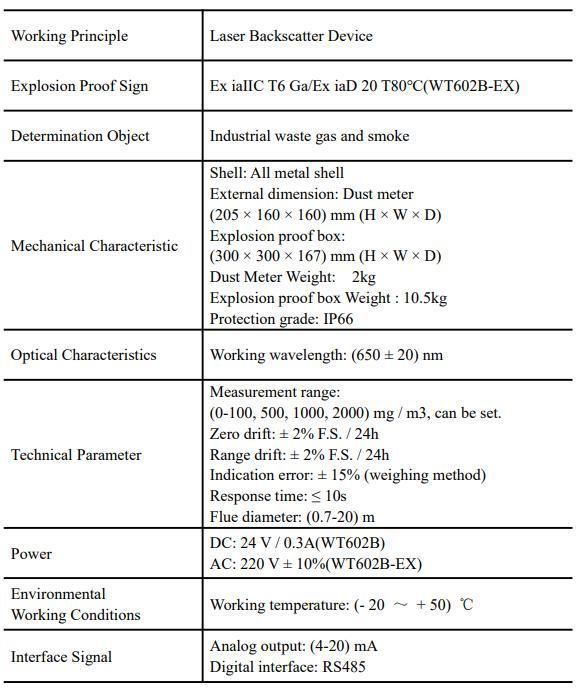

1. Technical Parameters:

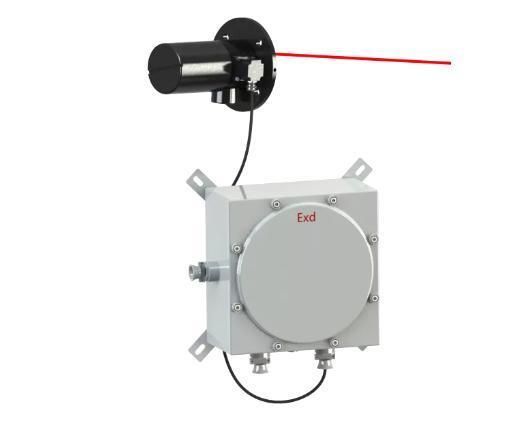

1. Option of the Explosionproof type

The whole machine adopts intrinsically safe circuit design, which can adjust the status of the equipment when electrified, which is beneficial to maintenance. The host is equipped with an online calibration device.


Explosion-proof mark: Ex ia II C T6 Ga/Ex iaD 20 T80ºC
Host size: (205×160×160)mm (H×W×D)
Explosion-proof box size: (300×300×167)mm (H×W×D)
Explosion-proof box weight: 10.5kg
