Low Pressure Pneumatic Deadweight Tester
Chongqing TOP Oil Purifier Co., Ltd.- After-sales Service：Provided
- Warranty：1 Year
- Function：Test Precision Pressure Gauges
- Accuracy Level：0.05, 0.02; 0.01
- Working Medium：Clean Compressed Air or Bottled Nitrogen
- Pressure Output：M20*1.5 Quick Connector
Base Info
- Model NO.：TPTG060
- Weight：50 Kg
- Transport Package：Standard Export Wooden Case
- Specification：600*400*450 mm
- Trademark：Chongqing TOP
- Origin：Chongqing, China
- HS Code：9026809000
- Production Capacity：100,Month
Description
FOCUS ON OIL FILTRATION SYSTEM OVER 20 YEARS
Recycling your used oil reduces pollution and protecting our environment.
Conserving a valuable resource and getting paid for it.
Chongqing TOP Oil Purifier Co.,Ltd.
Product Description
Product Show:

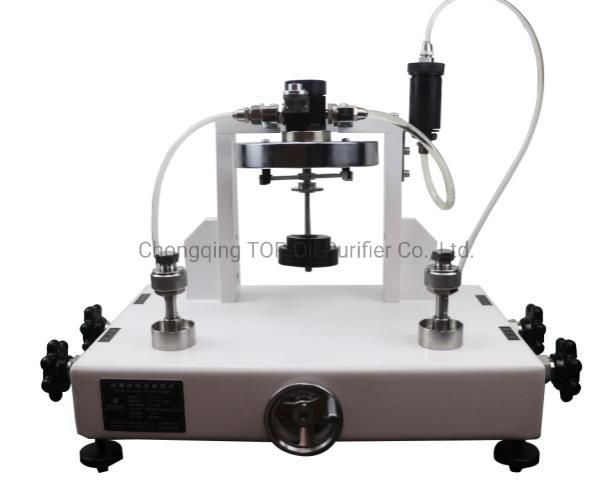

Low Pressure Pneumatic Deadweight Tester
Application:
TPT025, TPT060 Pneumatic Deadweight Tester are mainly used for testing 0.16, 0.25 and 0.4 precision pressure gauges in the range of -0.1~0.25MPa to -0.1~0.6MPa. The accuracy of the pressure gauge is 0.05 or 0.02, and the working medium is gas.
Features:
Measuring range: (-0.1~-0.01MPa, 0.01~0.25MPa),
(-0.1~-0.01MPa, 0.01~0.6MPa);
Accuracy level: 0.05, 0.02; 0.01
Working medium: clean compressed air or bottled nitrogen;
Ambient temperature: 20±5ºC, no corrosive gas is allowed around;
Storage: The ambient temperature is +5~+35ºC, and the relative humidity is no more than 80%;
Pressure output: M20*1.5 quick connector;
Dimension:600*400*450 mm
Class 0.05 is carbon steel weights, grade 0.02 is non-magnetic stainless steel weights;
Verification standard: "JJG99-2006 Weight Verification Regulations"
"JJG236-2009 Verification Regulations for Piston Pressure Vacuum Gauge"
Transformer oil kinematic viscosity at 20ºC, 9~12 centistoke acid value not more than 0.05 mg KOH/g (recommended mixed oil: (transformer oil: aviation kerosene=7:1)
Certificate:
Payment Terms:
After-sale Service:
* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
Company Profile

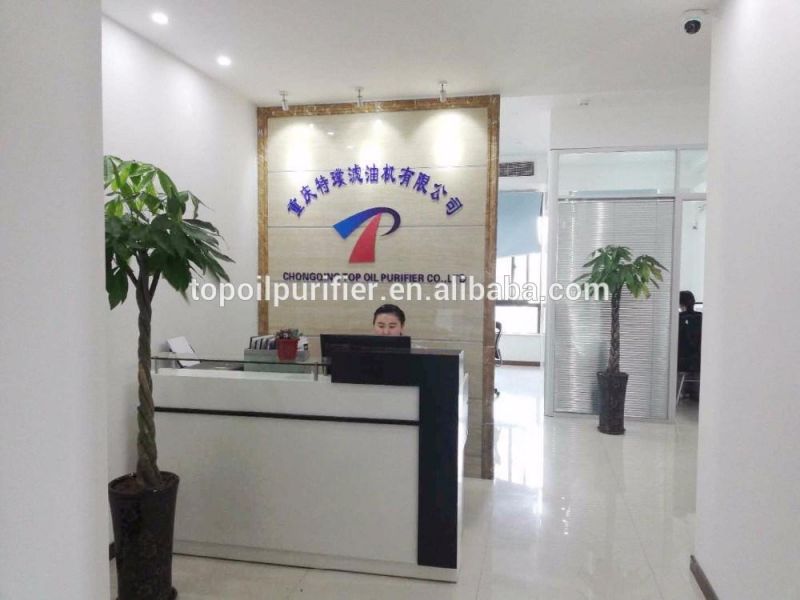

Our Company:
Chongqing TOP Oil Purifier Co., Ltd
Located at Chongqing city--a southwest electromechanical manufacturing center as well as national municipality, Chongqing TOP is a professional leading manufacturer and supplier of oil purifiers and various related testers. Our company consists of departments respectively for technological development, machinery manufacture, instrument manufacture and quality control etc.Exhibition:

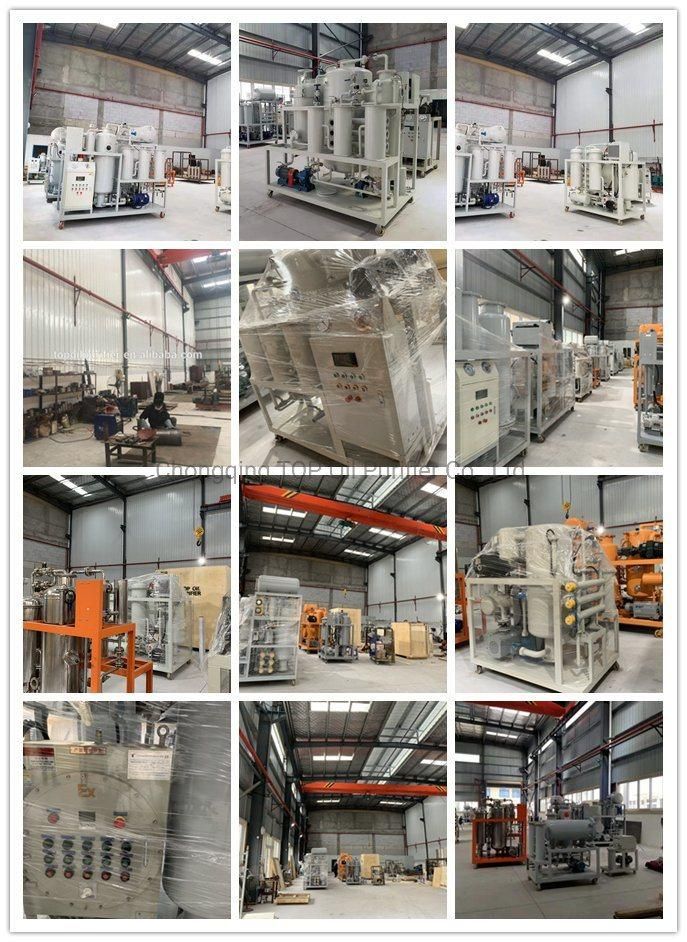

Our Factory:
WELCOME YOUR INQUIRY
