• Model NO.：BC72B
• Carbon Dioxide Measurement Scope：0-5000ppm
• Display Method：4.3" LCD Screen Display, 320X240 P
• Measurement Items：CO2, Temperature, Humidity
• Atmospheric Pressure：86kpa-106kpa
• CO2 Technology：Infrared (Ndir)
• Temperature and Humidity Technology：Temperature and Humidity Sensor
• Sampling Time：1.5 Seconds
• Detection Temperature：-10ºC to 50ºC , 14ºF to 122ºF
• Relative Humidity：20%-85%
• Battery：1 * Lithium Battery, 2000mAh (Included)
• Power Source：5V DC Power Charging Via Micro USB Plug
• Transport Package：Color Box
• Specification：145 * 97.2 * 78mm
• Origin：China
• Production Capacity：5000set,Month

Basic Info.

Model NO. BC72B Carbon Dioxide Measurement Scope 0-5000ppm Display Method 4.3" LCD Screen Display, 320X240 P Measurement Items CO2, Temperature, Humidity Atmospheric Pressure 86kpa-106kpa CO2 Technology Infrared (Ndir) Temperature and Humidity Technology Temperature and Humidity Sensor Sampling Time 1.5 Seconds Detection Temperature -10ºC to 50ºC / 14ºF to 122ºF Relative Humidity 20%-85% Battery 1 * Lithium Battery, 2000mAh (Included) Power Source 5V DC Power Charging Via Micro USB Plug Transport Package Color Box Specification 145 * 97.2 * 78mm Origin China Production Capacity 5000set/Month

Product Description

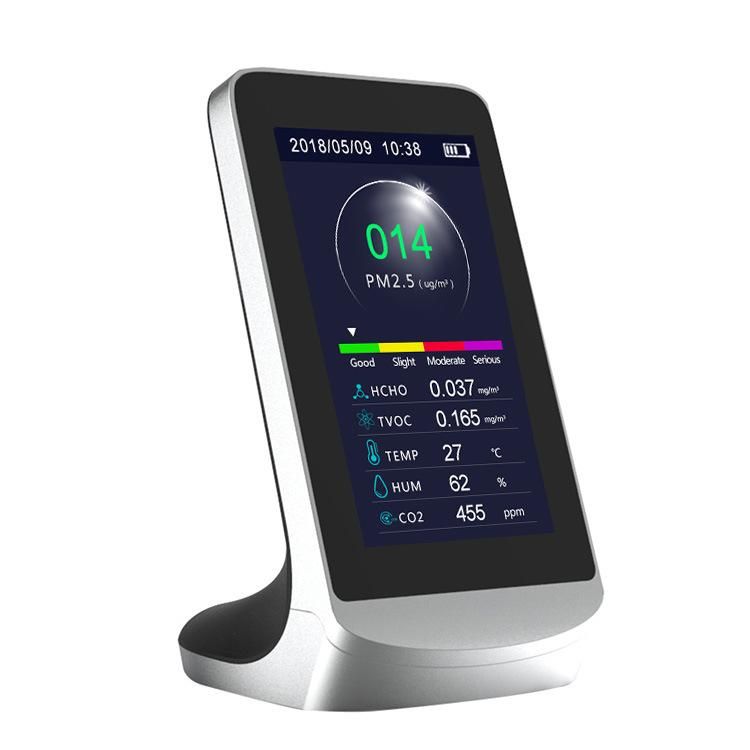

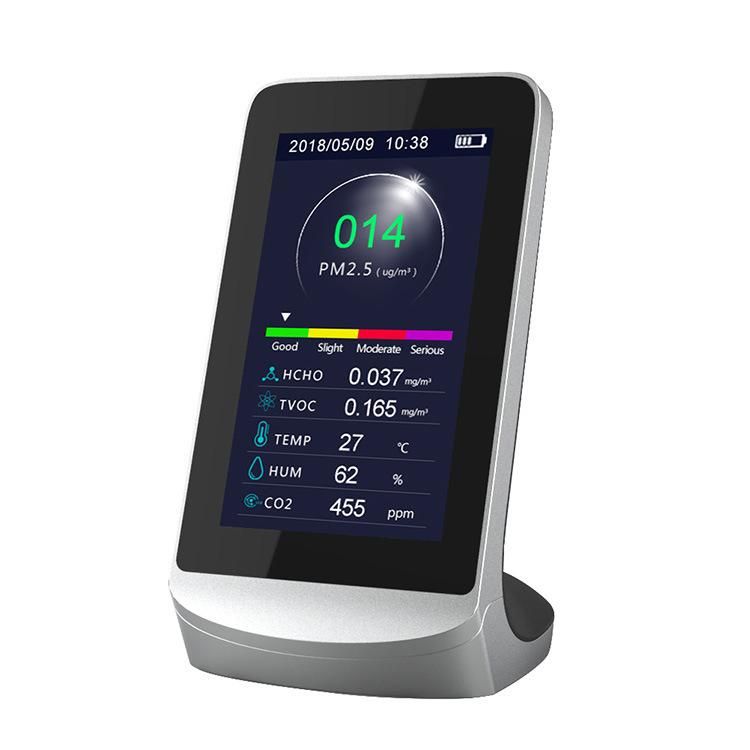

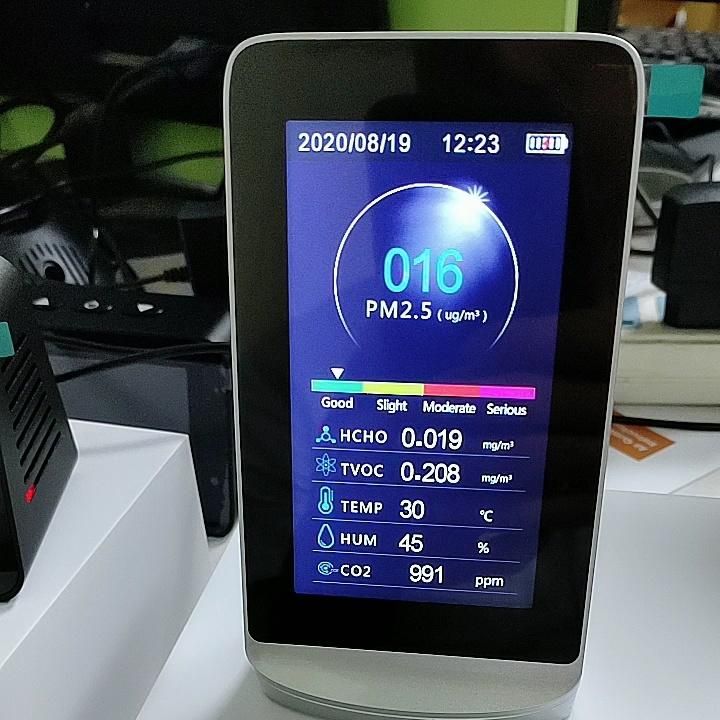

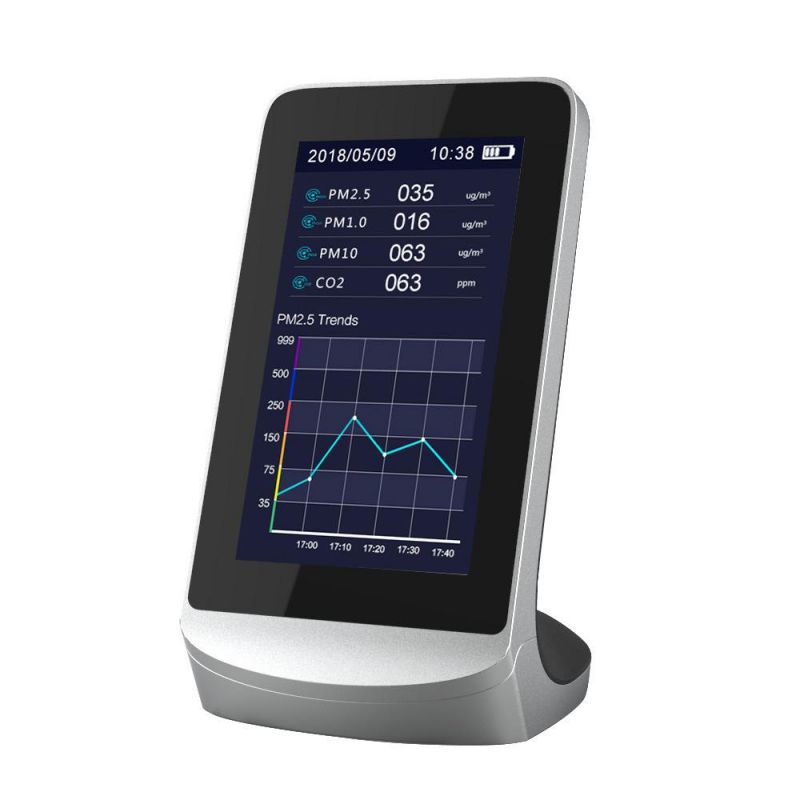

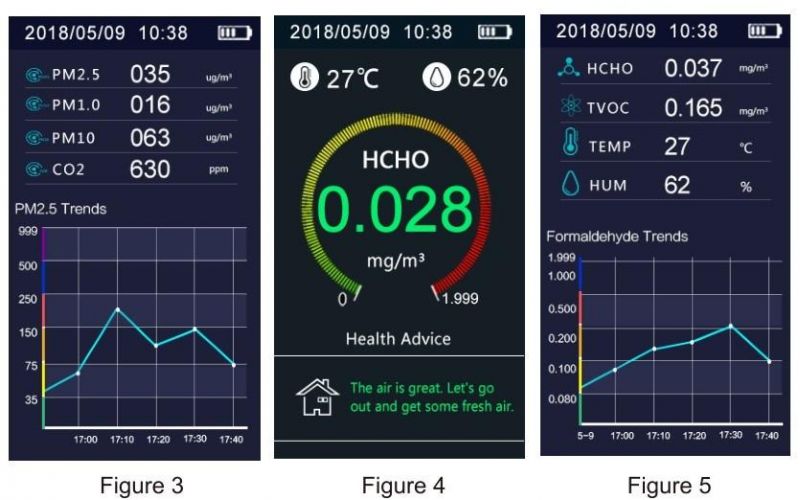

CO2 Meter Pm25 Air Quality Monitor Detector Gas Monitoring Meter Analyzers LCD Display CO2 Meter Product performance description this product is a multifunctional air quality detector that detects Formaldehyde (HCHO), Total Volatile Organic Compounds (TVOC), Particulate Matter <2.5 micron-sized particles (PM2.5/1.0/10), Temperature, and Humidity with clock and record function. As a scientific air quality detection device, it combines multiple air sensors with a built-in fan to allow real-time monitoring of formaldehyde (HCHO), total volatile organic compounds (TVOC), PM2.5/1.0/10, temperature, and humidity on its digital LCD display. Color: BlackProduct Size:145*78*97.2 MMPM2.5 Sensor technology: Laser ScatteringWeight:225GMaterial:Metal + ABSTest Components: CO2 PM2.5 PM1.0 PM10 TVOC HCHO TEMP HUM AQIPower supply: Rechargeable Li-battery 3000mAhPackaging & DeliveryUsage:Indoor /in car /new house /bedroomSupply AbilitySupply Ability:2000 Piece/Pieces per MonthEst. Time(days) 5 15 20 To be negotiated Packaging Detailsgift boxPortSHENZHENPicture Example:Lead Time :Quantity(Pieces) 1 - 2 3 - 100 101 - 500 >500

1.Q:What test index are included for air quality monitor?
A:CO2: is for carbon dioxide,Infrared sensor(NDIR)Temperature and Humidity Suitable for detecting CO2 concentration in industrial,agricultural and residential environments. Control the ventilation system according to the monitored target value (CO2 concentration).

2.Q:Can it connect to wifi?
A: No, Details connection way, you can contact our sales.

3.Q:What is the standard range for CO2?

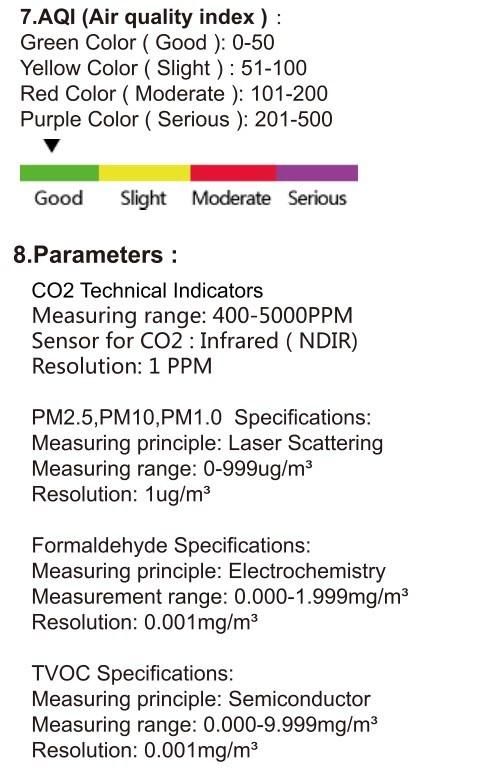

A:with traffic light to remind CO2 air quality as below;
Good 400~800PPM;OK 800~1200PPM;Bad 1200~5000PPM

4.Q:How to charge it?
A:By Type-C charging line. Regular just offer Type-C charging line. We also offer adapters(Like US adapter, Europe adapter...) if add extra cost.

5.Q:How about OEM or custom?
A:Sure, As professional and stable manufacture for CO2 meter factory, we can support many custom contents as below;
1.Printing logo, support printing logo on Lens or device.
2.Interface contents, support custom interface like language, colors....
3.Package, support custom package(We can send neutral artwork to the client to design package)
