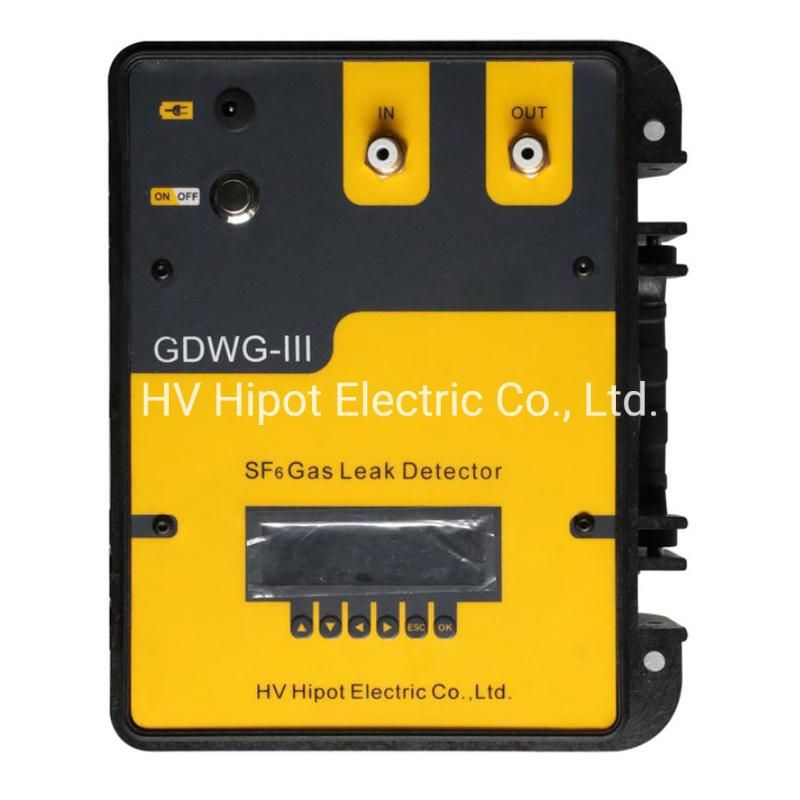

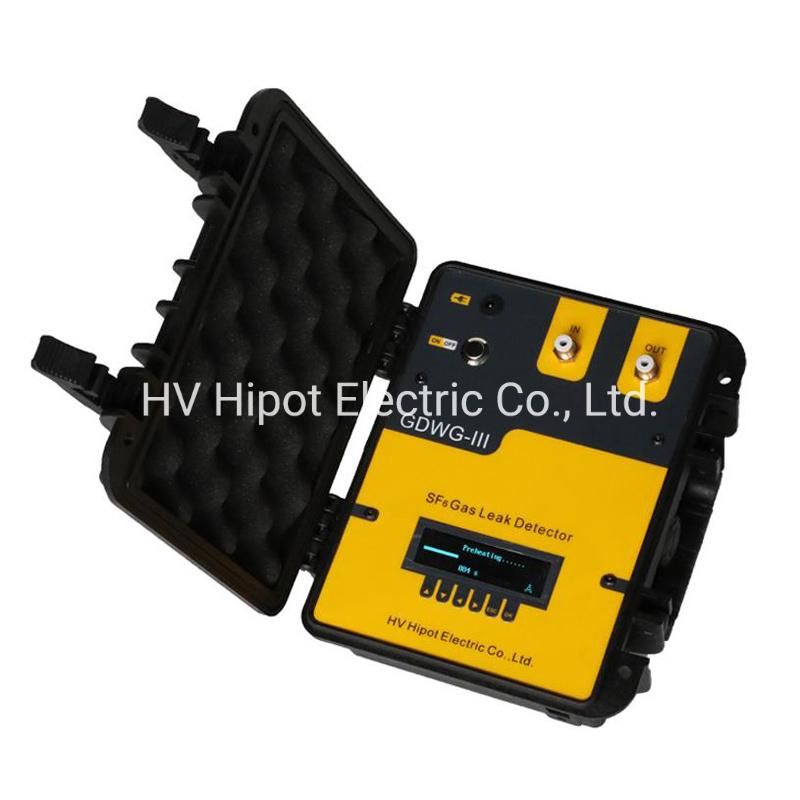

GDWG-III SF6 Gas Leakage Detector
HV Hipot Electric Co., Ltd.- Brand：HV HIPOT
- Customized：Non-Customized
- Portable：Portable
- Certification：CQC
- Gas：SF6
- Type：Non-Dispersive Infrared Analysis
Base Info
- Model NO.：GDWG-III
- Signal stabilization：≤±20ppm, more than 1000 hours
- Sampling：Pump suction sampling, flow rate 1L,min
- Zero drift：≤±1%(F.S,year)
- Linear error：≤±1%
- Measuring principle：Non-dispersive infrared sensor (NDIR)
- Measuring range：0-1500ppm SF6
- Resolution：0.1ppmv
- Transport Package：Wooden Case
- Specification：ISO, SGS
- Trademark：HV Hipot
- Origin：Wuhan China
- HS Code：9027100090
- Production Capacity：1000PCS,Year
Description
Measuring principle
Non-dispersive infrared sensor (NDIR)
Measuring range
0-1500ppm SF6
Resolution
0.1ppmv
Accuracy
±2%FS (0-1000ppm)
Repeat-ability error
≤±1%
Sensitivity
1ppmv
Response time
≤10s
Recovery time
≤15s
Stability
≤±20ppm, more than 1000 hours
Sampling mode
Pump suction type, flow up to 1L/min.
Zero drift
≤±1%(F.S/year)
Linear error
≤±1%
Peak current
<700mA
Average power
<2W
Operation air pressure
800-1150hPa
Environment humidity
0-95%RH
Storage temperature
-20 ~ +60ºC
Operation temperature
-20 ~ +50ºC
Operation humidity
0-95%(non-condensing)
Working voltage
220VAC±10%,50Hz Or Built-in Li-battery, continuous working 6 hours after full charge.
Dimension
220*250*120mm
Weight
About 2kg
Accessories
| Main unit | 1 set |
| Charger | 1 piece |
| Hand-held probe | 1 piece |
| Anti-slip belt | 1 piece |
| Hose 600 mm | 1 piece |
| User's guide | 1 copy |
| Warranty card | 1 copy |
