• Model NO.：K800IR
• Voltage：DC 24V
• Operating Temperature：-20 Degree ~ 50 Degree
• Signal Output：4 to 20mA
• Explosion-Proof Grade：Ex D Iic T6
• Certificate：Ce
• Warranty：1 Year
• Detection Range：0-100ppm
• Low Alarm：10ppm
• High Alarm：20ppm
• Transport Package：Carton
• Specification：1.8kg
• Trademark：KELISAIKE
• Origin：Nanjing, China
• HS Code：8531100000
• Production Capacity：300

Basic Info.

Model NO. K800IR Voltage DC 24V Operating Temperature -20 Degree ~ 50 Degree Signal Output 4 to 20mA Explosion-Proof Grade Ex D Iic T6 Certificate Ce Warranty 1 Year Detection Range 0-100ppm Low Alarm 10ppm High Alarm 20ppm Transport Package Carton Specification 1.8kg Trademark KELISAIKE Origin Nanjing, China HS Code 8531100000 Production Capacity 300

Product Description

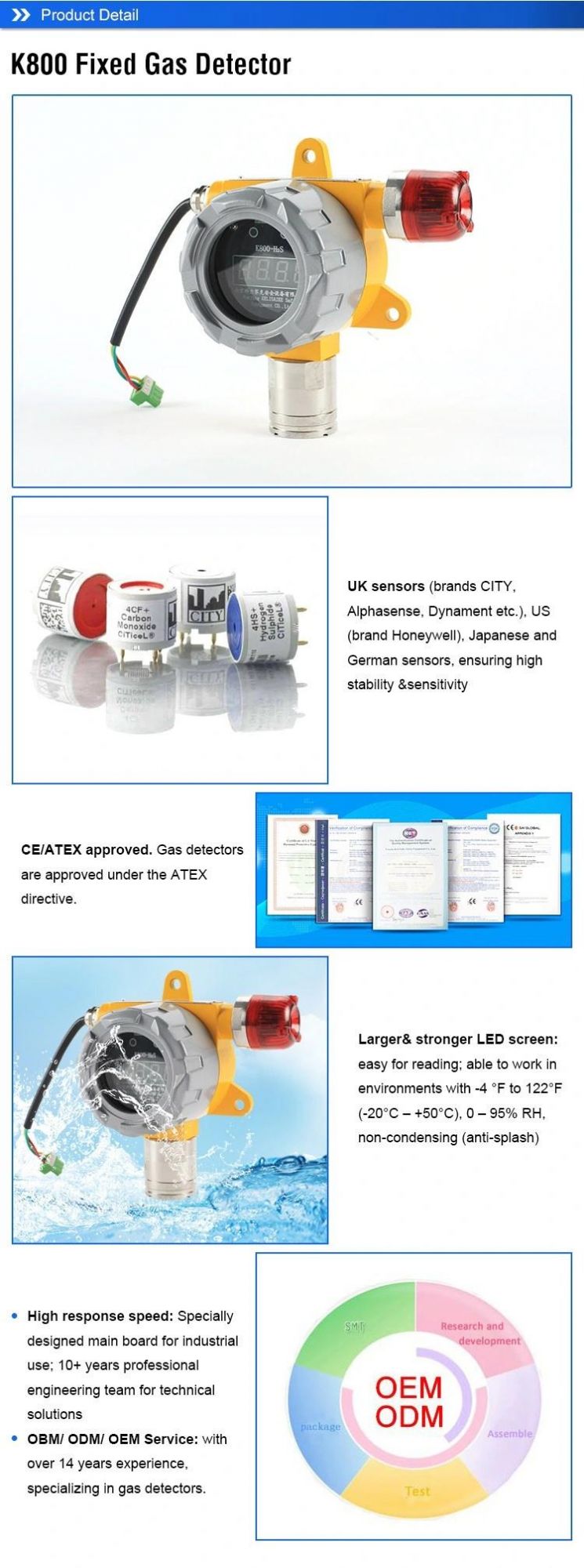

K800IR(PID) Fixed Infrared Gas Detection Transmitter without oxygen dependent

Power supply	DC 24V
Output signal	4-20mA standard industrial signal output
Operating temperature	-20°C~50°C
Display	Backlight LED
Relative humidity	15%~90% RH (non-condensing)
Atmospheric pressure	86~106Kpa
Explosion-proof grade	Ex d IIC T6
Warranty	1 year

Common Used Gas Detection List

No.	Detection gas	Range	Accuracy	90% response time	Min readout	Low/high alarm
1	PH3	0-5ppm	±5%(F.S)	≤25s	0.01ppm	0.3ppm/5ppm
2	O2	0-30%vol	±5%(F.S)	≤15s	0.1%vol	18%vol/23%vol
3	EX(LEL/CH4)	0-100%lel	±5%(F.S)	≤15s	1%lel	25%lel/50%lel
4	CO	0-2000 ppm	±5%(F.S)	≤25s	1 ppm	50ppm/100ppm
5	H2S	0-100 ppm	±5%(F.S)	≤30s	1 ppm	10ppm/20ppm
6	NO2	0-20 ppm	±5%(F.S	≤25s	0.1 ppm	3ppm/10ppm
7	NO	0-250 ppm	±5%(F.S)	≤60s	1 ppm	25ppm/50 ppm
8	SO2	0-100 ppm	±5%(F.S)	≤30s	0.1 ppm	2 ppm /10 ppm
9	CL2	0-20 ppm	±5%(F.S)	≤30s	0.1 ppm	1 ppm /10 ppm
10	NH3	0-200ppm	±5%(F.S)	≤50s	1 ppm	25 ppm /50 ppm
11	H2	0-1000 ppm	±5%(F.S)	≤60s	1 ppm	50 ppm /100 ppm
12	HCN	0-50ppm	±5%(F.S)	≤200s	0.1ppm	10ppm/20ppm
13	HCL	0-20ppm	±5%(F.S)	≤60s	0.1ppm	5ppm/10ppm
14	CH4(IR)	0-5%vol	±5%(F.S)	≤60s	0.01%vol	customized
15	CO2(IR)	0-5%vol (0-5000ppm)	±5%(F.S)	≤60s	0.1%vol (1ppm)	customized
16	PID(VOCs)	1-1999ppm	±5%(F.S)	≤20	0.1ppm	customized
17	C3H8	0-5%vol	±5%(F.S)	≤60s	0.01%vol	customized
18	O3	0-10ppm	±5%(F.S)	≤30s	0.02ppm	1ppm/2ppm
