• Model NO.：GT-2000
• Type：Electrochemical Gas Analyzer
• N.W：3.3kg
• G.W：6.88kg
• Detection Range：0-5000ppm
• Screen Size：3.5inch
• Explosion Proof Sign：Exdll CT4 (Ia)
• IP Rating：IP66
• Power：6000mA High Capacity Polymer Rechargeable Battery
• Storage：Large Data Logger(100, 000 Groups)
• Sampling：Pumping, Build-in Pump
• Alarm Type：Sound and Light Alarm
• Transport Package：Size: 57*22*43.5cm
• Specification：Product size: 25.5*13*25.5cm
• Trademark：Korno or customized
• Origin：China
• HS Code：9027100090
• Production Capacity：10000,Month

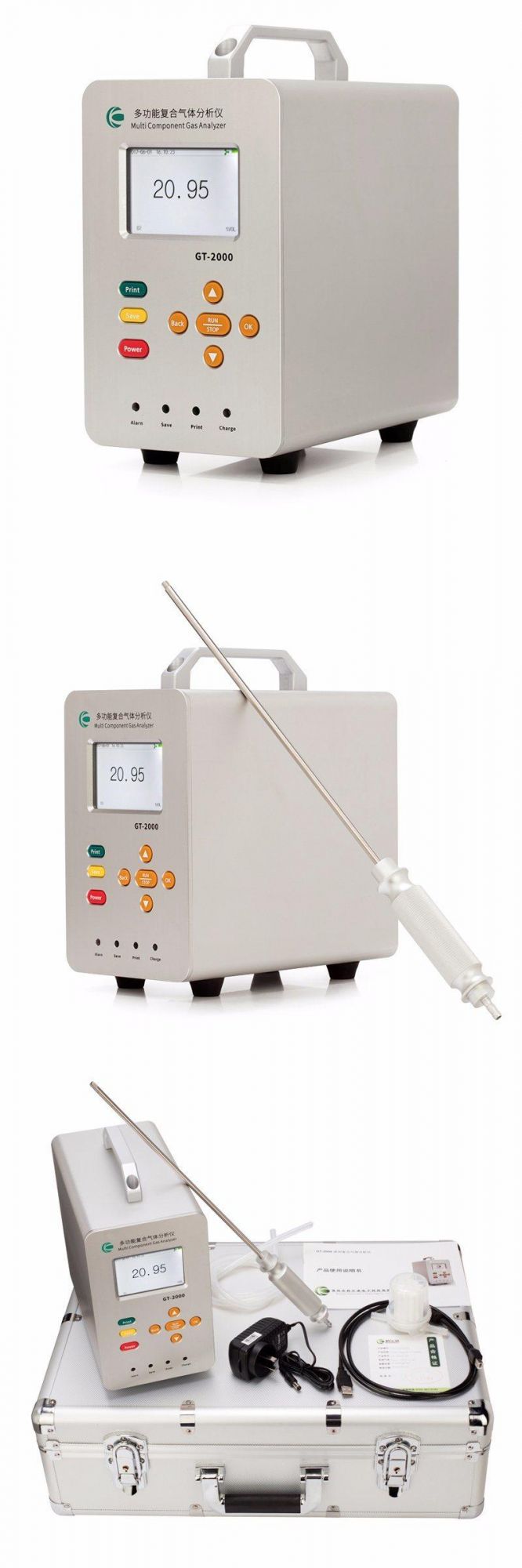

Portable,Multi Gas(up to 6 gases)Detection Range:Please refer to sensor listResolution:Please refer to sensor listScalable gas sensor :User can customize up to 6 gas sensors in any combination,please refer to the sensor parametersTemperature and humidity:Temperature detection range:-40 ~ 120ºC
Humidity detection range:0-100%RHDetection pattern:
 Pumping, the flow rate is 500ml/min.Detection Accuracy:≤±3%F.SLinearity Error:≤±1%F.SReaction Time:≤20 S(T90)Zero drift:≤±1%(F.S/Year)Detection Method:Real-time detection mode and timing detection mode ,Cycle detection mode can be switch freelyStorage Method:Automatically saving and manually saving is available,
Each channel has 30,8000 group data can be storaged,user can view history data on the display.Explosion Proof Sign:Exdll CT4 (IA)Shell Case material:ABS+PCIP rating:IP66Operating Temperature:-30 ~ 60ºC(-22~144ºF)Power:6000mA high capacity polymer rechargeable batteryOperating Humidity:≤90%RH,Non-condensingDimensions / Weight:255*13*255 mm(L×W×H)
3.3 Kg(net weight)Operating Pressure:-20Kpa ~ 100Kpa


 3) Details:



 Sensor List(Partial ones listed only): GasDetection RangeResolution:Combustible Gas(EX)0-100%LEL0.1%LELCarbon Monoxide(CO)0-100,500,1000,2000,5000,10000,40000ppm0.1ppm(0-1000ppm),1ppm(0-40000ppm)Hydrogen Sulfur(H2S)0-50,100,500,1000ppm0.01ppm(0-100ppm),0.1ppm(0-1000ppm)Ammonia(NH3)0-50,100,500,1000ppm0.01ppm(0-100ppm),0.1ppm(0-1000ppm)Oxygen(O2)0-5000,10000,30000ppm,5%,30%,100%VOL1ppm(0-30000ppm),0.01%VOL(0-100%VOL)Hydrogen(H2)0-500,1000,5000,20000,40000ppm0.1ppm(0-1000ppm),1ppm(0-40000ppm)Carbon Dioxide(CO2)0-2000,5000,10000,50000ppm,20%,50%,100%VOL1ppm(0-50000ppm),0.01%VOL(0-100%VOL)Phosphine(PH3)0-100,500,1000,2000ppm0.01ppm(0-100ppm),0.1ppm(0-1000ppm),1ppm(0-2000ppm)NOTE:Price depends on the quantity you requested and the detection range you need,please contact us for confirmed!


4)Customize Service:
    1) Show your company name and logo at the boot interface
    2) Print your company name,information,logo at the label and manual
    3) Design stainless steel nameplate with your company name for free(≥20PCS)
    4) We can also silk-printing your Logo,design another color of the case for you
          if you have a large order,please contact us for more details^ ^

5) Our service:
  1.All products and accessories have been 100% tested before shipping.
  2.We provide 12-Month warranty for non-deliberate damage.
  3.OEM & ODM are welcomed.

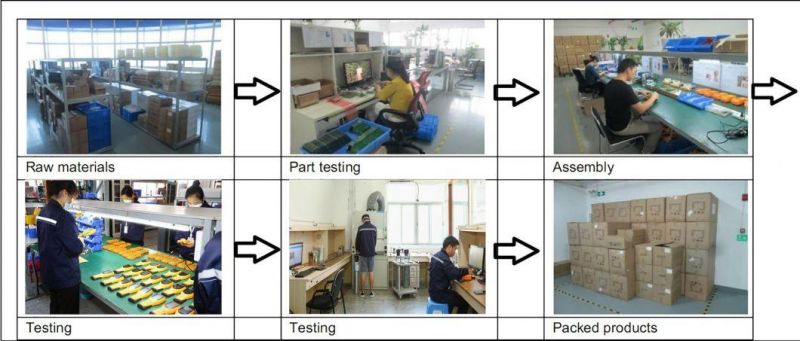

6) Our production line:

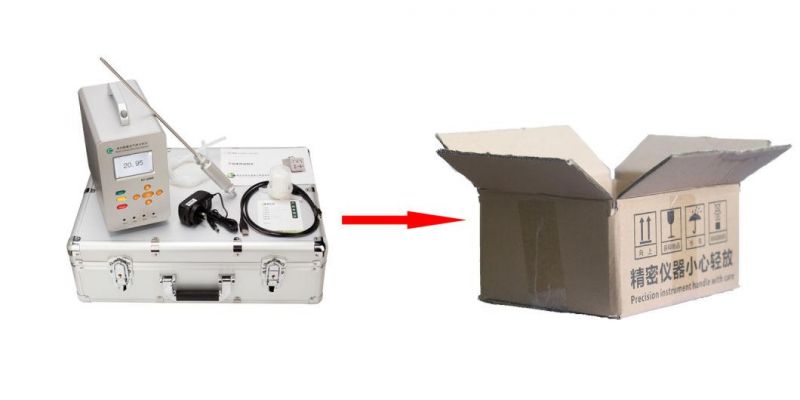

7) Package:



 F&Q:
Q1:Can I have a sample order?
A1: The sample order to test are welcomed at the first time.

Q2:How about your production capacity and quality control?
A2:We have written instructions for incoming material&finished products inspections and testing.
      All the finished products will be 100% inspection and all the non-conforming units will be clearly
      marked and segregated to repaired and re-inspection.

Q3:How can I get a good price?
A3:We are 100% sure that we can provide you high value with competitive price and please attach your detailed request, application place, order quantity, delivery mode,payment terms to the inquiry mail ^
