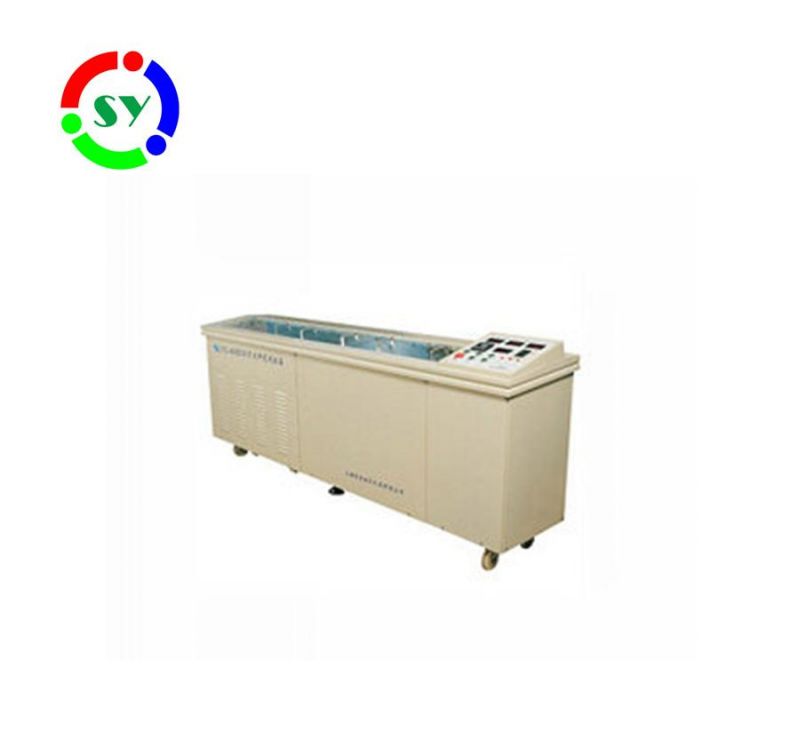

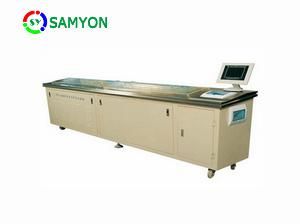

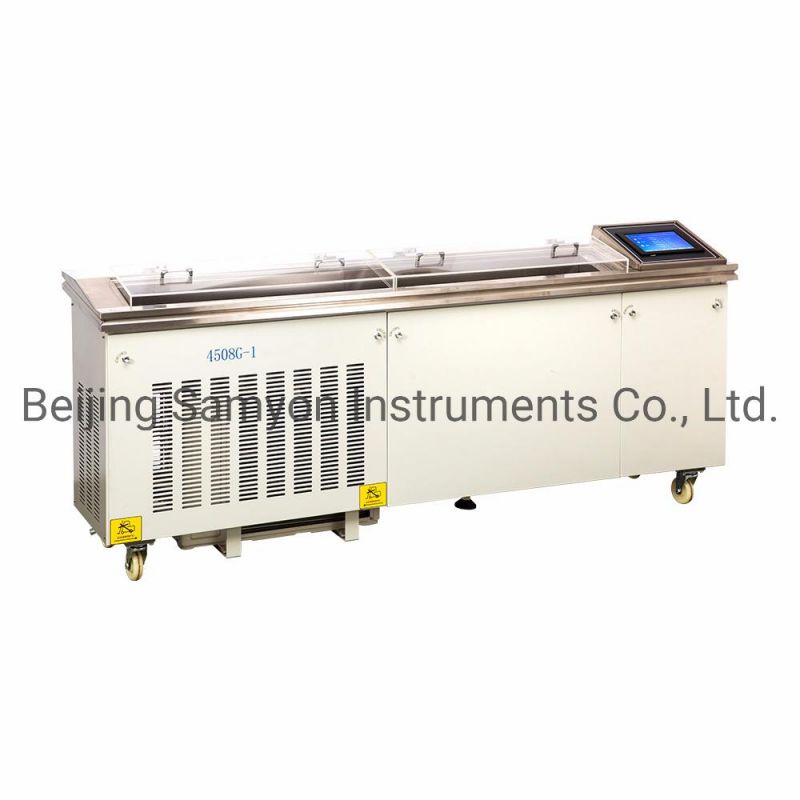

Sy-4508g Bitumen Ductility Machine ASTM D113

Beijing Samyon Instruments Co., Ltd.
  • Power Supply：AC(220+,-10%)V, 50Hz
  • Measurement Distance：1.5m(+,-10mm)
  • Heating Power：3200W
  • Temperature Control：Range:(5~35)Oc, Accuracy: +,-0.1oc
  • Tensile Speed：(10~50)mm,Min
  • Transport Package：Carton Case

Base Info

  • Model NO.：SY-4508G
  • Specification：SGS
  • Trademark：SAMYON
  • Origin：Cn
  • HS Code：903180
  • Production Capacity：100sets Per Month

Description


1. Power supply: AC(220±10%)V, 50Hz
2. Measurement distance: 1.5m(±10mm)
3. Heating power: 3200W
4. Temperature control: Range:(5~35)ºC, accuracy: ±0.1ºC
5. Tensile speed: (10~50)mm/min,stepless adjustment. accuracy:±1mm
6. Tensile test: Range:(0~300)N, accuracy:±1N, resolution: 0.1N
7. Data output: (1)Communication port RS232
(2)Printed by microprinter
8. Refrigeration: Compressor 1.0P, input power is 800W
9. Ambient temperature: (-10~+35)ºC.
10.Relative humidity: ≤85%
11.Maximum power consumption: 4100W
12.Dimension: 2365mm×530mm×1000mmSy-4508g Bitumen Ductility Machine ASTM D113Sy-4508g Bitumen Ductility Machine ASTM D113 Sy-4508g Bitumen Ductility Machine ASTM D113Sy-4508g Bitumen Ductility Machine ASTM D113
