• Model NO.：AS-DGD01EX
• Power Supply：DC24V±25%
• Power Consumption：≤3W
• Working Method：Continuous monitoring
• Condition Display：Fault, L-alarm, H-alarm 3 indicators
• Response Time：≤30s (LEL) , ≤60s (toxic)
• Signal Output：4-20mA , RS485 , relay
• Pressure Limit：86-106 kPa
• Connection Thread：G1,2"
• Cable Dimension：≥1.5mm2×3
• Explosion Proof：Ex d II CT6 GB
• Protection Rate：IP65
• Dimensions：210×200×105 mm
• Weight：Abt 1 kg
• Application：Chemical, petrochemical, coal, steel, gas industry
• Transport Package：Standard Export Cartons
• Trademark：Ansorl
• Origin：China
• HS Code：9027100090
• Production Capacity：3000 Pieces Per Month

Basic Info.

Model NO. AS-DGD01EX Power Supply DC24V±25% Power Consumption ≤3W Working Method Continuous monitoring Condition Display Fault, L-alarm, H-alarm 3 indicators Response Time ≤30s (LEL) / ≤60s (toxic) Signal Output 4-20mA / RS485 / relay Pressure Limit 86-106 kPa Connection Thread G1/2" Cable Dimension ≥1.5mm2×3 Explosion Proof Ex d II CT6 GB Protection Rate IP65 Dimensions 210×200×105 mm Weight Abt 1 kg Application Chemical, petrochemical, coal, steel, gas industry Transport Package Standard Export Cartons Trademark Ansorl Origin China HS Code 9027100090 Production Capacity 3000 Pieces Per Month

Product Description

Flame Proof Combustible/Toxic Gas Sensor Detector



 1. Overview AS-DGD01EX fixed gas detector, adopting high-quality gas sensor and SMD arts and crafts, has advantages of good reproducibility, disturbing-proof against temperature and humidity, long life-span and easy operation. The signal output is standard 4-20mA. It is widely used in refineries, chemical plant, LPG station, gas boiler, and spray/paint plant etc where gas leakage easily.

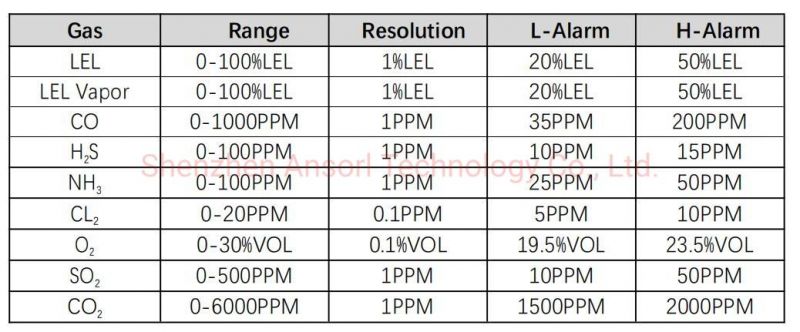

 2. Gas Type

 3. Technical Parameters Sensor Type: catalytic or electrochemical gas sensor. Gas Sampling: natural diffusion. Power Supply: DC24V±25%. Power Consumption: ≤3W. Working Method: continuous monitoring. Error Rate: ≤±5% F.S. Indication Method: 4-digit LED light. Condition Display: 3 LED lights indicate fault alarm, L-alarm level, H-alarm level. Operation Type: infrared remote control. Response Time: ≤30s (LEL) / ≤60s (toxic gas). Working Temperature: -40ºC~ 70ºC (LEL) / -20ºC~ 50ºC (toxic). Working Humidity: <93%RH. Explosion Proof: Ex d II CT6 Gb . Protection Rate: IP65. Pressure Limit: 86-106 kPa. Signal Output: 4~20mA / RS 485 / 2 relay output. Install Screw Thread: G 1/2" . Cable Dimension: ≥1.5mm2×3 . Transmit Distance: ≤1000m. Dimensions: L×W×H, 210×200×105 (mm). Weight: about 1000 (g).

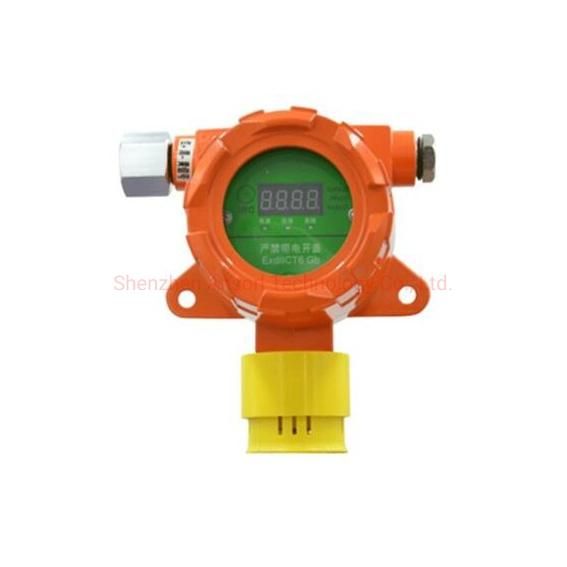

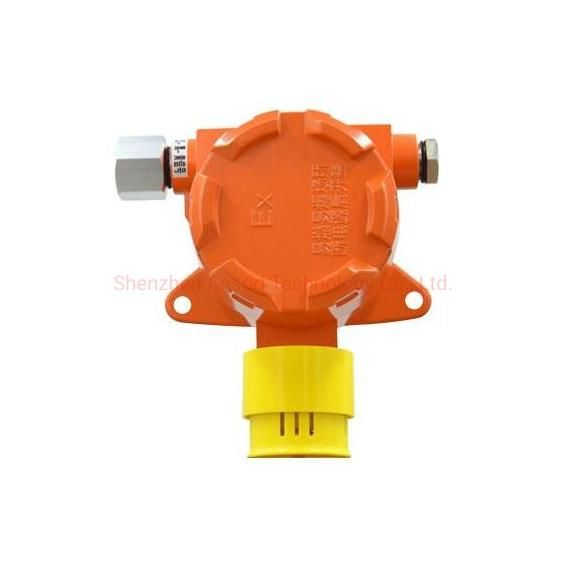

4. Gas Detector Picture:

5. Gas Detector Applications:

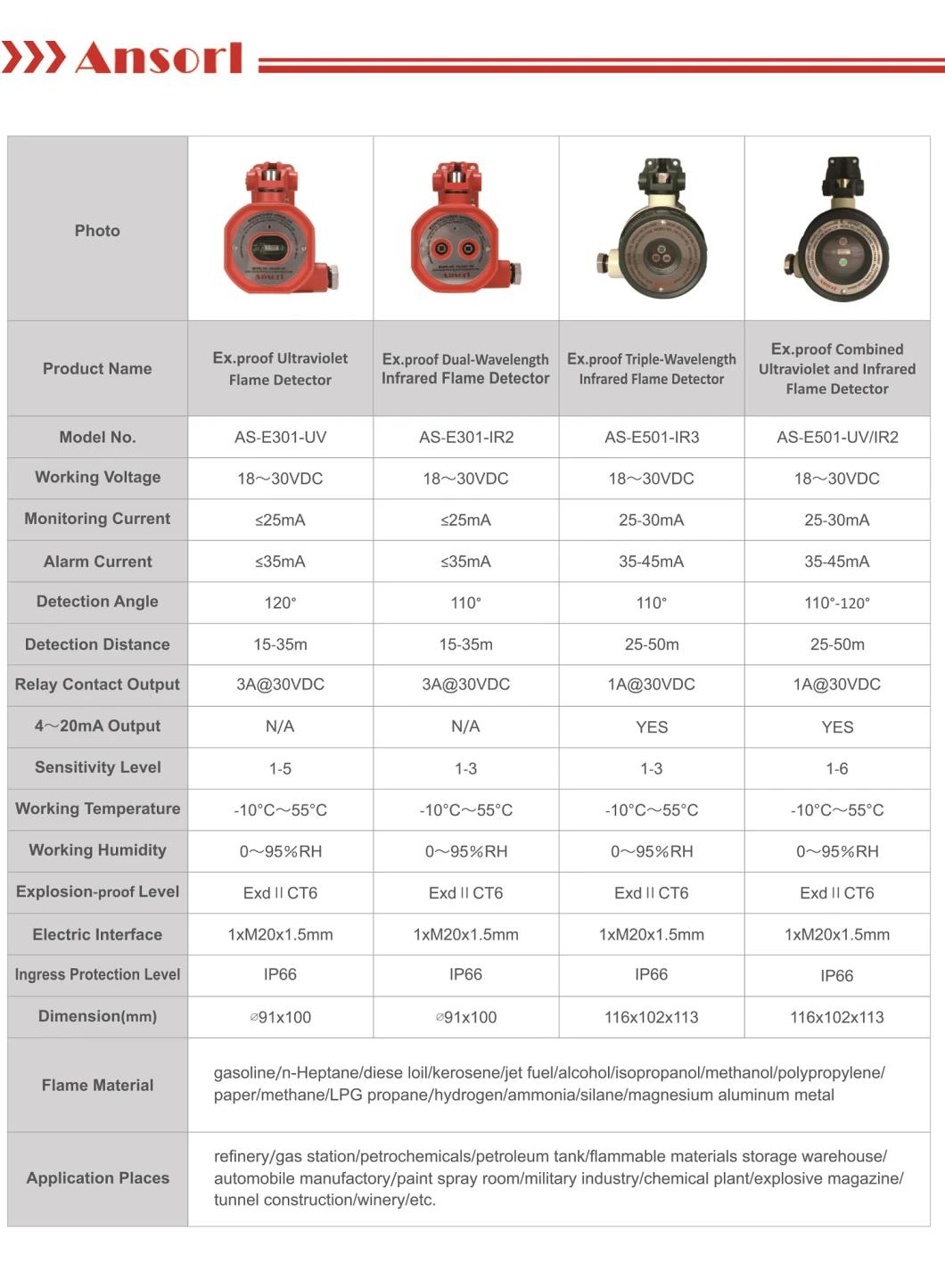

6. More Similar Items: Explosion-proof Flame Detectors



Factory Corners

Workshop and Warehouse


Mass Production


Package and Shipment


Certificates
