Best Quality Smart Sensor CH4 and Toxic Gas and Combustible Gas Fixed Gas Detector

HENAN WEIGUO INTELLIGENT TECHNOLOGY CO., LTD.
  • After-sales Service：Online Service
  • Warranty：1 Years
  • Brand：Airradio
  • Customized：Customized
  • Portable：Non Portable
  • Certification：FCC, CE, RoHS

Base Info

  • Model NO.：GTQ03
  • Gas：H2S
  • Type：Non-Dispersive Infrared Analysis
  • Measuring Gas：Combustible,Catalytic Sensor
  • Gas Detected：Toxic Gas & O2,Electrochemical Sensor
  • Target Gas：Vocs CO2 Gas,Pid Sensor

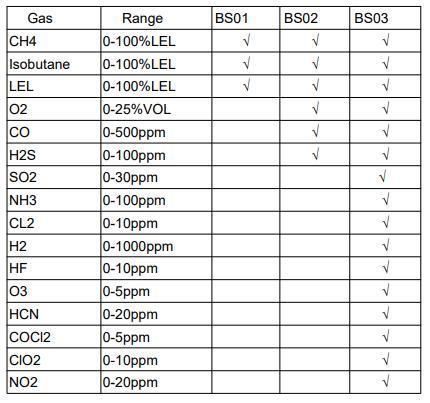

  • Measuring Range：Refer to Our Gas List
  • Sensor Life：5 Years
  • Measuring Type：Diffuse Naturally
  • Response Time：Equal or Less Than 10s
  • Signal Output：Signal Output
  • Cable / Distance：1.5 mm2, 3 Wire, Shielded,1000m (Maximum)
  • Ingress Protection：IP65
  • Dimension and Weight：293 X 263 X 108mm, About 2.7kg
  • Approval：Ex D Iic T6
  • Housing Material：Chamber: Aluminum Alloy Sensor Cover: Stainless St
  • Operation Voltage：DC24V
  • Consumption：<2W
  • Transport Package：Carton
  • Specification：293 x 263 x 108mm
  • Trademark：Airradio
  • Origin：China
  • Production Capacity：50000piece,Year

Description

Measuring gasCombustibleCatalytic sensorMeasuring gasToxic gas & O2Electrochemical sensorMeasuring gasCO2 gasNDIR sensorMeasuring gasVOCsPID sensorPowerDC24V±6V, ≤2.5W Measuring rangeRefer to our gas listRefer to our gas listMeasuring accuracy±5%F.S.±5%F.S.Cable entry NPT3/4Sensor lifeElectrochemical2 years (1 year for O2 sensor)Operating temperatureLEL: -40~70ºC   Toxic: -20~50ºCSensor lifePID sensor0.6 to 1 yearMeasuring typeDiffuse naturallyDiffuse naturallyResponse timeLEL: T90≤15sToxic gas: T90≤30sElectrical output PBUS4-20mAAlarm output signa 3 programmable relaysRelays2 free contact 1 active relayHumidity ≤95%RH  (no condensation)Operation by IR remote controlState indication Yellow--Fault, Red--Alarm, Green--PowerWorking temperatureLEL: -40~70ºC  Toxic: -20~50ºCAmbient pressure 86KPa~106KPaEx grade Ex d IIC T6 Gb / Ex tD A21 IP67 T80ºCEnclosure material Aluminium alloyIngress Protection IP67Housing material Chamber: Aluminum alloy
Sensor cover: Stainless steelDimension and weight  130x 154 x95mm, about 1.2kgCable entry NPT3/4

Best Quality Smart Sensor CH4 and Toxic Gas and Combustible Gas Fixed Gas Detector

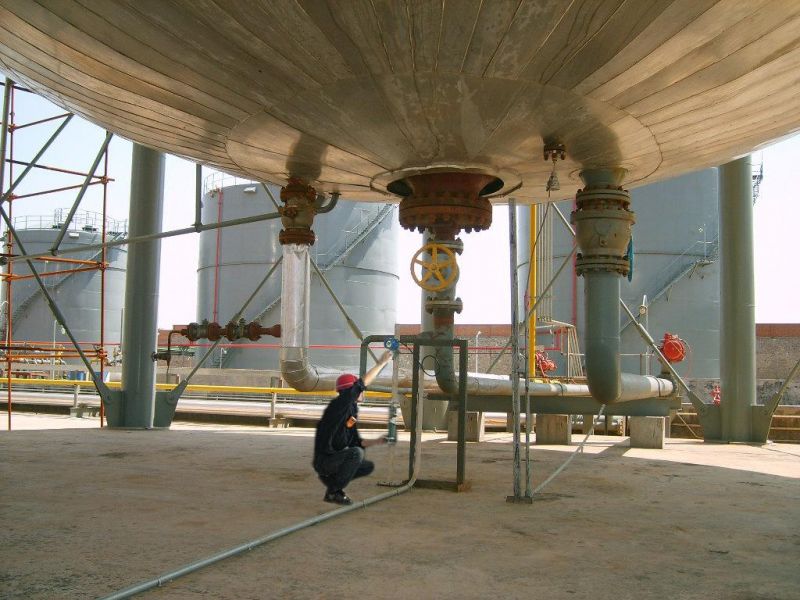

Application and Successful application Cases

Steelworks, Petrochemical plants, Shipyards, Water treatment plants, Mines, Power plants, Food industry etc.
Best Quality Smart Sensor CH4 and Toxic Gas and Combustible Gas Fixed Gas DetectorBest Quality Smart Sensor CH4 and Toxic Gas and Combustible Gas Fixed Gas Detector

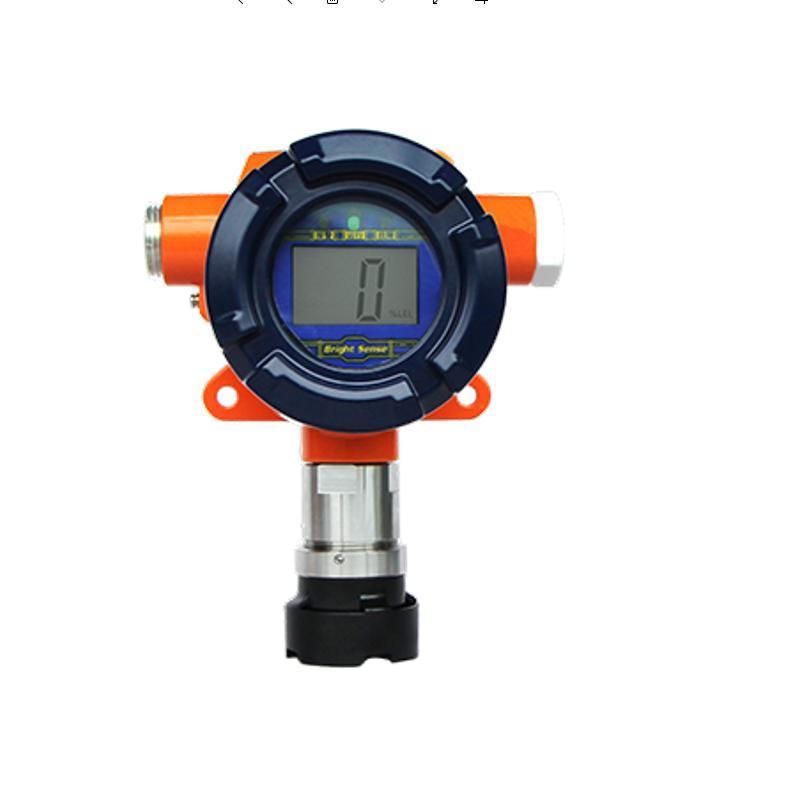

Detail Image
Best Quality Smart Sensor CH4 and Toxic Gas and Combustible Gas Fixed Gas Detector
Packaging & Delivery
Best Quality Smart Sensor CH4 and Toxic Gas and Combustible Gas Fixed Gas DetectorBest Quality Smart Sensor CH4 and Toxic Gas and Combustible Gas Fixed Gas Detector

Company Profile
We are a leading manufacturer of sensors for listed companies (SZ30007)in China. There are more than 20 subsidiaries (around core sensors)at home and abroad, many world-renowned equipment manufacturers also have our sensors commercially,  Like HoneywellVega,Draeger all our partner.There are also many European companies as well as Italian companies.
