Portable Multi Gas Analyzer 5 with Large Data Logger (customized)

Shenzhen Korno Import & Export Co., Ltd.
  • After-sales Service：Within The Valid Service Period
  • Warranty：12-Month
  • Brand：Korno
  • Customized：Customized
  • Portable：Portable
  • Certification：CE, CPA, CMC, Cnex, ISO, OHSAS

Base Info

  • Model NO.：GT-1000
  • Gas：up to 5 Gases(Customized)
  • Type：Electrochemical Gas Analyzer
  • N.W：0.55kg
  • G.W：0.9kg
  • Screen Size：3.5inch
  • Explosion Proof Sign：Exdll CT4 (Ia)
  • IP Rating：IP66
  • Power：4000mA High Capacity Polymer Rechargeable Battery
  • Sampling：Pumping, Build-in Pump
  • Storage：Large Data Logger(100, 000 Groups)
  • Alarm Type：Audible and Visual Alarm
  • Case Material：ABC+PC
  • Transport Package：Size: 29*20*10cm
  • Specification：Product size: 25.5*8*6cm
  • Trademark：Korno or customized
  • Origin：China
  • HS Code：9027100090
  • Production Capacity：10000,Month

Description

255*80*60mm(L×W×H)
0.5 Kg(net weight)Operating Pressure:-30Kpa ~ 100Kpa



4) Sensor List(partial ones listed only): GasDetection RangeResolution:Combustible Gas(EX)0-100%LEL0.1%LELCarbon Monoxide(CO)0-100,500,1000,2000,5000,10000,40000ppm0.1ppm(0-1000ppm),1ppm(0-40000ppm)Hydrogen Sulfur(H2S)0-50,100,500,1000ppm0.01ppm(0-100ppm),0.1ppm(0-1000ppm)Ammonia(NH3)0-50,100,500,1000ppm0.01ppm(0-100ppm),0.1ppm(0-1000ppm)Oxygen(O2)0-5000,10000,30000ppm,5%,30%,100%VOL1ppm(0-30000ppm),0.01%VOL(0-100%VOL)Hydrogen(H2)0-500,1000,5000,20000,40000ppm0.1ppm(0-1000ppm),1ppm(0-40000ppm)Carbon Dioxide(CO2)0-2000,5000,10000,50000ppm,20%,50%,100%VOL1ppm(0-50000ppm),0.01%VOL(0-100%VOL)Phosphine(PH3)0-100,500,1000,2000ppm0.01ppm(0-100ppm),0.1ppm(0-1000ppm),1ppm(0-2000ppm)NOTE:Price depends on the quantity you requested and the detection range you need,please contact us for confirmed!

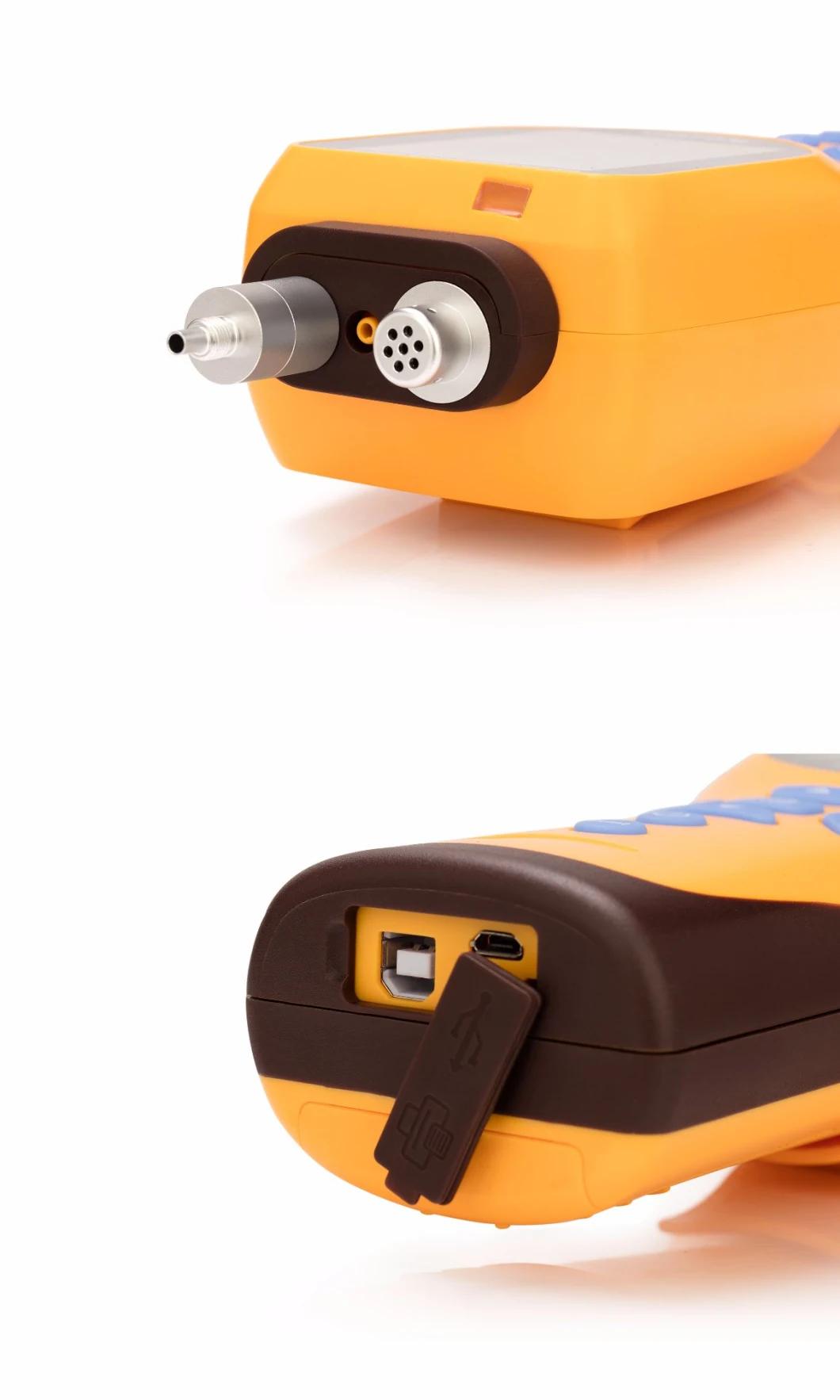

5) Details:
Portable Multi Gas Analyzer 5 with Large Data Logger (customized)

6) F&Q:
Q1:Can I have a sample order?
A1: The sample order to test are welcomed at the first time.

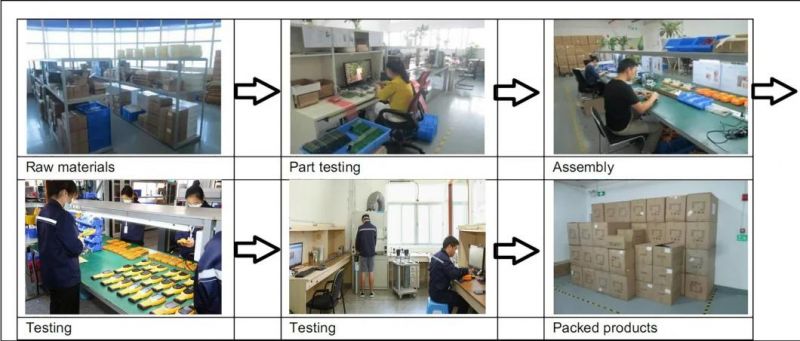

Q2:How about your production capacity and quality control?
A2:We have written instructions for incoming material&finished products inspections and testing.
      All the finished products will be 100% inspection and all the non-conforming units will be clearly
      marked and segregated to repaired and re-inspection.

Q3:How can I get a good price?
A3:We are 100% sure that we can provide you high value with competitive price and please attach your detailed request, application place, order quantity, delivery mode,payment terms to the inquiry mail ^ ^
