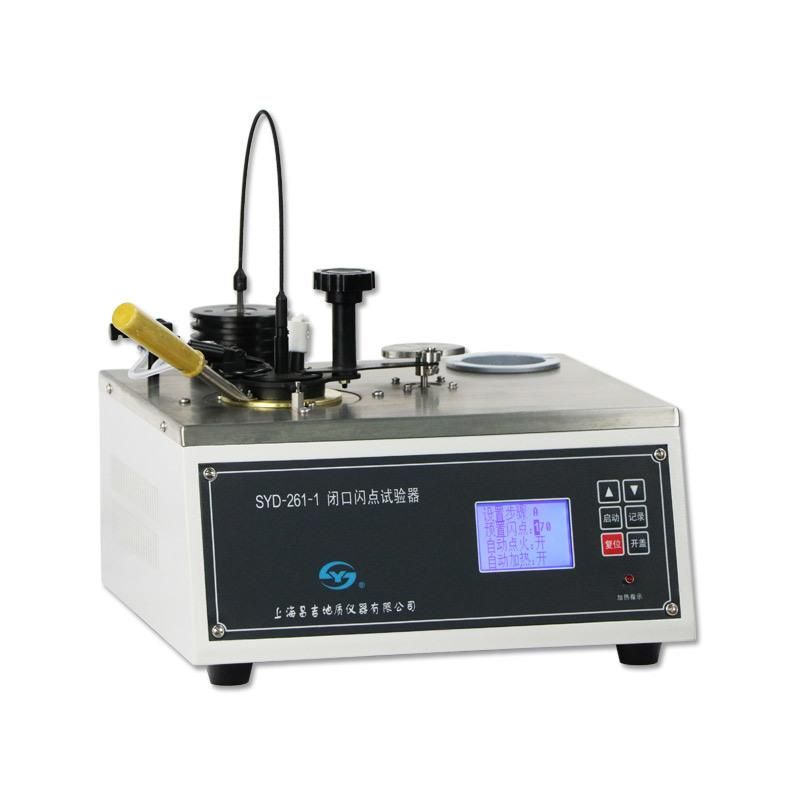

ASTM D93 SYD-261 PMCC Flash Point Tester(Manual)
Shanghai Changji Geological Instrument Co., Ltd.- Transport Package：by Carton or by Wooden Case
- Trademark：SHANGYI
- Origin：China
Base Info
- Model NO.：SYD-261-1
- HS Code：9021809090
- Production Capacity：1000 Sets,Month
Description
Main technical features1. This instrument is designed as per GB/T261 and ASTM D93.
2. The heating power is continuously adjustable. The power is shown visually by voltmeter.The temperature control mode is advanced and reasonable.
3. The structure is designed small and exquisite.The stainless-steel table board is beautiful and easy to clean.
4. Operation is easy.Test results are precise.It has been chosen as the instrument to test the closed cup flash point by many metering and detecting institutes.
Main technical specifications
1. Power supply:AC (220±10%)V, 50Hz;
2. Total power consumption:≤650W;
3. Heating device:
(1)The furnace body is made of silicon carbide
(2)Heating power is adjustable from (0-600) w.
4.Heating mode: Adjust by manual.
5.Stir mode: Mechanical drive stirring.
6. Stirring rate: Procedure A: (90~120)RPM, Procedure B: (250±10)RPM
7. Oil cup:
(1) Inner diameter: 50.7mm~50.8mm.
(2) Depth: 55.7mm~56.0mm
(3) The scribed line depth of capacity of testing oil: 33.9mm~34.3mm.
(4) Capacity of testing oil:about 70ml
8. Igniting source: gas(or other civilian fuels,the same below)
9. Thermometers:Mercury-in-glass thermometer.Specifications are as below:
(1)Scale -5ºC~110ºC, division 0.5ºC.
(2)Scale 20ºC~150ºC, division 1ºC.
(3)Scale 90ºC~370ºC,division 2ºC.
10. Ambient temperature:(15~35)ºC
Relative humidity:≤ 85%

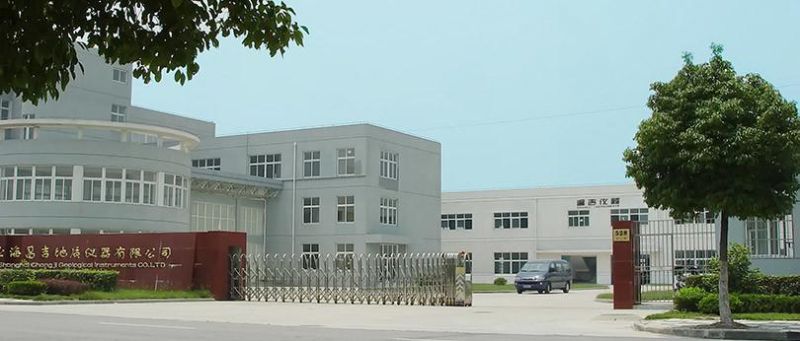

Shanghai Changji Geological Instrument Co.,Ltd is established in 1998,the former is Shanghai Geological Instrument Factory under the Ministry of the National Geology and Mineral Resource.

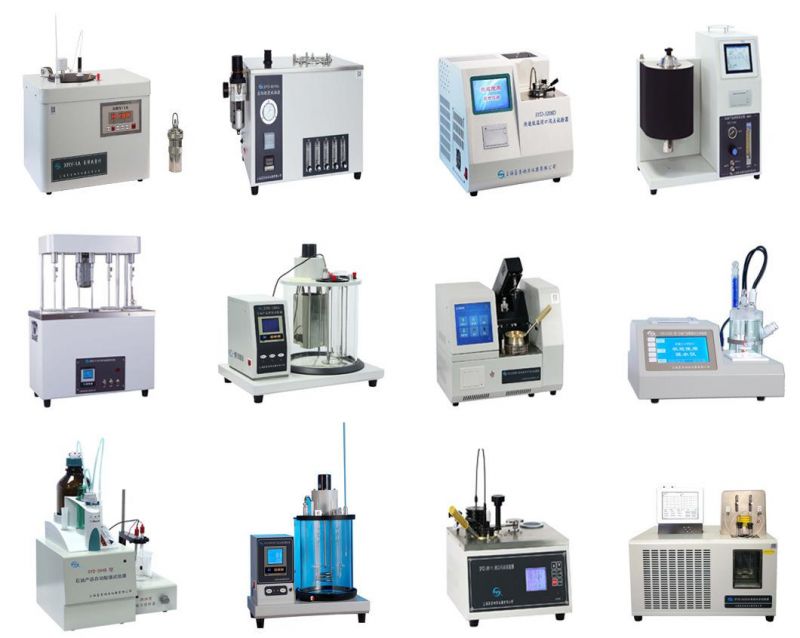

Changji has four major series and more than 200 types products: more 140 types petroleum instruments,more 60 types highway instruments,each 10 types for laboratory instruments,Rotary viscosity instruments and geological instruments.Also we develop and produce more than 30 kinds of non-standard instruments according to the clients' special requirements each year.It depends on the complete category products,strong matching capacity and fast development ability,its products are not only widely used in China,but also sold and welcomed in 20 countries.
Shanghai Changji launches advanced products domestic and overseas with innovative concept continuously replying on 50 years' R&D experience in professional instruments. Among them, the automatic flash point tester, automatic viscometer, automatic moisture tester, automatic fluorescence sulfur analyzer, etc. have reached international leading level in technology. Won a wide range of trust and praise in the domestic and foreign customers. The sales value always be the first in domestic industry.
1. Are your products competitive?
Sure, we are leading manufacturers in China with more than 30 years' experience and professional team, we can guarantee high quality, provide training and good after-sales service.
You can contact us by email, online or other ways with detailed requirements, we will recommend right one accordingly.
3. What if I have difficulty in using the instrument?
Pls contact us any time when you have difficulty in using the instruments, we will provide equipment operation manual, operation video and so on. We can also provide training on line acoordingly.
4. When can I receive the goods?
Ordinary non customized models will be delivered within 7 working days. The transportation time is determined by the logistics company.
5. How to deliver?
For domestic customers, we usually provide door-to-door service. For customers overseas, we usually deliver the instruments to the designated places.
6. How about the packing ?
Wooden cases or hard boxes are used to prevent possible damage during transportation of the instruments.
7.How about the warranty?
Usually warranty is 12 months.
