• Model NO.：Y09-5100
• Original Place：Zhejiang, China
• Clean Level：100
• Zero Count：<10min
• Location Labels：0-9999
• Power Source：DC16.8V Built-in Lithium-Ion Battery (Built-in Lit
• Max. Consumption：80W
• Weight：7.5kg
• Dimension：320 * 272 * 240 mm
• Transport Package：Wooden
• Specification：GMP
• Trademark：SUGOLD
• Origin：China, Zhejiang
• HS Code：8414809090
• Production Capacity：1000 Sets , Month

Basic Info.

Model NO. Y09-5100 Original Place Zhejiang, China Clean Level 100 Zero Count <10min Location Labels 0-9999 Power Source DC16.8V Built-in Lithium-Ion Battery (Built-in Lit Max. Consumption 80W Weight 7.5kg Dimension 320 * 272 * 240 mm Transport Package Wooden Specification GMP Trademark SUGOLD Origin China, Zhejiang HS Code 8414809090 Production Capacity 1000 Sets / Month

Product Description

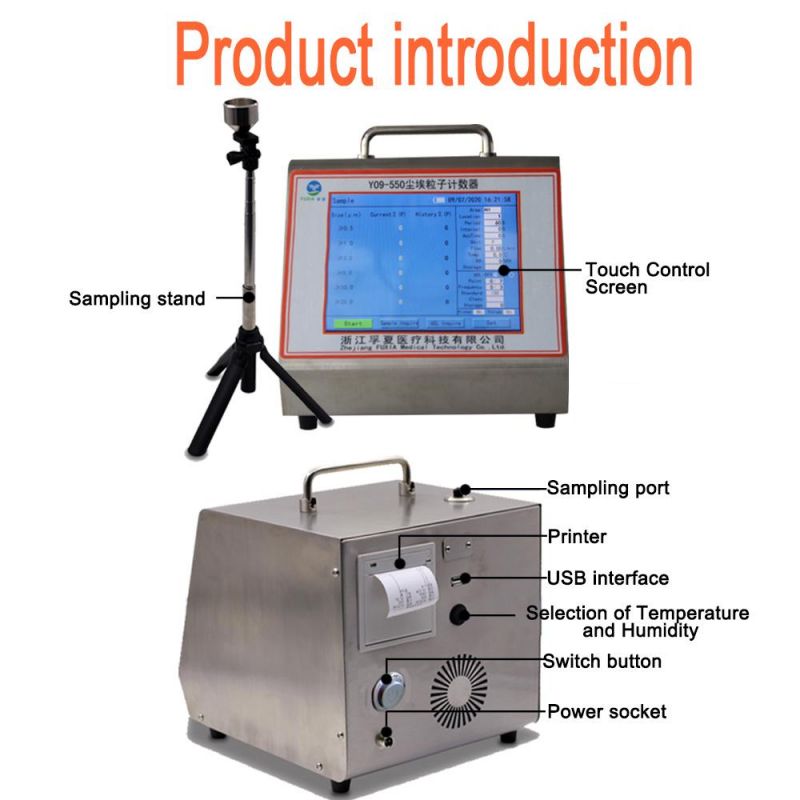

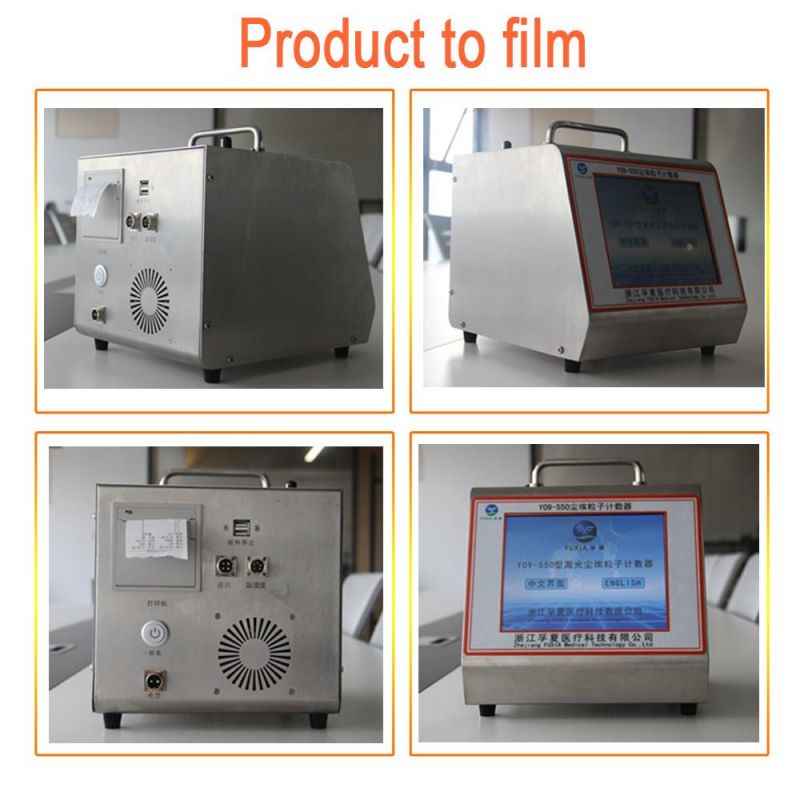

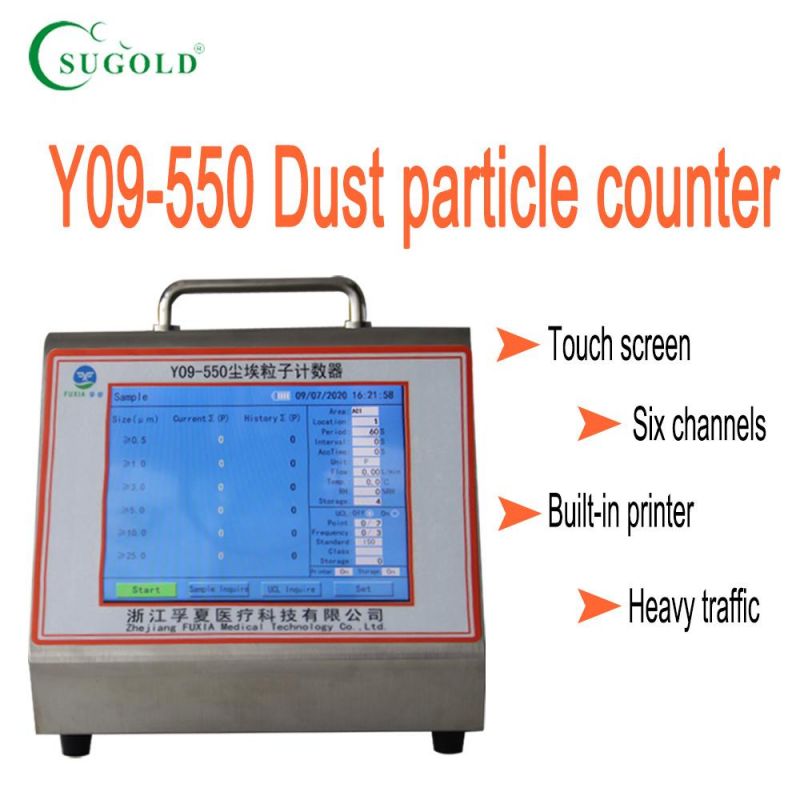

Y09-5100 Laser Airborne Particle Counter

Product Application
Y09-5100 Laser Airborne Particle Counter
Y09-5100 Laser Airborne Particle Counter is used to measure the volume of air inside the clean environment of dust particles in size and number, can be directly detected cleanliness class A area, B-class area clean environment. Y09-550 laser particle counter use a semiconductor laser light source, a large touch-screen display, small size, light weight, high precision, features simple operation, microprocessor control, storage, printing the measurement results, the test environment is very clean convenient. In addition, special software can be downloaded via computer to store data. Our products are widely used in medicine, optical, chemical, food, cosmetics, e-health, biological products, aerospace and other sectors.

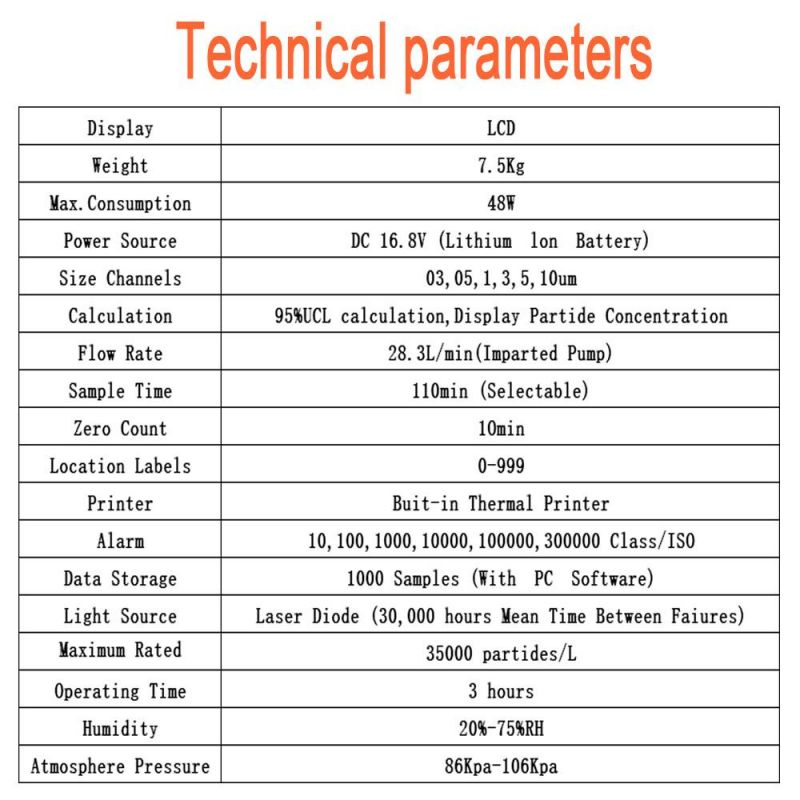

Detailed parameters:


Outside Dim	268*192*292(Wide*High*Deep)

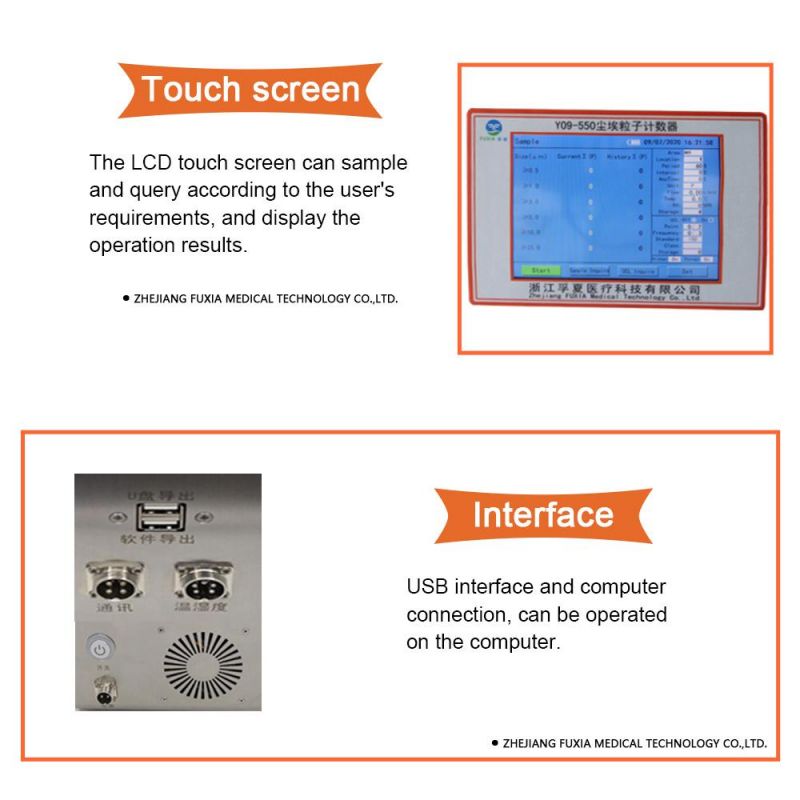

Display	Touch screen (Lcd)
Weight	7.5 Kg
Max.Consumption	80W
Power Source	DC16.8V(Built-in Lithium Battery)
Size Channels	0.5,    1,    3,        5,     10,     25μm
Calculation	95% UCL calculation of particle concentration can be displayed directly (particles / cubic meter, grain / cubic feet)
Flow Rate	100L/min (Imported Pump)
Sample Time	0~999999s(Selectable)
Zero Count	≤10min
Location Labels	0~9999

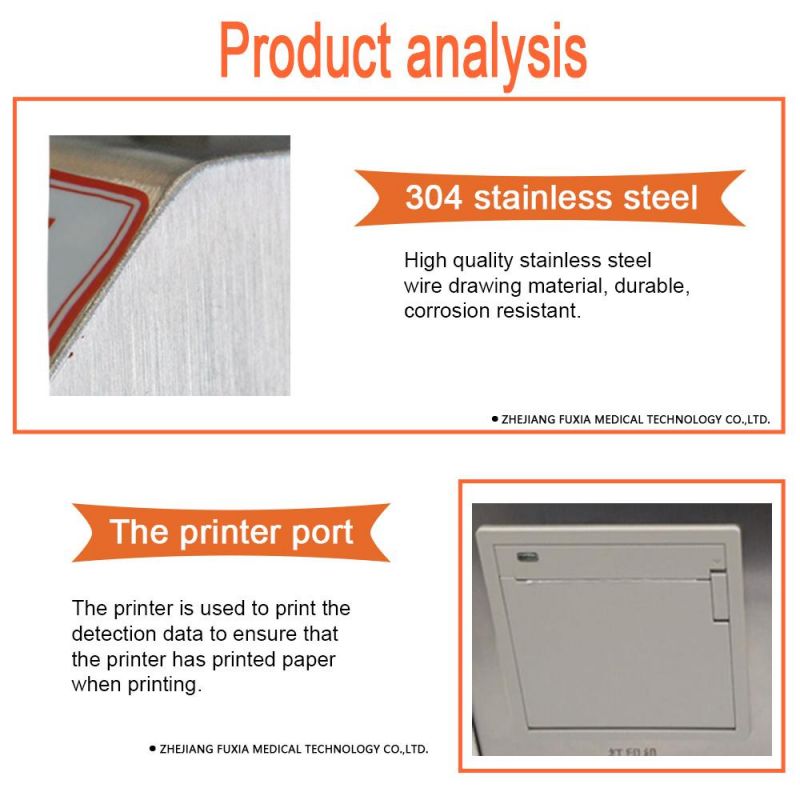

Printer	(Built-in Thermal Printer)
Alarm	ISO / own (Class)
Date Storage	20000 Samples/300Samples of UCL (With PC Software)
Date Output	USB Port
Light Source	Laser Diode ( 30000 hours mean time between failures)
Maximum Rated Particle Concentration	35000particles/L
Operating Time	3 hours
Environmental	Temperature:10~35degrees celsius Humidity:20~75percent RH  Atmosphere Pressure:86~106Kpa
