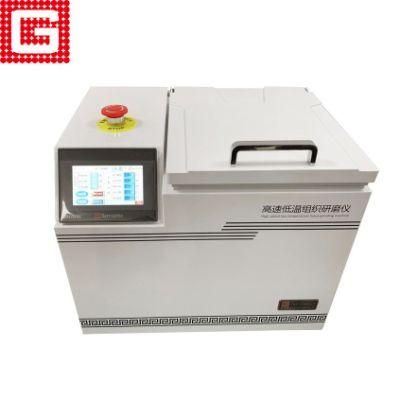

Automatic Lab Tissue Grinding Tissue Homogenizer LCD Display
Wuhan Servicebio Technology Co., Ltd.- Sample Type：Liquid
- Processing Method：Grind
- Warranty：1 Year
- Environment：Normal Pressure and Temperature
- Display：Digital Display
- Performance：Automatic
Base Info
- Model NO.：KZ-III-F
- Power Supply：220V
- Weight：0-50kg
- Certification：CE, UL, SGS
- Customized：Customized
- Net Weight：42kg
- Gross Weight：50kg
- Rotor：0.2,0.5,1.5ml
- Grinding Beads：3,4mm Steel,Zerconia
- New：Yes
- Color：White
- Usage：Tissue Grinding
- Operation：Automation
- FCC：Yes
- CE：Yes
- Efficiency：24 Samples,Min
- OEM/ODM：Yes
- Model：Kz-III-F
- Samples：Animal and Plant
- Control Console：Screen
- Transport Package：Wooden Case
- Specification：54.5*41*84.5cm
- Trademark：Servicebio
- Origin：China
- HS Code：8479820090
- Production Capacity：1000,Per Month
Description
Model
Voltage
AC200-240V
Frequency
50HZ
N.W
42kg
GW
50kg
Dimension(L*W*H)
54.5cm*41cm*84.5cm

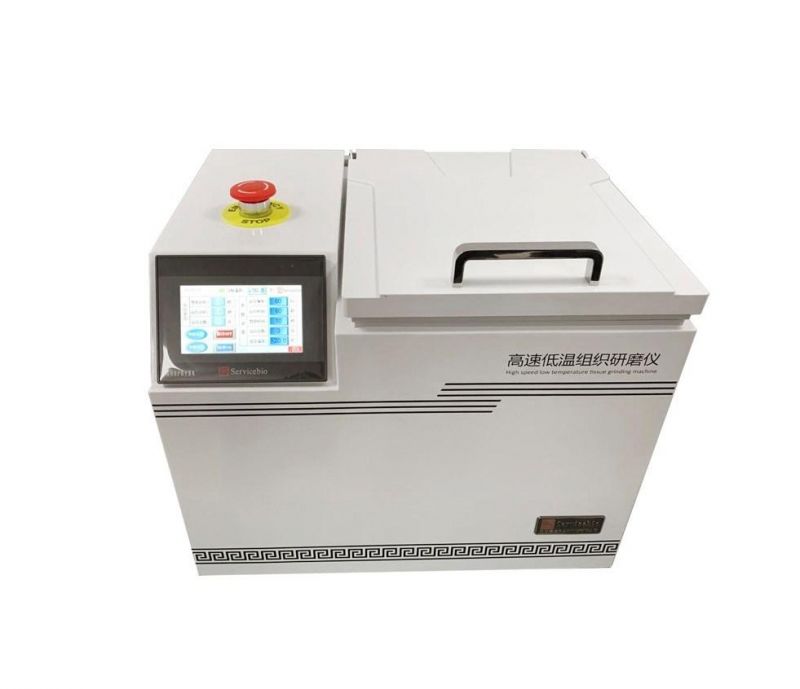

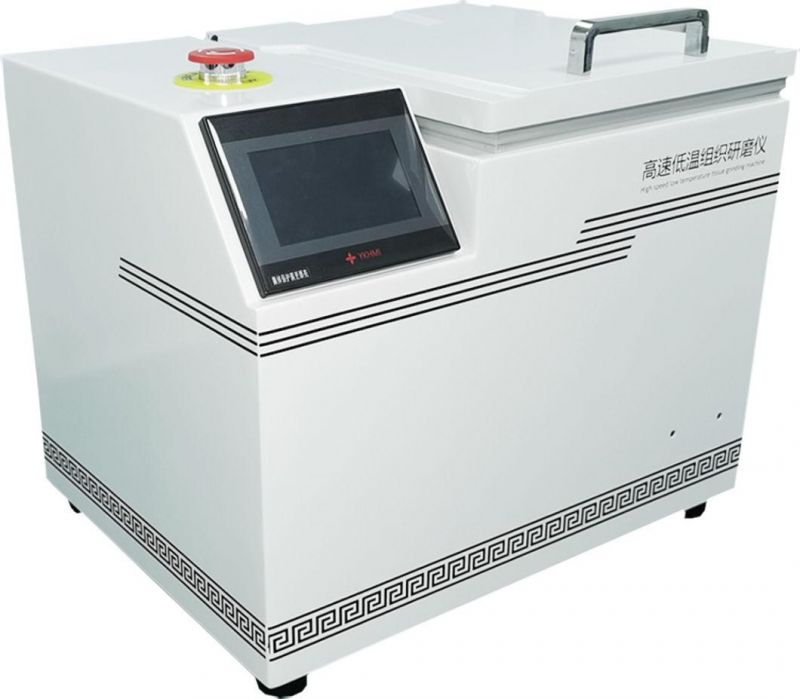

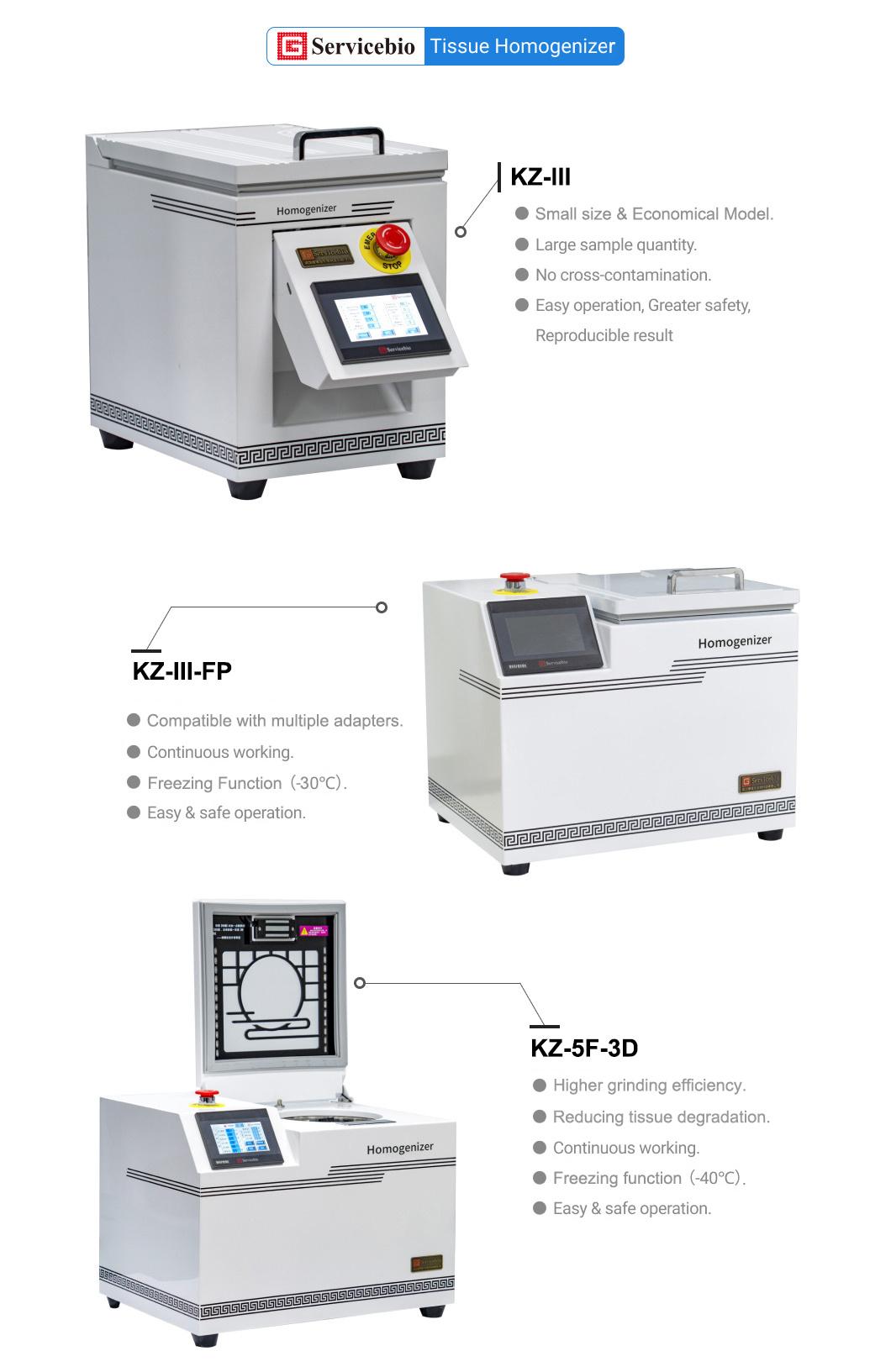

Product Show
Features
1. Large sample quantity: 24 samples can be ground within one minute.
2. No cross-contamination: Samples are placed in different tubes that are fully closed during grinding process, avoiding cross-contamination between samples.
3. Easy operation: Grinding time and frequency can be easily set at any time during the operation process.
4. Greater safety: The machine is running with a protective cover and can be stopped at any time by the emergency button.
5. Reproducible result: Under the same grinding condition, the same batch of samples has the same grinding results.
6. No sample transfer: After grinding, the samples can be directly centrifuged without transferring to new tubes.
Protein extraction
| Tissue | Spec 0f beads | Frequency | Time | Extraction |
| Plant | 3mm Bead*2 or 4mm, Bead*1 | 60Hz | 60 Seconds | Protein Lysis Buffer |
| Heart, Kidney, Brain, Liver, Spleen, Lung of Rat & Mouse | 4mm Bead*1+3mm, Bead*2 | 60Hz | 60 Seconds | Protein Lysis Buffer |
| Colon, Stomach, Muscle, Fat of Rat & Mouse | 4mm Bead*1+3mm, Bead*2 | 70Hz | 120 -180 Seconds (Pause for 30 seconds in every 60 seconds) | Protein Lysis Buffer |
| Skin, Ear, Tail, Vessel of Rat & Mouse | 4mm Bead*2+3mm, Bead*3 | 70Hz | 180 - 300 Seconds (Pause for 30 seconds in every 60 seconds) | Protein Lysis Buffer |
RNA Extraction
| Tissue | Spec of beads | Frequency | Time | Extraction |
| Plant | 3mm Bead*2 or 4mm, Bead*1 | 60Hz | 60 Seconds | RNA Lysis Buffer |
| Heart, Kidney, Brain, Liver, Spleen, Lung of Rat & Mouse | 4mm Bead*1+3mm, Bead*2 | 60Hz | 70 Seconds | RNA Lysis Buffer |
| Colon, Stomach, Muscle, Fat of Rat & Mouse | 4mm Bead*2+3mm, Bead*3 | 70Hz | 120 -180 Seconds (Pause for 30 seconds in every 60 seconds) | RNA Lysis Buffer |
| Skin, Ear, Tail, Vessel of Rat & Mouse | 4mm Bead*3+3mm, Bead*5 | 70Hz | 180 - 300 Seconds (Pause for 30 seconds in every 60 seconds) | RNA Lysis Buffer |
