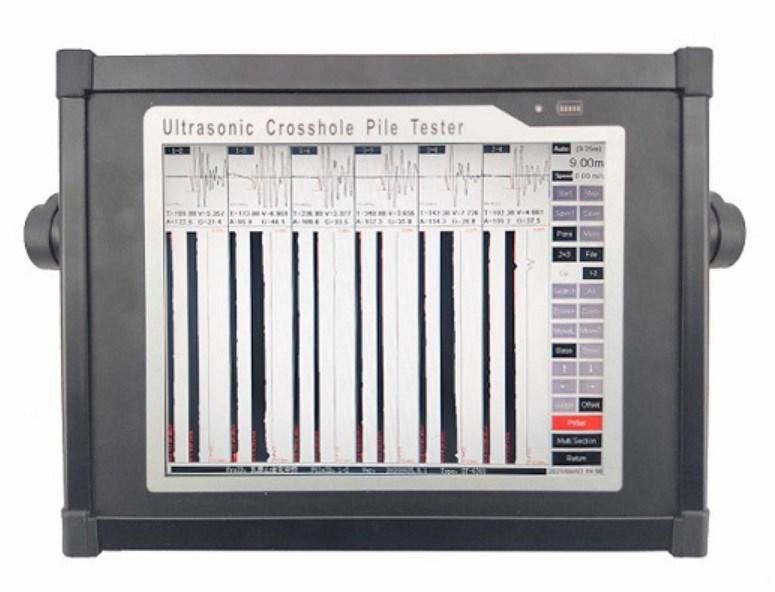

Ultrasonic Crosshole Automatic Pile Integrity Testing System with 2channels/3channels/4channels

Beijing Samyon Instruments Co., Ltd.
  • After-sales Service：24hours
  • Warranty：One Year
  • Standard：ASTM D6760
  • Channel：Two
  • Transmission Mode：Continuous and External
  • Amplifier Bandwidth：10kHz to 300kHz

Base Info

  • Model NO.：2channels
  • Sound Time Accuracy：0.05us
  • Transport Package：Carton
  • Trademark：SAMYON
  • Origin：Cn
  • HS Code：903180
  • Production Capacity：100sets Per Month

Description

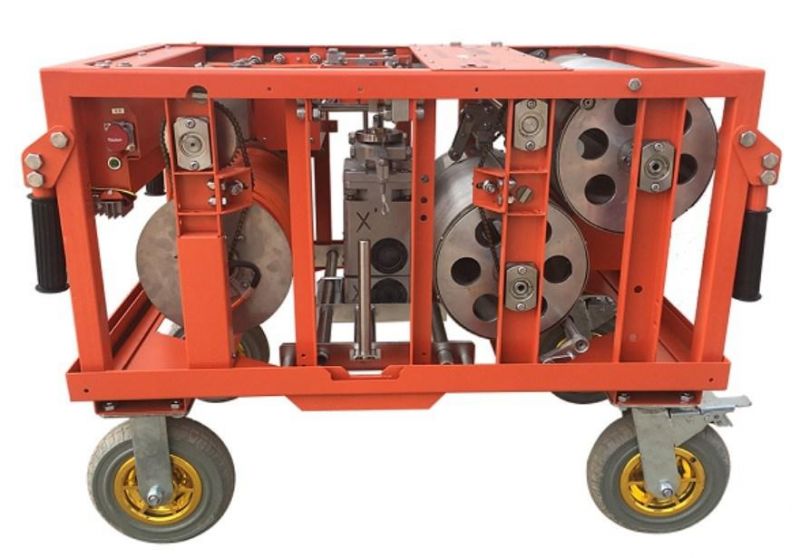

ItemSpecificationMain control unitHigh-performance embedded computerInput methodkeyboardInterfaceUSBReceive channelTwoTransmission modeContinuous and externalReceive sensitivity≤30uvAmplifier bandwidth10kHz to 300kHzSound time accuracy0.05usDisplay640*480 high brightness TFT panelStorage1G(Interior)    2G(U-Disk)Max sample data length64kTrigger voltage65,125,250,500,1000(selectable)Amplifier gain82dBSample periods0.05us to 6.4us,8grade adjustableAmplifier resolution0.39%PowerInterior lithium battery works more than 6hoursExternal lithium battery works more than 6hours (Optional)DC 12V interfaceAC 100V-240V,50/60HZSize260*185*60mmWeight1.75kg(including the batteryTemperature-10ºC~ +40ºCHPTLPTL-HPT Ultrasonic Crosshole Automatic Pile Integrity Testing System with 2channels/3channels/4channels  Ultrasonic Crosshole Automatic Pile Integrity Testing System with 2channels/3channels/4channelsUltrasonic Crosshole Automatic Pile Integrity Testing System with 2channels/3channels/4channelsSLPTDRILLHOLECSLUltrasonic Crosshole Automatic Pile Integrity Testing System with 2channels/3channels/4channelsUltrasonic Crosshole Automatic Pile Integrity Testing System with 2channels/3channels/4channelsUltrasonic Crosshole Automatic Pile Integrity Testing System with 2channels/3channels/4channels
