• Model NO.：PH5806
• Origin：Shanghai, China
• HS Code：9027809900
• Production Capacity：1000piece,Month

Basic Info.

Model NO. PH5806 Origin Shanghai, China HS Code 9027809900 Production Capacity 1000piece/Month

Product Description

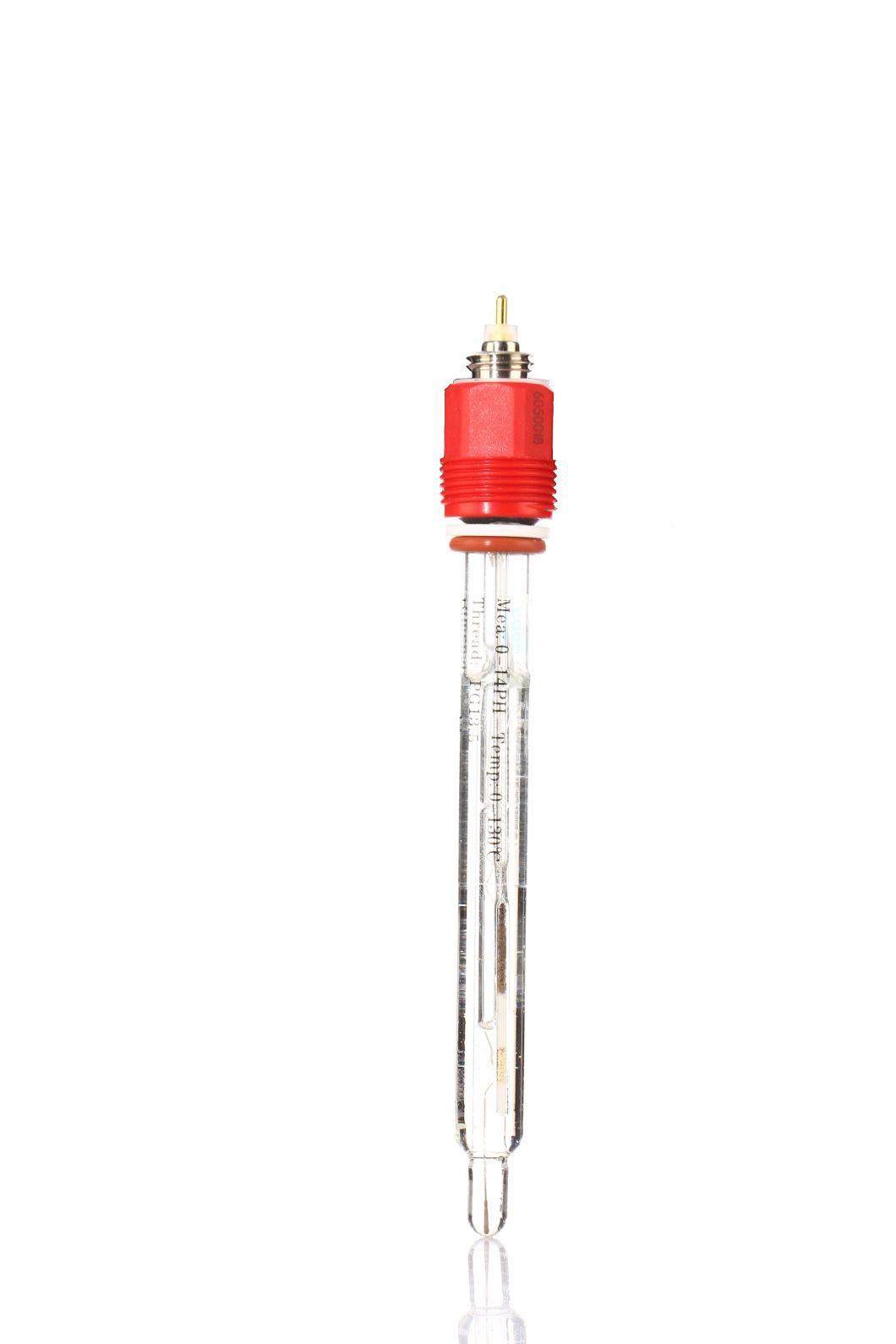

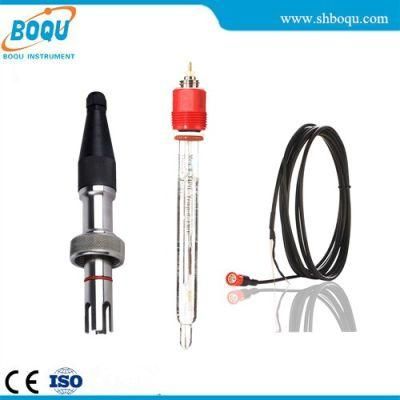

PH-5806 High Temperature PH sensor

Technical Indexes
Measuring range: 0-14pH Temperature range: 0-85º C
Compressive strength: 0.6MP Socket: S7 and PGl3.5 thread
Dimensions: Diameter 12 x 120 Material: Glass

Features
1 It adopts gel or solid electrolyte, resisting pressure and helping reduce resistance; Low resistance sensitive membrane. Waterproof connector can be used for pure water testing.
2 There is no need for additional dielectric and there is a little amount of maintenance.
3 It adopts BNC connector, which can be replaced by any electrode from abroad.
4 It can be used in conjunction with 361 L stainless steel sheath or PPS sheath.
Scope of application
Water treatment, pure water industry, power plants, etc.




Model No.: GPE801

Technical Indexes
Measuring range: 2-12 pH Temperature range: 0-60º C
Compressive strength: 0.6MPa
Dimensions: Diameter 12 x 120mm
Material: Glass
Connection: BNC and "Y" plate

Features
1 It adopts a large area of low resistance sensitive membrane, suitable for the use in
Pure water.
2 It adopts gel dielectric and solid dielectric salt bridge. Two different kinds of
Colloidal dielectrics form the pool electrode, and this unique technology ensures a
Longer life and reliable stability of the electrode.
3 Direct Wiring; With BNC and "Y" plate; It can be added with the temperature
4 Compensation resistance and it also can be replaced by any electrode from abroad.

Scope of application
Water treatment, pure water industry, power plants, etc.
