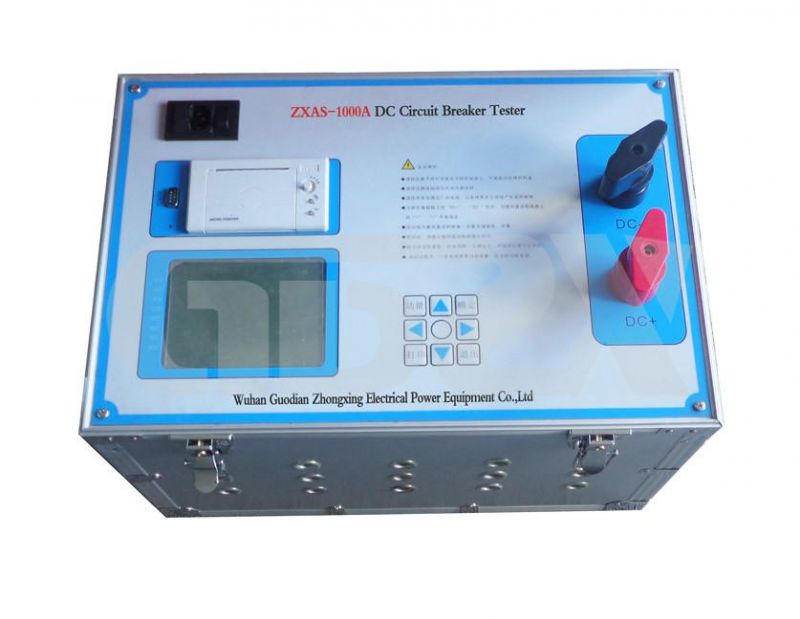

CE Certified 1000A DC Circuit Breaker Tester Ampere-Second Characteristics Analyzer
Wuhan GDZX Power Equipment Co., Ltd.- After-sales Service：Provide lifelong after-sales service
- Warranty：1 Year
- Testing Current Range：0-1000A
- Time range：0-9999s
- Stability of output current：≤0.5%
- Testing current ripple coefficient：<5%
Base Info
- Model NO.：ZXAS-1000A
- Storage capacity：200 testing results
- Working environment：-20--50ºC
- Power Supply：AC220V 50Hz
- Transport Package：Carton
- Specification：470*320*460mm 20KG
- Trademark：GDZX
- Origin：China
- HS Code：9030339000
- Production Capacity：2000 PCS,Month
Description
According to the actual situation of ampere second characteristic test of DC protection appliances, GDZX has launched a ZXAS-1000A DC circuit breaker tester which is suitable for on-site use in substations, easy to carry and high degree of automation. It can provide the operation and maintenance department with a means to test the action characteristics of DC protection appliances and verify the action characteristics and differential coordination of DC protection appliances, In order to improve the reliability of DC system operation and ensure the safe and reliable operation of power grid.
Technical Indicators
| 1. Power supply | AC220V±10%, 50Hz±0.5Hz |
| 2. Testing current range | 0-1000A |
| 3. Testing current ripple coefficient | <5%<> |
| 4. Stability of output current | ≤0.5% |
| 5. Time | 0-9999s; Time resolution(min.): 0.001s |
| 6. Environmental temperature | -20--50ºC. |
| 7. Size | 470*320*460mm |
| 8. Weight | 35kg |
About GDZX
Shipping and packaging
Features
1. The instrument can be used separately or linked to PC.
2. 320*240 LCD screen, thermal printer, interactive keyboard operation, and intelligent operation system.
3. Power electronics controlling technique has been adopted to output high current, with high speed, high precision and continuous adjustability.
4. Current range can be automatically switched by multiple high precision sensors.14 digit AD acquisition chip of high capacity.
5. Automatic data storage. Be capable of saving 200 testing results, which will not lose in power failure.
6. Two options: ampere-second characteristic test or through current characteristic test.
7. When linking to PC, it is available to do following operations, such as controlling the instrument, data importing, data saving, data report and data graph generation.
8. Protection functions for overheat, over-current and over voltage.
9. Anti-interference capacity and good EMC(electromagnetic compatibility).
