• Model NO.：WZB-170
• Mains Voltage：AC220V±20% 50Hz±10%
• Maximum Power Dissipation：20W
• MOQ：1
• Transport Package：Wooden Box with Foam Inside
• Specification：CE,ISO,IEC
• Trademark：HuaZheng
• Origin：Hebei, China
• HS Code：9024109000
• Production Capacity：1000 PCS,Month

Basic Info.

Model NO. WZB-170 Mains Voltage AC220V±20% 50Hz±10% Maximum Power Dissipation 20W MOQ 1 Transport Package Wooden Box with Foam Inside Specification CE/ISO/IEC Trademark HuaZheng Origin Hebei, China HS Code 9024109000 Production Capacity 1000 PCS/Month

Product Description

Portable Water Quality Analysis Digital Turbidity Meter/Portable Turbidimeter Price
I.Introduction

• 1-4 points calibration using Formazin standards or zero water.
• Autoranging from 0-200 NTUs.

GENERAL FEATURE

• Uses Nephelometric principle with 90° detection.
• Meets ISO 7027 and offers consistent light source for higher accuracy.
• Selectable turbidity units, including the NTU, FNU and EBC.
• Settable parameters, including user ID, number of calibration points, data and time, etc.
• Auto-power-off feature effectively extends the battery usage time.
• IP65 waterproof.

METER INCLUDES
WZB-170: 2pcs turbidity bottles
The main technical parameters

Model Technical parameters	WZB-170
light source	850 nm LED, meeting ISO 7027 standard
Measuring range	(0~20.00)NTU,(20.0~200.0)NTU
Resolution	0.01 NTU,0.1 NTU
Indication error	±8%
repetitive	±1.0%
Zero drift	±0.5% FS/30min
Indication stability	±1.0% FS/30min
Protection grade	IP65
Dimension (mm)& Weight (kg)	220×100×80, 0.8

Main functions

Model Main functions	WZB-170
light source	850 nm LED, meeting ISO 7027 standard
Measuring principle	Transmission-scattering light measurement
Multi-point calibration	Zero and up to 3 point calibration
Chromaticity compensation	/
Ratio calibration	/
Range switching	Automatic switching
data storage	/
The USB communication	/

Company Information

HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.

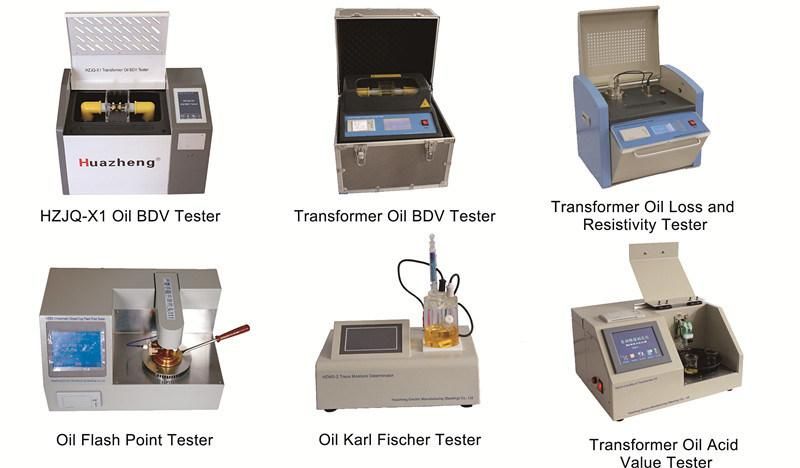

Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
