• Model NO.：GDYJ-502
• Waiting Time Setting for User-Defined Mo：0~999s
• Test Error：3%Rdg+0.3%Fs
• Maximum Storage Capacity：100 Groups of Test Data
• Power Supply：AC220V±10%, 50Hz,60Hz
• Transport Package：Wooden Case
• Specification：Insulating Oil BDV Tester
• Trademark：GOLD
• Origin：Chongqing
• HS Code：9013809000
• Production Capacity：50 Sets , Month

Basic Info.

Model NO. GDYJ-502 Waiting Time Setting for User-Defined Mo 0~999s Test Error 3%Rdg+0.3%Fs Maximum Storage Capacity 100 Groups of Test Data Power Supply AC220V±10%, 50Hz/60Hz Transport Package Wooden Case Specification Insulating Oil BDV Tester Trademark GOLD Origin Chongqing HS Code 9013809000 Production Capacity 50 Sets / Month

Product Description

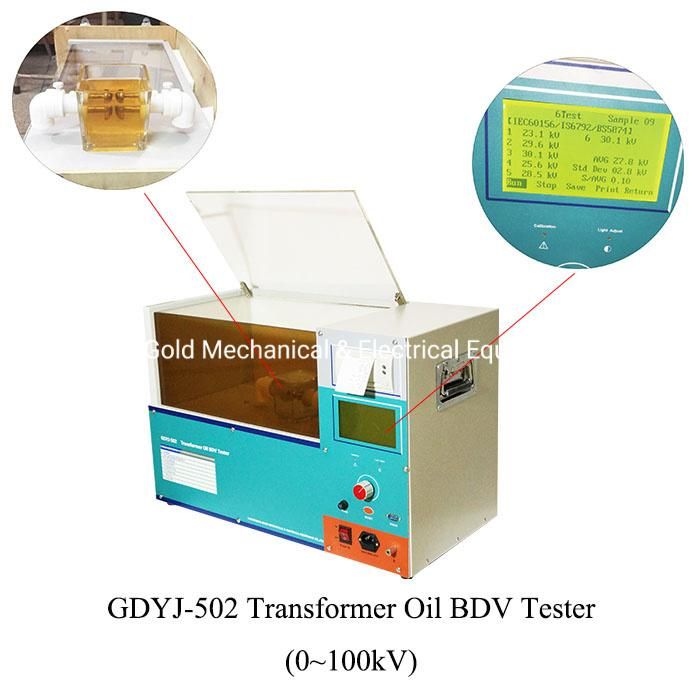

100KV Insulating Oil BDV Tester, Oil Dielectric Strength Tester



Introduction:

• It is developed according to the national standard IEC156 Insulating Oil Dielectric Strength Testing Method;

• It has large LCD display, micro-printer and can store 100 groups data;

• It is multi-functional, stable, and easy for operation;


Functions:

• Breakdown test of user-defined;

• Proof test;

• IEC60156/IS6792/BS5874 test;

• ASTM D1816 standard test;

• ASTM D877 standard test;

• 5 minutes standard test;

• Manual test;

• Calibration interface for customers;

• Uploading data to PC and making word report automatically;

• Result print;


Features:

• LCD screen can display test procedure and test result;

• All the human interaction operations complete by the rotating mouse;

• It is very easy for customers to measure the breakdown voltage of all kinds of oil;

• You can print the test result by the micro printer internal the tester;

• Meanwhile, you can upload the test data to PC from RS232 for data analyzing;

• The special circuit design makes the tester has a good performance at stability and anti-noise;

Specifications:


Output voltage	AC 0~100KV
Rate of voltage rise	0.5kv/s±5%, 2kv/s±5%, 3kv/s±5%,5kv/s±5%
Max test times setting for user-defined mode	9
Stir time setting for user-defined mode	0~999s
Waiting time setting for user-defined mode	0~999s
Test error	3%RDG+0.3%FS
Maximum storage capacity	100 groups of test data
Test standards	IEC60156, IS6792, BS5874, ASTM D1816, ASTM D877
Display	256´128 LCD
Input voltage	AC 220V±10% 50Hz/60Hz
Environment temperature	0-50ºC
Relative humidity	≤80%RH
Size	420mm×380mm×410mm
Weight	28kg

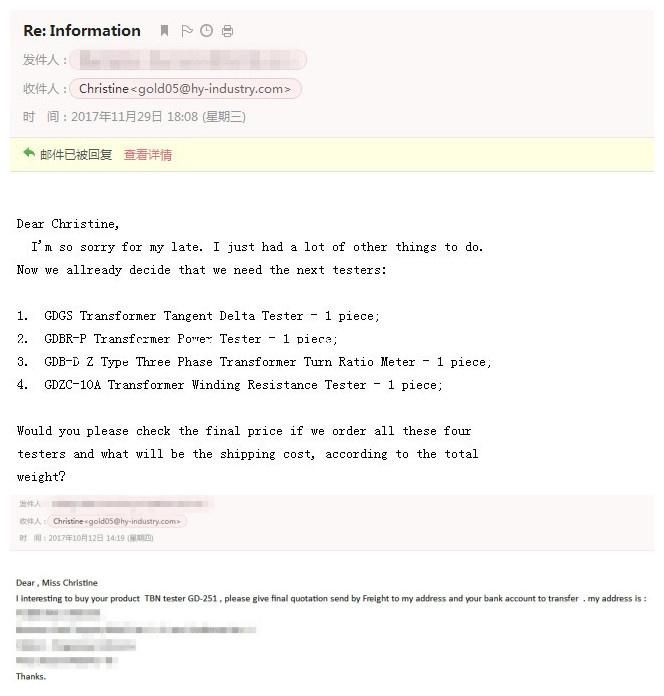

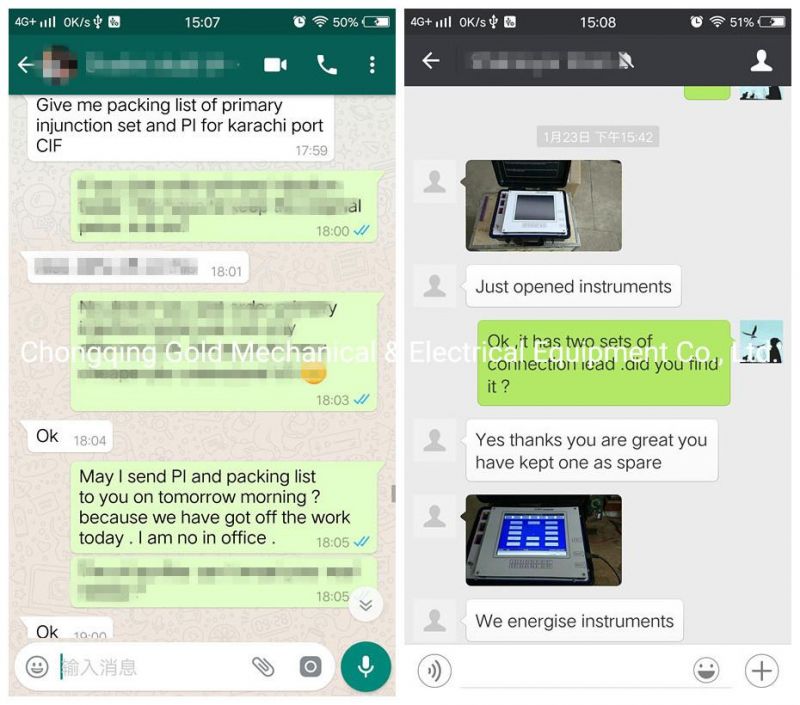

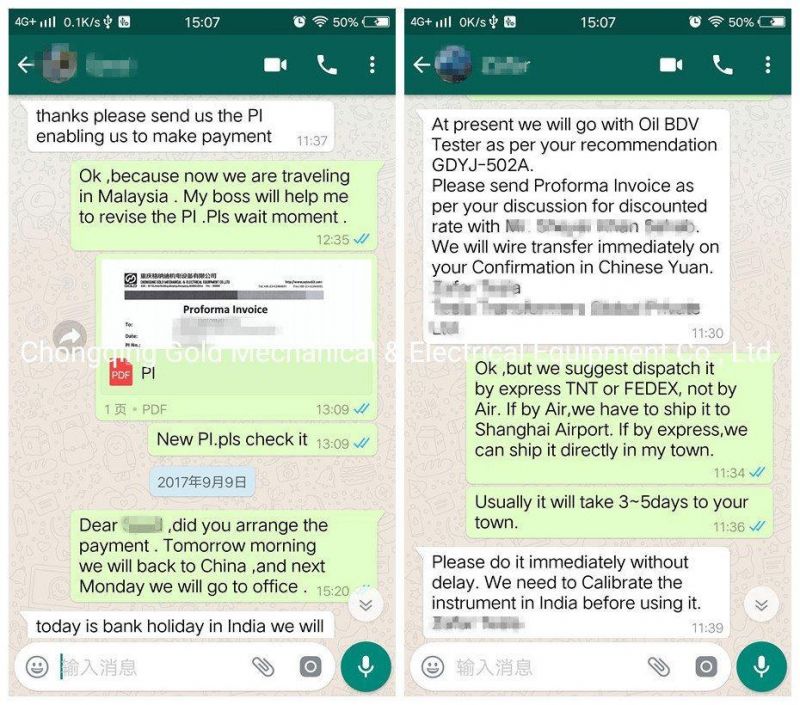

Success Case:
