• Model NO.：SKZ1050-NH3

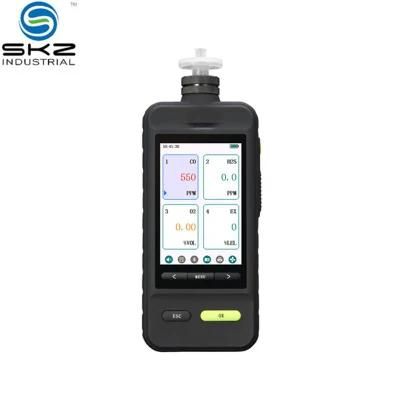

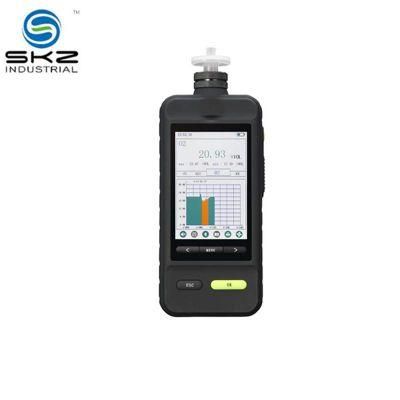

• Type：Electrochemical Gas Analyzer
• Measure Range：0-100, 200ppm, 0-500, 1000ppm
• Resolution：0.01ppm, 0.1ppm
• CE Certification：CE Marks
• Response Time：Less Than 10s
• Waterproof：IP66
• Sensor：Imported High Precision Sensor
• Alarm Points：Two Sound and Light Alarm Points
• Transport Package：Customed Foam Inner to Fixed The Detector, Aluminu
• Specification：27X23X11 cm
• Trademark：SKZ
• Origin：China
• HS Code：9027100090
• Production Capacity：50000PCS,Year

Gas Detected

Ammonia NH3

Detection principle

Electrochemical principles

Sampling Method

Pump- suction, flow up 1L/min, pump suction size ten stalls adjustable

Data logger

100,000 sets of data can be stored, storage interval available set, minimum 5S, can be browse

Measure Range

0-100, 200ppm, 0-500, 1000ppm

Resolution

0.01PPM(0-100PPM), 0.1PPM(0200ppm, 0-500, 1000ppm)

Precision

2% FS

Response Time

≤ 10S

Repeatability

≤ ± 1%

Zero shift

≤ ± 1% (F.S / Year)

Operating language

Support in English

Temperature

-40 ºC ~ 70 ºC

Explosion-Proof

Exia II CT4

Alarm mode

Sound, light, vibration

Dimensions

205*75*32mm

Recovery Time

≤ 10S

Linearity error

≤ ± 1%

Display

LCD

Gas unit

multiple gas unit

Humidity

0-95% RH

Degree of protection

IP66

Operating time

100 hours (off pump)

Weight(net)

300g

Standard

1 detector, 1 USB data cable, 1 charging plug, 1 aluminum alloy packing box, 1 manual, 1 warranty card.
 Optional

Data download (EXCEL fromat to computer) function, detachable needle, hose, holster, waterproof and dustproof filter, high temperature probe (up to 1200 degrees)

Packaging & Shipping
Customer show

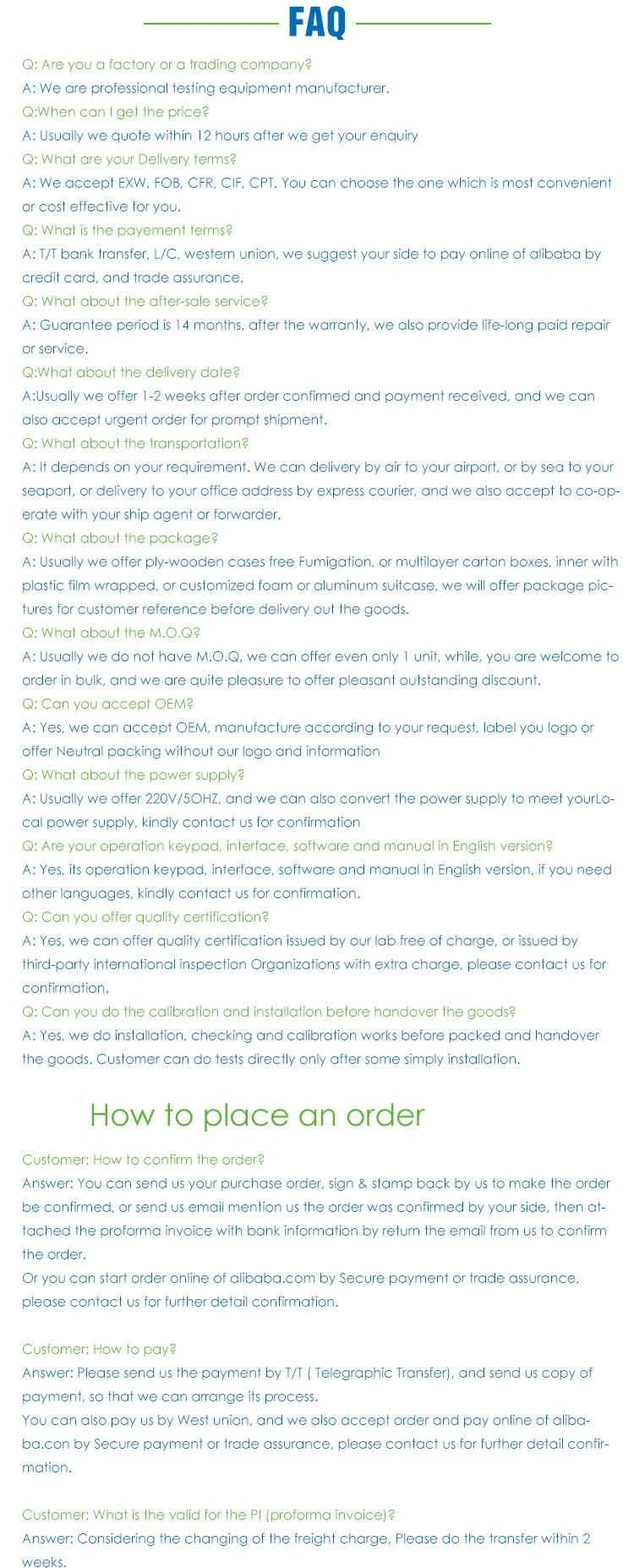

FAQ
