Boqu Drinking Water Multiparameter Analyzer
Shanghai Boqu Instrument Co., Ltd.- After-sales Service：Support
- Warranty：1year
- Model：Dcsg-2099
- Item：Multi-Parameter
- Transport Package：PP Bag, Carton
- Specification：CE, SGS, ISO
Base Info
- Model NO.：DCSG-2099
- Trademark：Boqu
- Origin：Shanghai
- HS Code：9027809900
- Production Capacity：60000PCS,Year
Description
1. Display: LCD display, menu
2. Conductivity : Electrode constant (1 ~ 3000) μS / cm, 0 ~ 99.9 °C
0.01 ~ 30μS/cm; ( electrode constant K = 0.01 )
0.1 ~ 300μS/cm; ( electrode constant K = 0.1 )
1.0 ~ 3000μS/cm; ( electrode constant K = 1.0 )
10 ~ 30000μS/cm; ( electrode constant K = 10.0 )
3. Conductivity accuracy : ± 0.5% FS, ± 0.3 °C
4. pH measuring range : (0.00 ~ 14.00) pH;
Electronic unit basic error : ± 0.02pH
5. The basic error of the instrument : ± 0.05pH
6. The temperature range : 0 ~ 99.9 °C; electronic unit basic error : 0.3 °C
7. The basic instrument error : 0.5 °C (0.0 °C ≤ T ≤ 60.0 °C); another range 1.0 °C
8. The whole basic error : ug / L: ± 1.0% FS; mg / L: ± 0.5% FS; Temperature : ± 0.5 °C
9.The electronic unit basic error : ± 1.0% (FS); Instrument basic error : ± 2.0% (FS)
10. Measuring range: 0~10NTU,0~20NTU, 0~100NTU, 0~500NTU, 0~1000NTU
0~2000NTU, 0~4000NTU(specified when ordering)
11. Resolution:0.001NTU,0.01NTU,0.1NTU,1NTU
12. Each channel Independently: Each channel data measure simultaneously

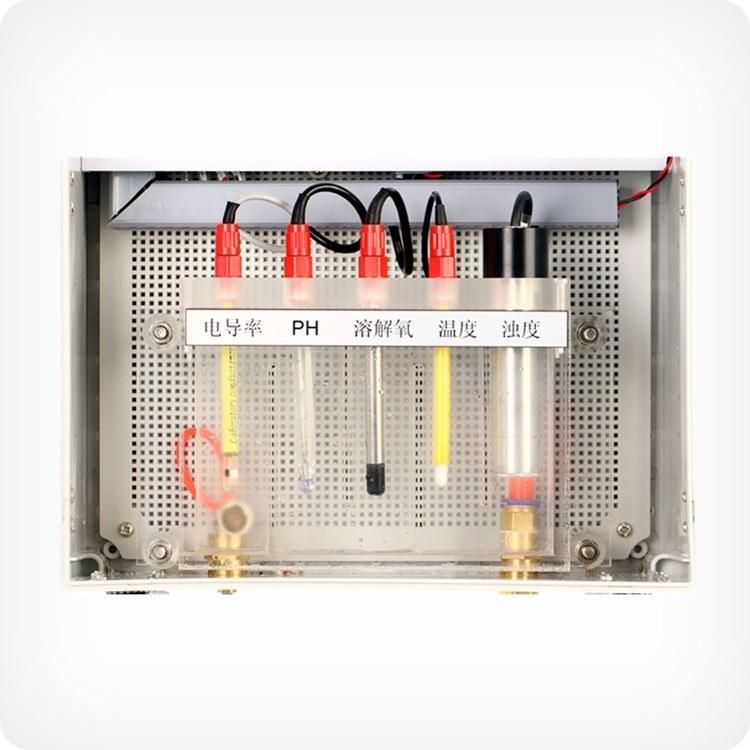

13.Conductivity, temperature, Dissolved oxygen, pH, Turbidity and Chlorine value in the screen display, switch to display the other data.
14. Current isolated output: each parameter independently 4 ~ 20mA ( load <750Ω)
15. Power : AC220V ± 22V, 50Hz ± 1Hz, can be equipped with DC24V

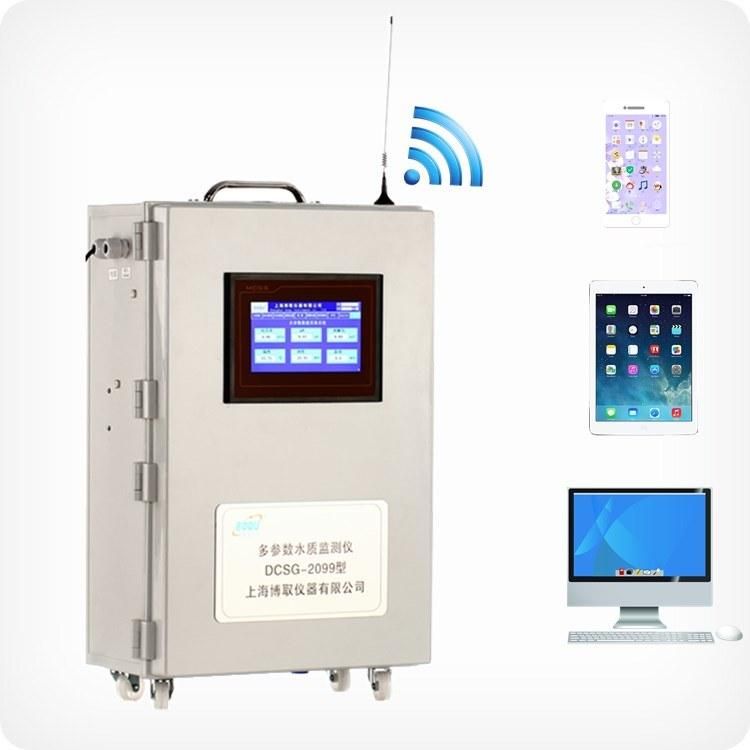

16. RS485 communication interface ( optional ) ( ) with "√" indicating output
17. Protection: IP65
18. The working conditions : ambient temperature 0 ~ 60 °C, relative humidity ≤ 90 %
19. The entire instrument Weight : 4.0 kg
