• Model NO.：Phg-2091
• Product Name：Online pH Meter
• Power Supply：AC220V+,-10% 50Hz
• Protection Grade：IP65
• Installation：Flushbonading Type
• Transport Package：Carton
• Trademark：Boqu
• Origin：Shanghai
• HS Code：9027809900
• Production Capacity：500sets,Week

Basic Info.

Model NO. Phg-2091 Product Name Online pH Meter Power Supply AC220V+/-10% 50Hz Protection Grade IP65 Installation Flushbonading Type Transport Package Carton Trademark Boqu Origin Shanghai HS Code 9027809900 Production Capacity 500sets/Week

Product Description

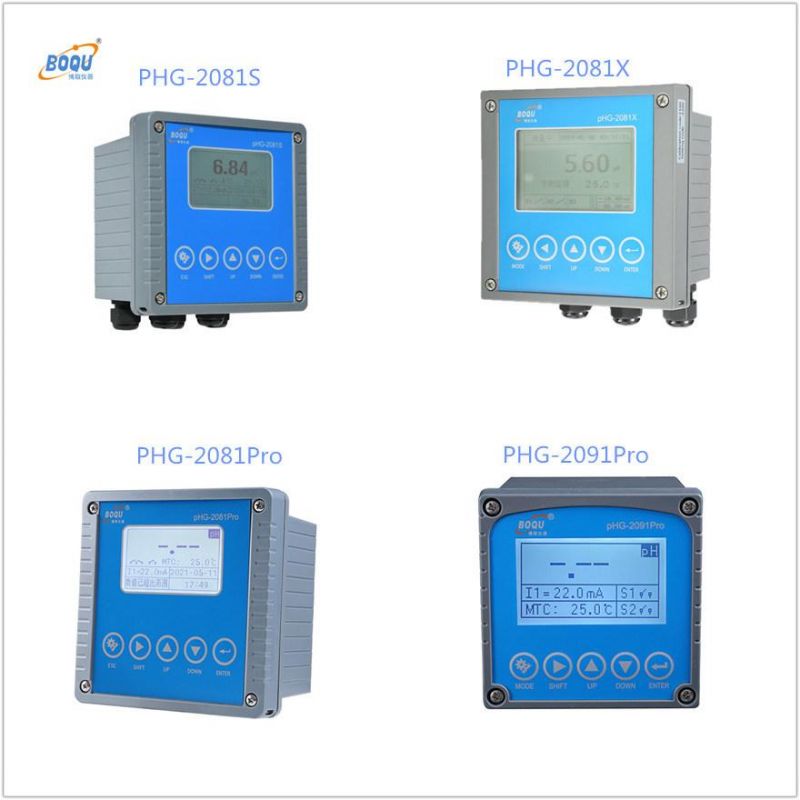

                      PHG-2091 Industrial PH Meter

PHG-2091 industrial online PH meter is precision meter for measurement of PH value of solution. With complete
functions, stable performance, simple operation and other advantages, they are optimal instruments for industrial
measurement and control of PH value. Various PH electrodes can be used in PHG-2091 industrial online PH meter.

Features

LCD display, high-performance CPU chip, high-precision AD conversion technology and SMT chip technology,

Multi-parameter, temperature compensation, high precision and repeatability

US TI chips; 96 x 96 world-class shell; world-famous brands for 90% parts

The current output and alarm relay adopt optoelectronic isolating technology, strong interference immunity and

the capacity of long-distance transmission.

Isolated alarming signal output, discretionary setting of upper and lower thresholds for alarming, and lagged

cancellation of alarming.

High-performance operational amplifier, low temperature drift; high stability and accuracy.

Technical Indexes

1. Measuring range: 0~14.00pH,  Resolution:0.01pH

2. Precision:0.05pH,±0.3ºC

3. Stability:≤0.05pH/24h

4.Automatic temperature compensation: 0~100ºC(pH)

5.Manual temperature compensation:0~80ºC(pH)

6. Output signal: 4-20mA isolated protection output, dual current output

7. Communication interface:RS485(optional)

8. Control interface: ON/OFF relay output contact

9.Relay load: Maximum 240V 5A; Maximum l l5V 10A

10. Relay delay: Adjustable

11.Current output load:Max.750Ω

12. Insulation resistance:≥20M

13. Power supply: AC220V ±22V, 50Hz ±1Hz

14. Overall dimension: 96(length)x96(width)x110(depth)mm;dimension of the hole: 92x92mm

15. Weight: 0.6kg

16. Working condition: ambient temperature:0~60ºC, air relative humidity:≤90%

Except for the earth magnetic field, there is no interference of other strong magnetic field around.

Standard configuration

One secondary meter, the mounting sheath of immerged (selection), one PH electrode, three packs of standard
