• Model NO.：AP-BD
• Product Name：2 in 1 Portable Digital Ethylene Co Gas Analyzer
• Gas Test：Carbon Monoxide, Ethylene
• Detect Principle：Electrochemistry
• Test Numbers：2 Species
• Test Range：0-200ppm (Carbon Monoxide), 0-20ppm (Ethylene)
• Work Life：2years
• Response Time：T90 <20s
• Wake-up Time：1min
• Gas Flow：250-350ml , Min
• Sampling Method：Pump Type
• Transport Package：Carton Box
• Specification：10kg
• Trademark：NANBEI
• Origin：Zhengzhou, China
• HS Code：9027100090
• Production Capacity：500sets a Month

Basic Info.

Model NO. AP-BD Product Name 2 in 1 Portable Digital Ethylene Co Gas Analyzer Gas Test Carbon Monoxide, Ethylene Detect Principle Electrochemistry Test Numbers 2 Species Test Range 0-200ppm (Carbon Monoxide), 0-20ppm (Ethylene) Work Life 2years Response Time T90 <20s Wake-up Time 1min Gas Flow 250-350ml / Min Sampling Method Pump Type Transport Package Carton Box Specification 10kg Trademark NANBEI Origin Zhengzhou, China HS Code 9027100090 Production Capacity 500sets a Month

Product Description

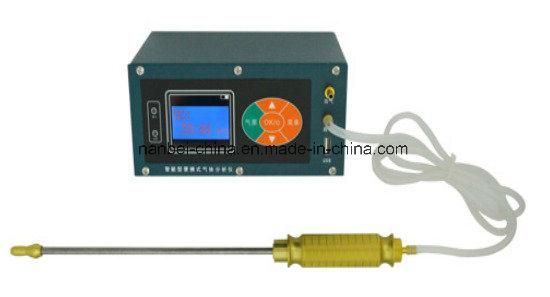

2 in 1 portable digital  Ethylene CO gas analyzer
Product introduction:
Industrial combustible gases and toxic gases leaked portable compound testing equipmentCan detect two, three, four different gas concentrationsColor screen LCD displayDetection of data storage function (can store 300,000 data) - can be directly connected to the computer print results.Built-in 6000MA high-capacity battery, boot for more than 60 hours.High precision measurement, good stability, fast response, good repeatability.Integral pump samplingNational intrinsically safe certification.Anti-skid design multi-level correction, to ensure that the instrument's high precision, high stability
AP-BD series of Hand held composite detector parameters

Performance:
Detection of gas: carbon monoxide, ethylene
Principle of detection: electrochemistry
Number of tests: 2 species
Detection range: 0-200ppm (carbon monoxide), 0-20ppm (ethylene)
Life: 2 years
Accuracy: ≤ ± 2% FS
Repeatability: ≤ ± 2% FS
Response time: T90 <20S
 Warm-up time: 1min
Display: large screen LCD display
Alarm mode: buzzer: 75 dB LED warning light: 20 meters visible
Alarm error: ≤ ± 3% Alarm set value

Sampling method:
Sampling method: pump type
Sampling flow: 250-350ml / min

Electrical characteristics
Battery capacity: built-in 6000mA lithium battery, with charging protection
Battery voltage: 3.7V
Working hours: 60 hours of continuous working hours
Charging time: <4 hours
Storage:> 300,000
Storage frequency: 1S / time, 10S / times, 60S / times
Data Interface: USB

Structural characteristics:
Main material: iron metal
Size: 180 * 112 * 81mm
Handle: 30cm
Pump suction pipe: 1m standard), 20m (tracheal without bending) (maximum length)
Weight: 450g
Protection class: IP65

Use environment:
Temperature range: -20 ºC ~ 50 ºC
Humidity range: 10 ~ 95% RH (no condensation)
Pressure range: 86KPa ~ 106KPa

Application areas:
Petroleum, petrochemical, metallurgical, chemical, environmental protection, paper, electricity, animal husbandry, preservation
Printing and dyeing, municipal, scientific research, education, national defense, fire, pharmaceutical, coal mine, disinfection

FAQ

1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2. Does your price is competitive?
Dear customer, we make sure to offer you the best quality with competitive price.
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union…
4. When I receive it after pay?
Dear customer, normal models can be delivered with 5-7days, please contact us to check transport time to your address.
5. How to deliver?
Dear customer, we can send by Express, by Sea and by Air.
6. Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
7. What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
8. What should I do if some parts broken?
Dear customer, please do not worry, we have 12months warranty except  wear parts. You can also buy parts from us after 12months.

Company Show:


Factory Show:

Professional laboratory instrument manufacturer with 11 years of experience.
Export experience has been 8 years.
Shipping : 5days by courier,door to door service



Certification:
The company has passed various international authoritative certifications such as SGS, CE, ISO.

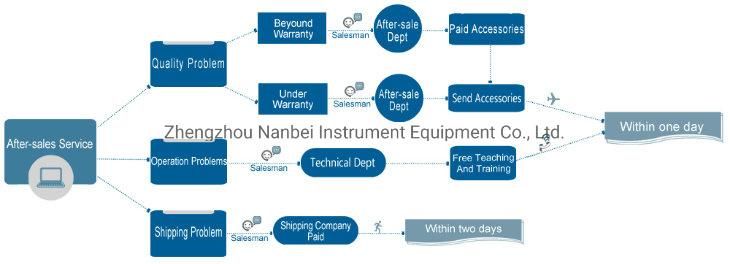

Warranty And After-sale Service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥
